31
1. When new belts are installed, they should be inspected and re-tensioned after the first forty-eight (48)
hours of operation.
2. When performing any maintenance on the power transmission belts, always start with the belt on
the Blade Guard side.

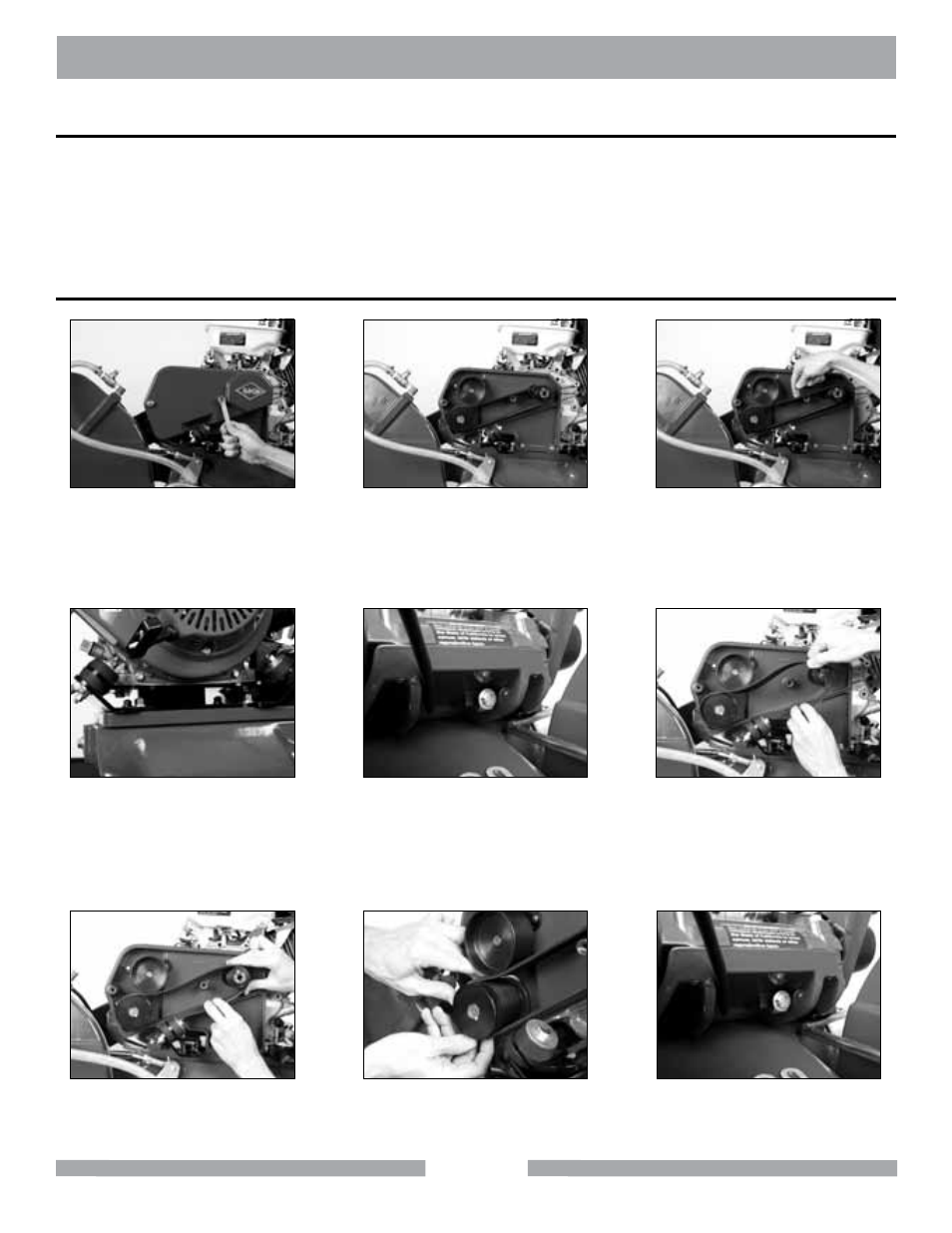

Belt Inspection, Replacement and Adjustment
NOTE:
Engine Belt
The MK-5000G is designed with two belts. The two belts are a matched set and should be inspected, adjusted and/or
replaced at the same time.
(A)
Remove the Belt Guard
Retaining Bolts.
(B)
Inspect the belt for cracks,
fraying, separation and wear. Go
to step D if replacement required
(C)
Check Belt for proper tension. If
tension is correct, go to step K
check tension 1/2-way between pul-
leys (proper tension 1/8" deflection)
(D)
Loosen the four engine bolts
mounting plate. If re-tensioning,
go to step I.
(E)
Loosen Engine Adjustment
Strap Bolt push the Engine Mounting
Plate toward the front of the saw to
loosen the belt
(F)
Remove the belt
(G)
Install the new belt
(H)
Verify the belt is seated in the
grooves of both pulleys
(I)
Tighten the Engine Adjustment
Strap Bolt to remove slack
MK-5000G MAINTENANCE
