26
(G)

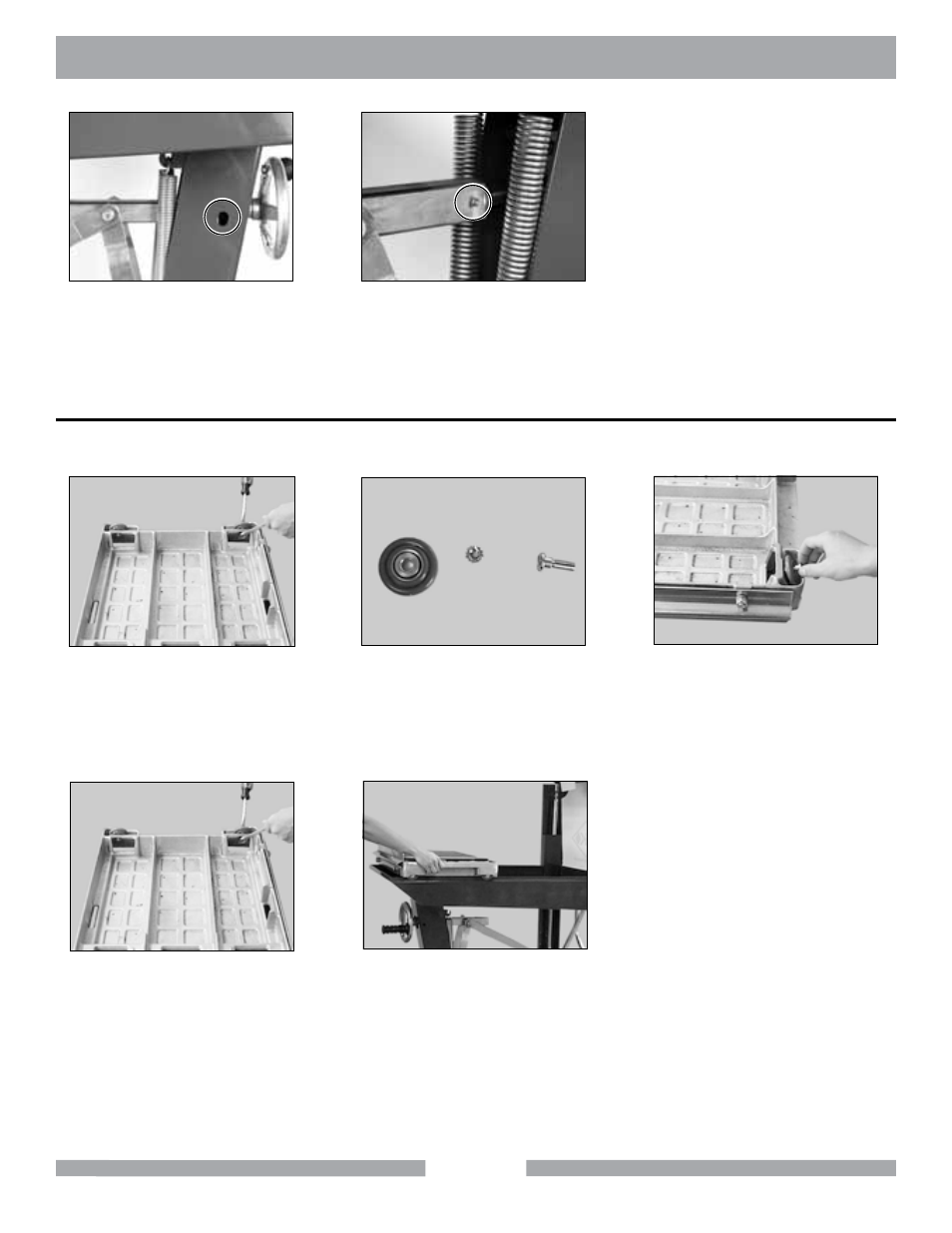

Crank Wheel Assembly Bearing
lubrication point
(H)
Depth Control Screw Housing
lubrication point
Movable Cutting Table Roller Wheels should be replaced at the same time.
When installing the Retaining Bolt, do not “cross-thread” and DO NOT over tighten the Nut.
(B)
Obtain Wheel replacement
parts (See parts list)
(C)
Install Wheel/Washer Assembly
into Movable Cutting Table
(D)
Install Roller Wheel
Retaining Nut and tighten.
Rotate clockwise to tighten
(A)
Remove Roller Wheels. Rotate
counter-clockwise to loosen
Movable Cutting Table Wheel Change Out
NOTE:
NOTE:
(E)
Install Movable Cutting Table
MK-5000G MAINTENANCE
