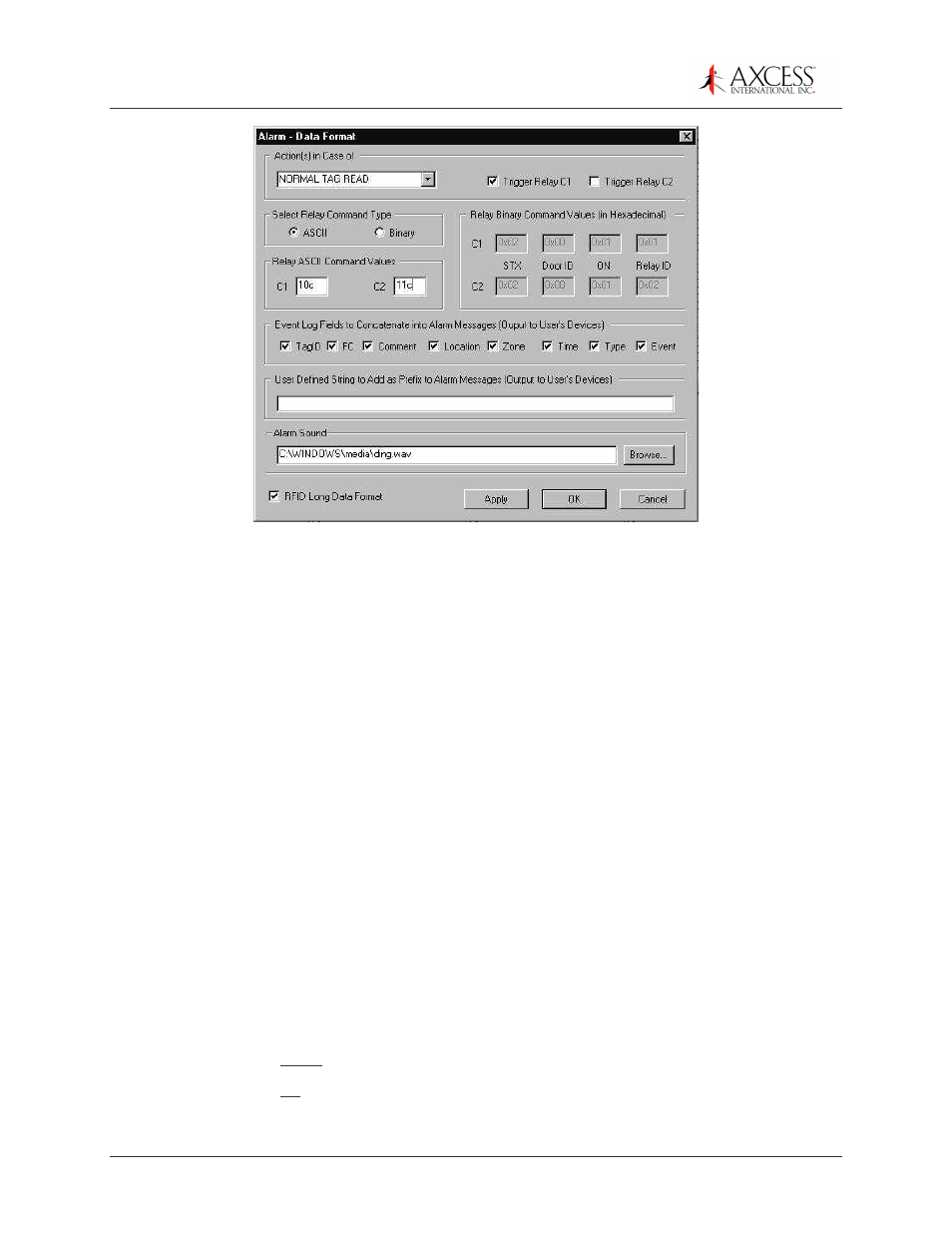

Figure 13 Setting up alarms and relays

From the

Action

drop-down list, select the type of event that should cause an alarm

condition.

•

Normal Tag Read

– indicates a tag has passed through a RF field and

broadcasted it identification information to a receiver.

•

Panic Tag Read

– indicates an alarm code has been transmitted from a tag in

which the panic button on the tag has been depressed.

•

Tamper Tag Read

– indicates a tamper alarm has been transmitted from a tag in

which tampering or removal has taken place.

•

Asset Movement Alarm

– indicates an asset has been read without the

authorized owner within the specified time window.

•

Cabinet Open

– indicates a Door Open beacon has been transmitted from a tag

in which an external sensor detected the opening of the door.

Select ASCII for the Relay Command Type.

Verify that the ASCII command values are the following:

10c

for C1 and

11c

for C2

located at the top right.

Select the TTL output, if any, that you want to trigger by selecting Trigger Relay C1

and/or Trigger Relay C2 check boxes located at the top right

Select the check boxes by the information you want written to the log file in the Event

Log Fields.

•

TagID – tag ID number

•

FC – Facility Code
