6

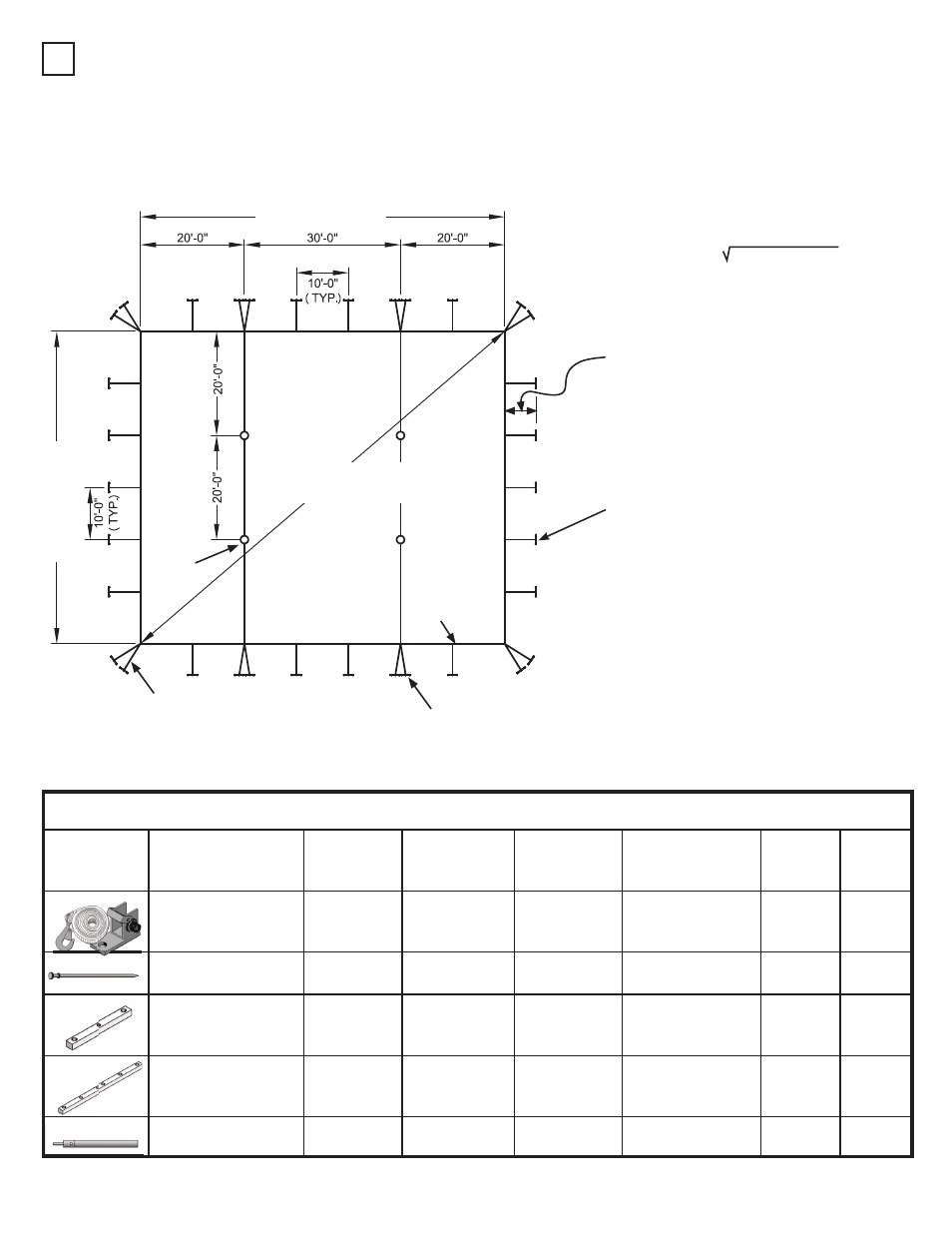

1 WEB GUY LAYOUT*
Square End - Sample Layout
MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES
CENTER
POLE
(TYP)
LOOP SIDE
END
SECTION
SIDE POLE
(TYP)
MIDDLE
SECTION
HOLE SIDE
END
SECTION
LAYOUT SHOWS 20’ ENDS AND 30’ MID.
30’ ENDS AND 20’ MIDS USE IDENTICAL SPACING AND STAKING. SEE TABLE BELOW.
REQUIRED DISTANCE BETWEEN
SIDE POLES AND STAKE LINES:
7’ POLE STAKE OUT 5’-3”
8’ POLE STAKE OUT 6’-0”
10’ POLE STAKE OUT 7’-6”
Staking Table
Illustration Item No. Description
Qty. for
60’ x 40’
(2) 20’ Ends
Qty. for
60’ x 60’
(2) 30’ Ends
Qty. for
60’ x 40’
(2) Round Ends
Qty. for
20’ Mid Qty. for
30’ Mid
23000
Cen-
tury Guy w/
Winch
26 30 26 6 8
37020A
3704242 (over 25)
42” Double
Hd. Stake
78* 90* 78* 18* 24*
33000
2’-0” Stake
Bar w/ (3)
Holes
22 26 22 2 4
33100
4’-0” Stake
Bar w/ (6)
Holes
2 2 2 2 2
23100 Winch Tool 2 2 2 1 1
** 92’-2 3/8”
USE DIAGONAL DIMENSION
TO SQUARE LAYOUT
60’-0” TENT LINE
70’-0’ TENT LINE
(2) WEB GUYS WITH 4’ STAKE
BAR AND (6) 42” DBL. HEAD STAKE
(TYP. AS SHOWN)
WEB GUY WITH 2’ STAKE BAR AND
(3) 42” STAKES (TYP. AS SHOWN)
** To find diagonal measurement:
diagonal = width² + length²
(2) WEB GUYS WITH
(2) 2’ STAKE BARS
AND (6) STAKES

