Anchor CENTURY 60 WIDE - Manual (Page 13)

13
In addition to step #3
(see page 10), align plates
and attach bolt, washers
and eye nut.
Hook is not used at this
location. Use web guys
(as shown in Step 1a),
center plate and
eye nut to tie off at this
location.
WINCH FOR TENSION
Use winches at center section lace where
proper tension is needed for correct tie
down and wrinkle free structure.
Auger cable straight down into ground.
USE CAUTION WHEN OPERATING
WINCH.

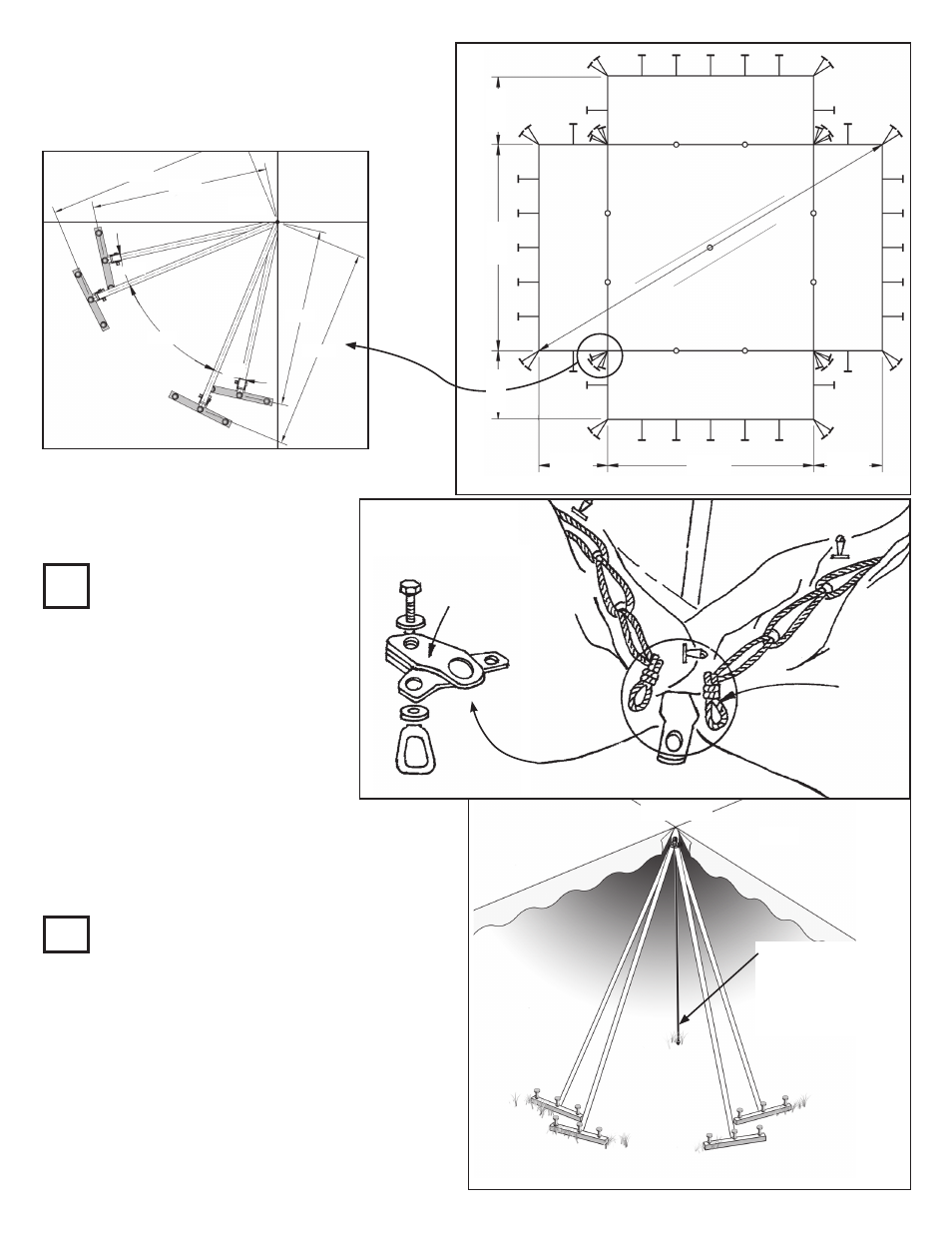

3a LACING
INSTRUCTIONS
8a
CENTER
PLATE
LAST
LACING
LOOP
TIED
CENTER
END
END
40’
END
LOOP
SIDE
CENTER
END
END
CABLE FASTENED
TO EYENUT
UNDER TENT AND
AUGERED INTO
GROUND.
5’-3”
6’-0”
6’-0”
5’-3”
45º
10º
10º
60’-0”
60’ END
LOOP SIDE
60’ END
HOLE SIDE
60’
END
LOOP
SIDE
TO SQUARE LA
YOUT
USE DIAGONAL MEASUREM
ENT
60’-0” 20’-0” 20’-0”
60’ x 60’
CENTER
60’
END
HOLE
SIDE
END
END
60 x 60
Center
(4) 2’ STAKE
BARS
20’-0”
20’-0”
Stakes with bars shown only for illustrative purposes.
See Step 1a for correct staking layout.
* *
* *
*
