Anchor CENTURY 60 WIDE - Manual (Page 10)

10

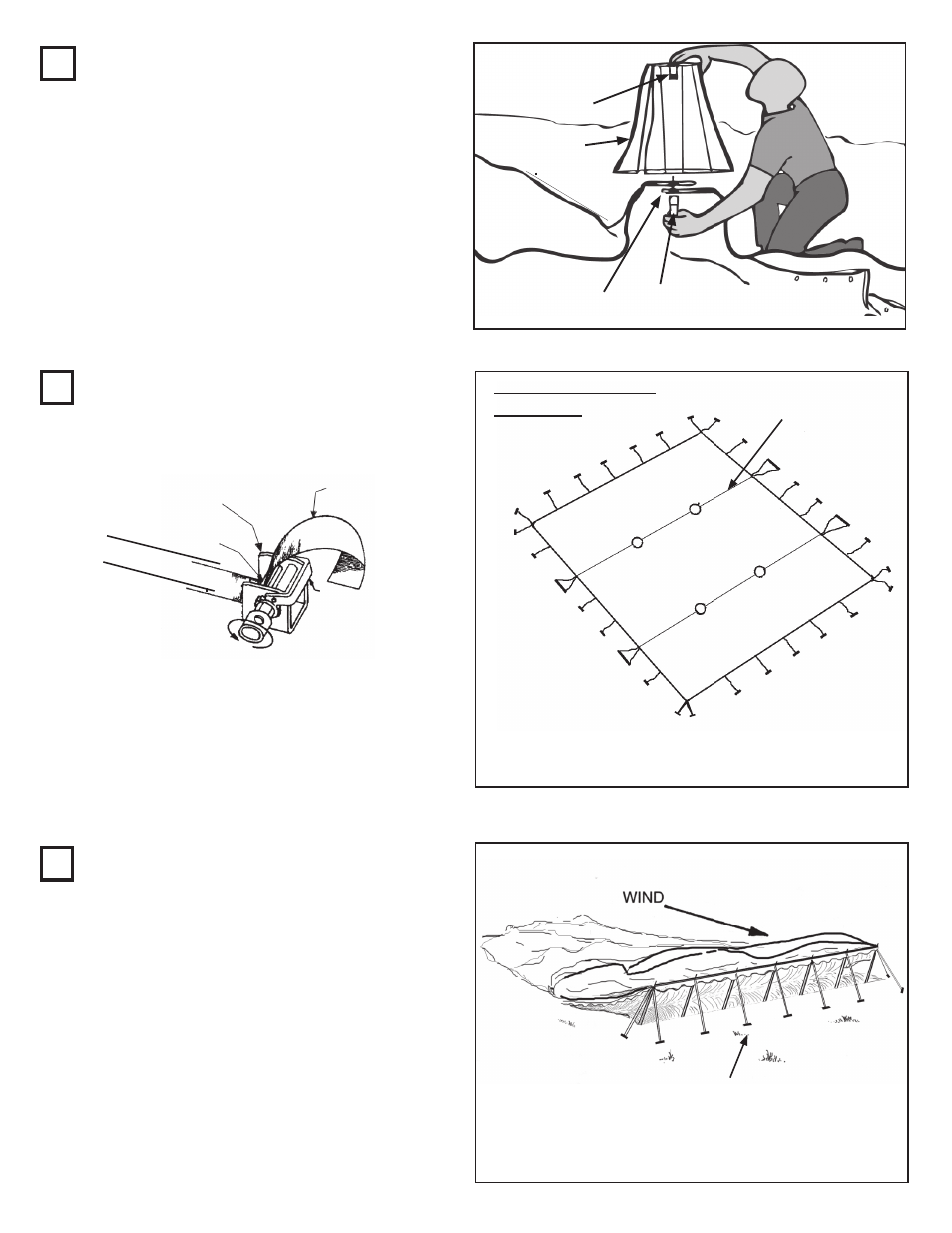

TIE DOWN AFTER LACING
After lacing and snapping sections, attach guys
and insert loosely into tension
winches.
Insert guy web into slot in winch drum and
rotate 1 1/2 to 2 times to secure web.
WEB
RELEASE
(Push Downward)
Winch
Drum
Guy Web
RAISE SIDE POLES
Start at downwind side. Insert each side
pole pin into side pole hole and raise
slightly less than perpendicular.
Bottom of each pole should be pointed
inward toward center of tent.
Wall ropes should run outside of corner
poles and side poles.
Tie jump rope around each side pole as it
is inserted in pole hole.
Continue around tent.
5
6
SIDE POLES INSTALLED
ON DOWNWIND SIDE
WEBS ATTACHED
LOOSELY
LACE
POLE CAP (Optional)
Overlap the pole hole plates in the mid and end
fabric lace line. Push fabric and plates up into
cap and secure from underneath by threading
the female, flanged pipe coupling onto the male
pipe fitting molded to the inside top of the pole
cap.
4
POLE CAP
MOLDED CAP W/
MALE THREADED
PIPE FITTING
MID
FABRIC
END
FABRIC
FEMALE PIPE
COUPLING (FLANGED)
POLE PLATES
(OVERLAPPED)
LACE
LINE
SEE WEB GUY LAYOUTS FOR
STAKING CONFIGURATIONS.
