5

PARTS

QUANTITY PER SECTION

20’ END SQUARE

OR ROUND (PAIR)

30’ END (PAIR)

20’ MIDDLE

30’ MIDDLE

BAG WITH FABRIC SECTION

2

2

1

1

CENTER POLE

2

2

2

2

SIDE POLE

20

24

4

6

POLE CAP (OPTIONAL)

2

2

2

2

SEE WEB GUY LAYOUTS & STAKING TABLES FOR STAKING REQUIREMENTS.

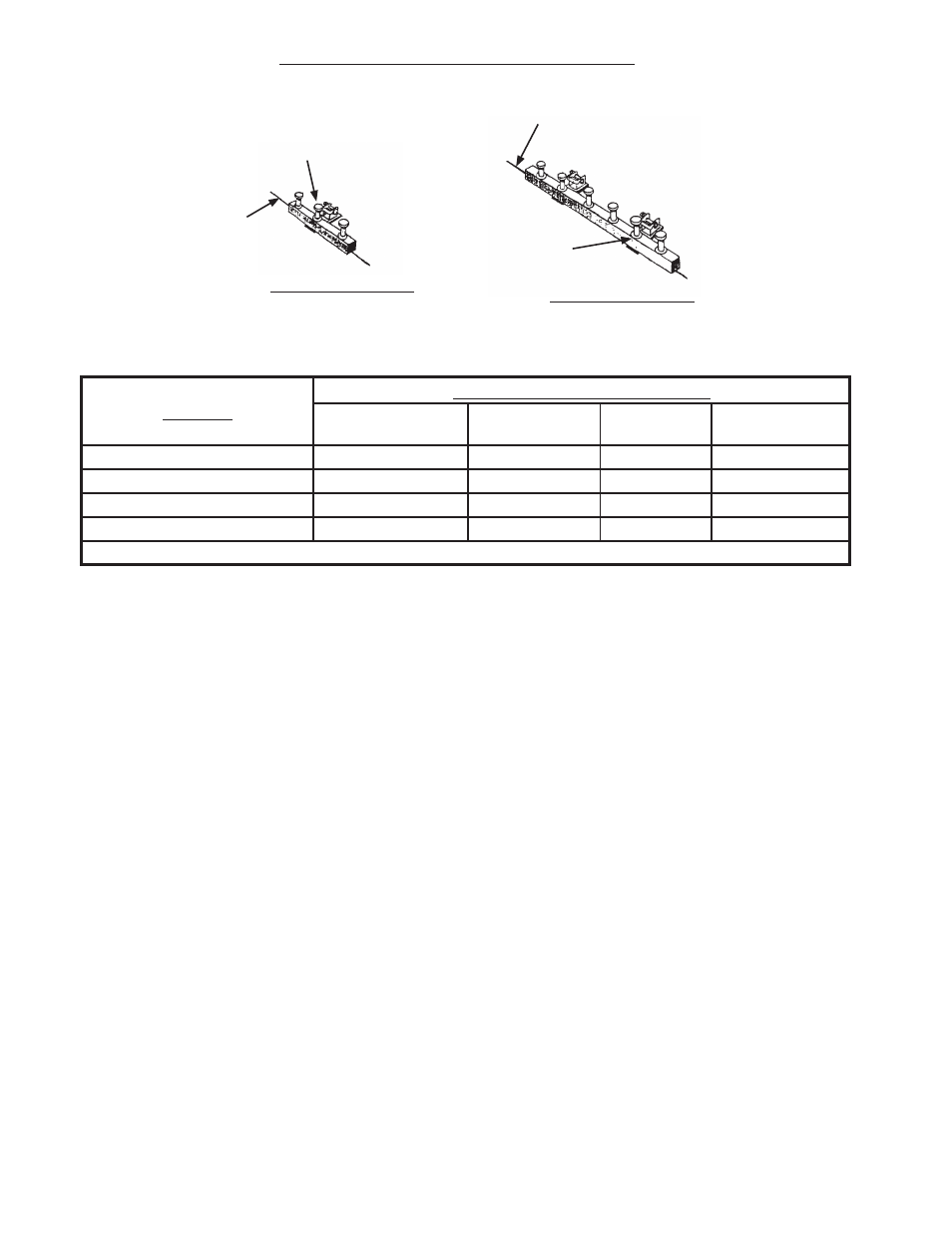

Stake driven through
hole in bar and winch
plate

Stake line

Stake line

4’ STAKE BAR

2’ STAKE BAR

Stake driven through
hole in bar and
winch plate

Parts Illustrations continued

For 30’ Ends only
4” Schedule 40 Pipe Centerpole for up to & including 8’-0” Side Pole Height.
6” Schedule 40 Pipe Centerpole with Pole Adapter for OVER 8’-0” Side Pole Height. See
page 7 for adapter installation detail.

*

*
