Step 11 Secure Tent
Make certain that tent is positioned in the desired location. Drive
a 1” x 30” stake through each base plate.

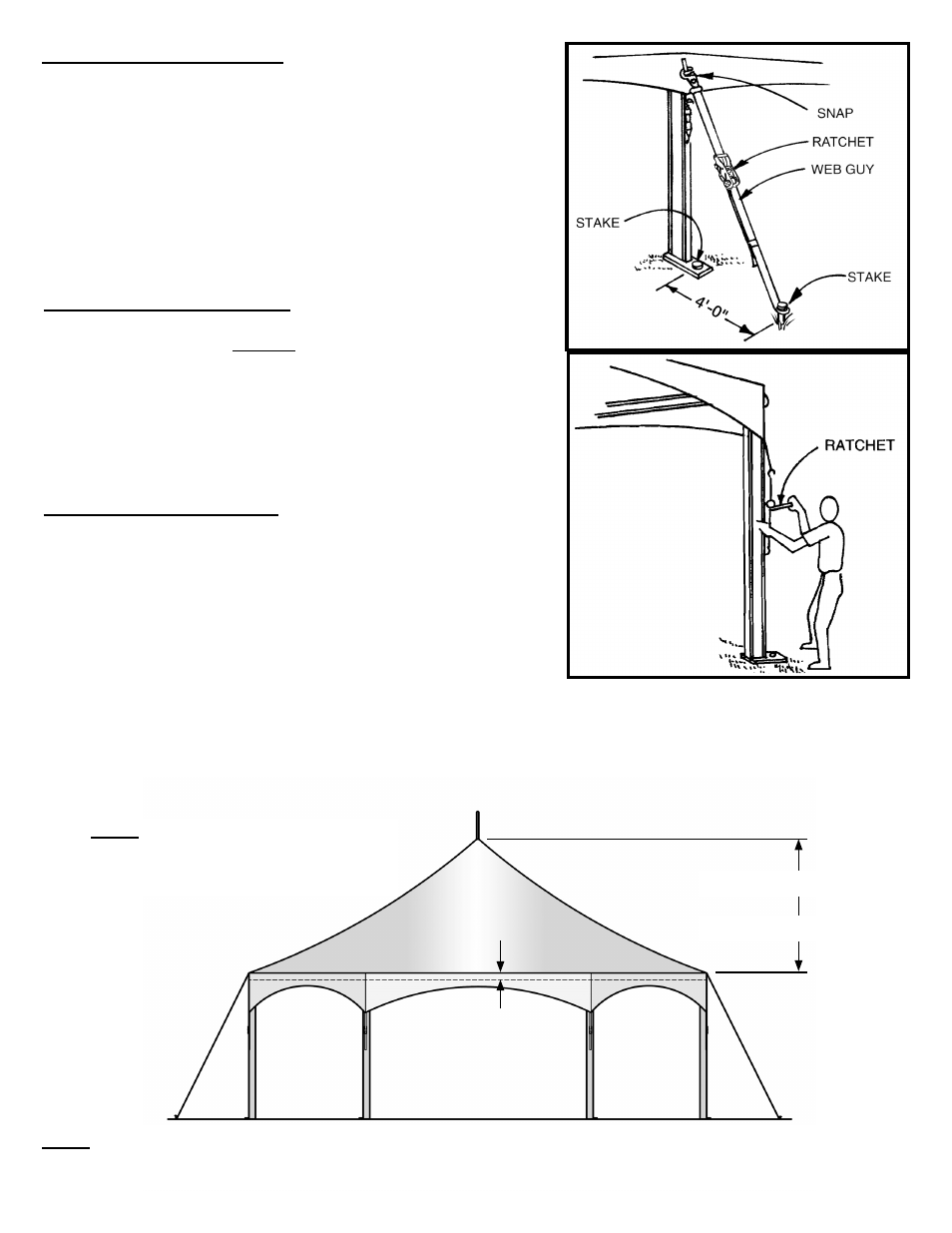

Drive a 1” x 30” stake through the ring at bottom of web guy. See
Figure 9 for positioning of stake.
Tension web guy.
Proceed around tent until all web guys are tensioned. See guy
web operating instructions provided.
IMPORTANT NOTE: PLEASE REFER TO CAUTION AND
OTHER ANCHORING INFORMATION ON BACK PAGE.
Figure 9
Step 12 Tension Top
A firmly tensioned top is required for proper installation.
Pull fabric tightly and smoothly to minimize water pool-
ing, wind damage, fabric shifting. Use ratchets on ten-
sion straps to tension the top (See Step 6).
Now tighten all eight of the fiesta straps spaced between
the uprights (See Step 10).
Step 13 Take Down
1. Remove guy webs and stakes.
2. Loosen tension straps.
3. Reverse installation steps.
IMPORTANT:
Check web guys and tension straps periodically for tight-
ness and good condition.
Store tent in a cool, dry area. Never store while wet or
damp.
30’ Hex - 11’-5 Minimum
20’ Hex - 6’-8 Minimum
3” Approximately
Note:
The center of the fabric eaves should be
approximately 3” below the frame eaves
when properly tensioned.
Note:
Tensioning of top can change from installation to installation. Cable stretch, fabric shrinkage or elongation and other
factors can require a different amount of tension to center pole.
