Corner
Weldment

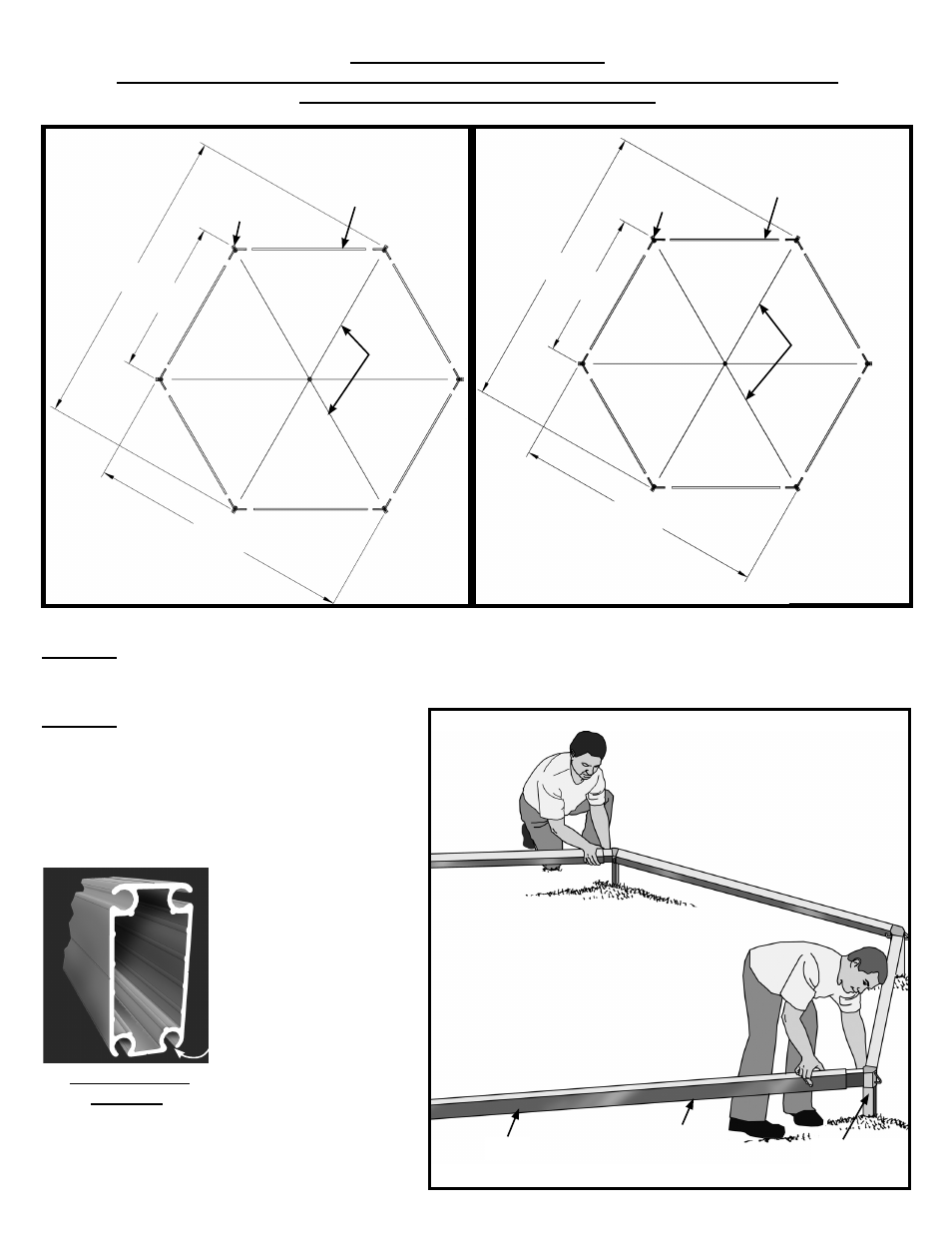

20’ Hexagon Lay Out 30’ Hexagon Lay Out
10’ Eave
Cable
Corner
Weldment
15’ Eave
Cable
20’
Approximately
10’
Approximately
17’ Approximately
30’
Approximately
15’
Approximately
25’ Approximately
Step 1
Lay out parts for assembly as shown in the diagrams above.
Step 2
Join ends of eaves to corner weldments.
Wall Hangs in Bottom
Outside Channel.
Century Frame
Extrusion
Wall Channel on
Bottom outside of
beam.
Corner
Weldment Eave
Figure 2
3
Caution! Inspect Site
Consult local Utility Company prior to installation. Prior to assembly be sure to look
around area for obstacles, pipes, wires, etc.
