Guy Web
Tension Strap
Cable
Center Pole
10’ Eave

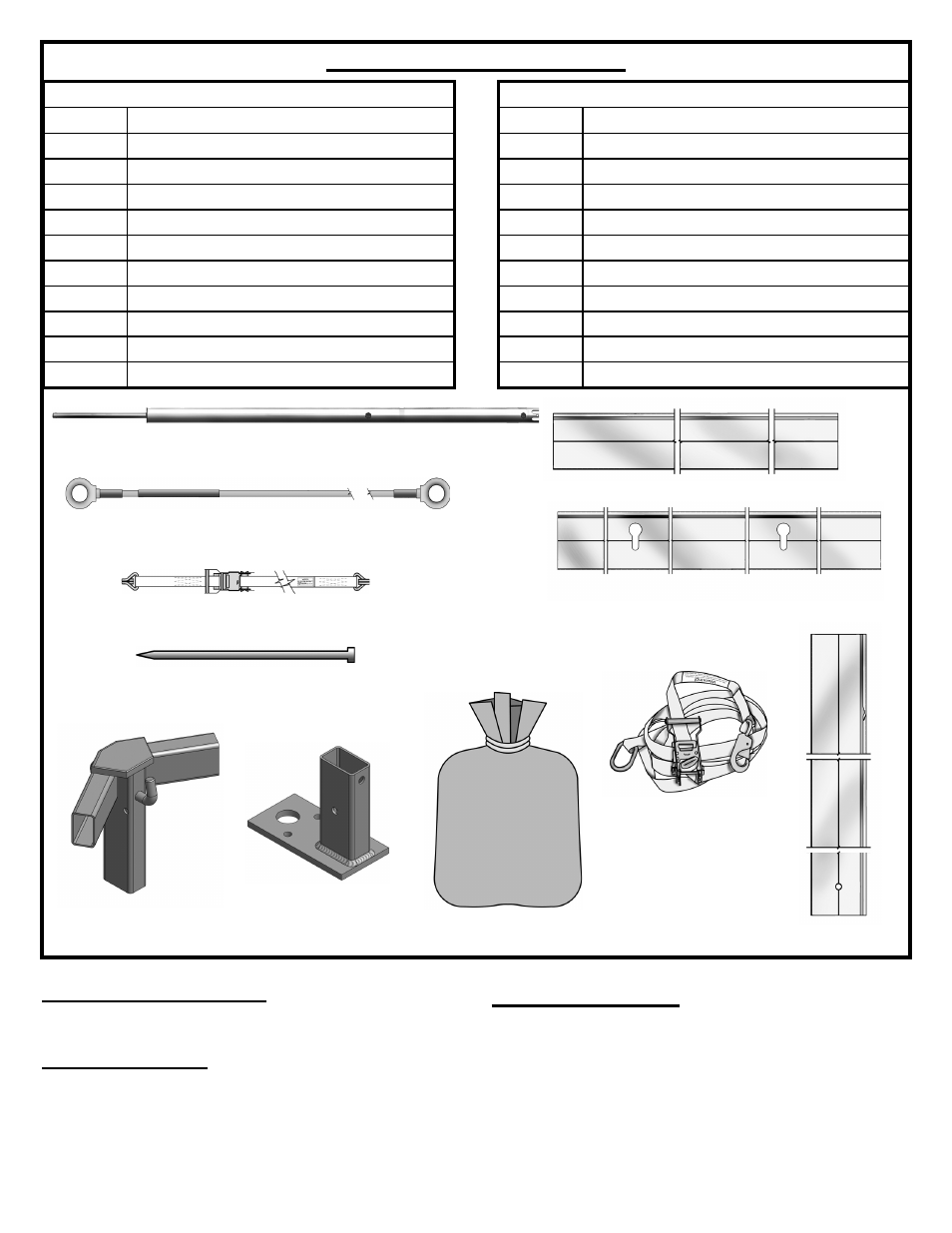

Parts Lists & Illustrations
Stake
Upright
15’ Eave
Base Plate Bag with Top
20’ Hex Parts Table
Quantity Description
1 Center Pole
3 Cables
6 Tension Straps
6 10’ Eaves
6 Uprights
6 Base Plates
6 Guy Webs
1 Bag with Top
6 Corner Weldments
6 Walls (10’ - 2 pc. -- optional)
30’ Hex Parts Table
Quantity Description
1 Center Pole
3 Cables
6 Tension Straps
6 15’ Eaves
6 Uprights
6 Base Plates
6 Guy Webs
1 Bag with Top
6 Corner Weldments
6 Walls (15’ - 2 pc. -- optional)
Corner Weldment
Manpower Required
Three experienced installers should be able to assemble a
tent in less than forty-fi ve minutes.
Tools Required
Sledge Hammer
4’ Step Ladder
(2) 9/16” Wrenches
(2) Fiesta Frame Lifts; optional but recommended.
Layout & Check
Utilize the parts list for a quick I.D. and a check list to
ensure that you have all the parts.
