1 Getting Started
1.1 What is in the box?
Check out the contents of the box your phone came in. You should have:
• Allworx 9202 phone
• Power supply
• Handset with cord
• Phone Functions Reference Card
Not included, but also needed:
• Ethernet cable to connect the phone to the network
1.2 Connecting the Phone

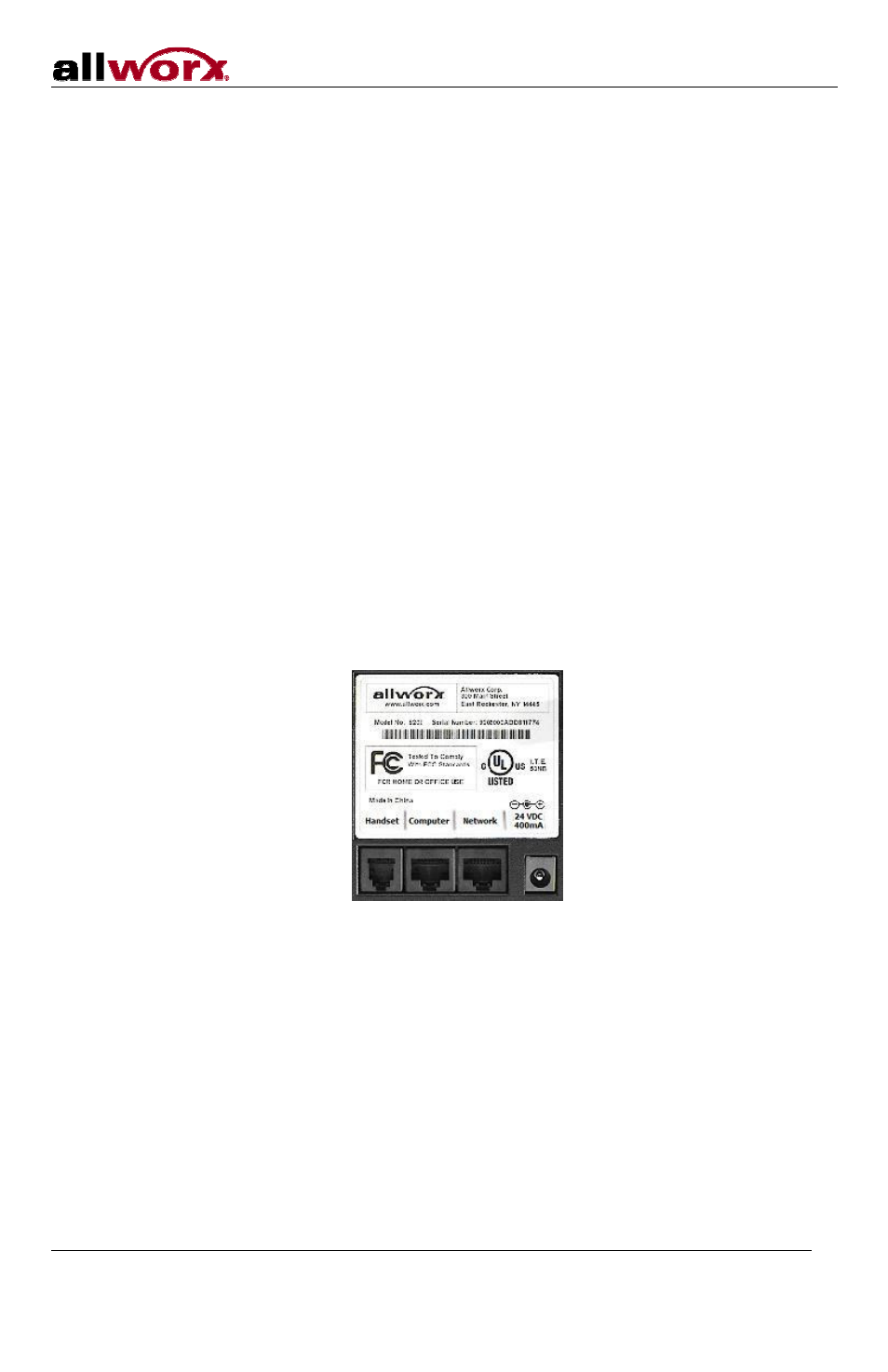

We have taken all the challenge out of connecting your phone properly. Follow these steps to connect (see the
figure below):
1. Connect the handset to the Handset jack on the back of the phone using the coiled handset cord.
2. Plug one end of the Ethernet cable into the Network jack on the back of the phone. Plug the other end
into your Ethernet jack on the wall.
WARNING: Do not connect to an analog phone line.
3. A computer may be connected to the network through the phone’s Computer jack.
4. Connect the power cable into the phone, and then plug the other end into an outlet. It’s a good idea to
use a surge protector.
5. Thread cables through the strain relief guide.
6. After applying power, the phone will initialize itself. You can watch its progress on the phone’s screen.
A normal sequence would include:
a. Allworx Logo.
b. Starting network.
c. Loading configuration files.
d. Station Init complete.
e. After successful startup, the phone will display date, time, your presence, your name, and
extension.
f. If the phone does not follow this sequence or displays an error, contact your System
Administrator.
