Allen & Heath 26 XONE:2D User Guide

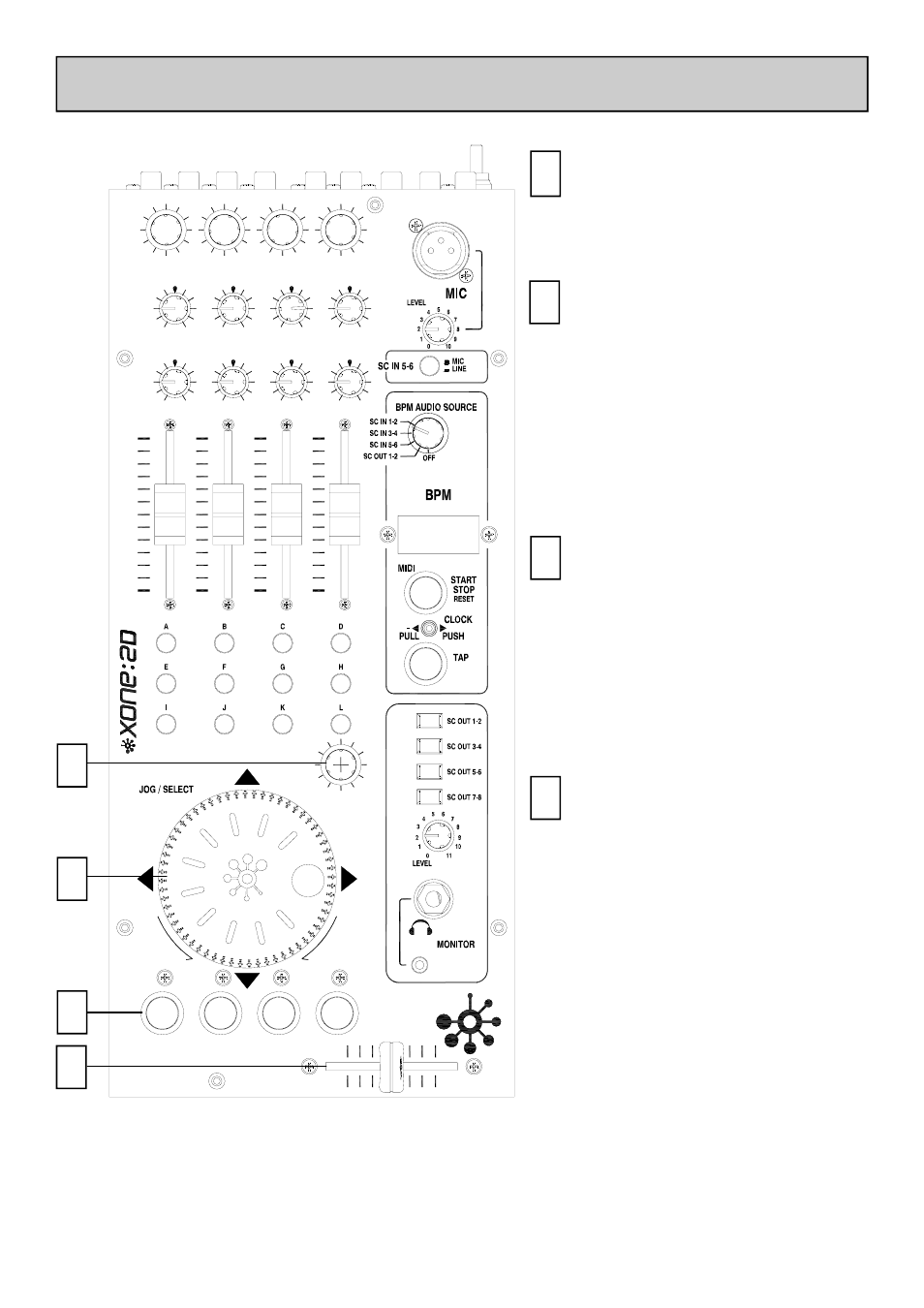

Rotary Encoder
A rotary encoder with
switch, as previously de-
scribed.
5
Jog Wheel
The jog wheel features an
optical encoder, which
produces CC messages in a
similar way to the other
encoders. Switches are
located at the top, bottom,
left and right of the wheel.
Pushing down on the face of
the wheel sends ‘Note On’ /
‘Note Off’ messages.
6
Illuminated Push Buttons
Momentary action switches
with red light ring indicators.
Control of these indicators
depends upon system setup.
Please refer to MIDI MAP
A N D L I G H T P I P E
SETUP (p13).
7
+
MIDI CONTROLS
5
6
7
8
Cross Fader
Moving the cross-fader will
send a MIDI message with a
unique CC number and a
control value from 0 (fully
left) to 127 (fully right).
8
