3.7.3 WAN and LAN Settings:
-1-
If you change the WAN port’s setting to Fix IP Mode, then you have to make sure the IP
address. Net Mask, Gateway, and DNS setting is suitable in your current network
environment
-2- The WAN port is DHCP Client mode, You can change the setting to Fixed IP or PPPoE Mode.
NOTE: WAN port IP address is in DHCP mode by default, please use #126# to hear WAN
port get IP address.
-3- If you change the WAN port’s setting to PPPoE Mode, you have to input a correct
username/password to get the IP address from your Internet Service Provider..
-4- The LAN port’s default IP address is 192.168.123.1, Net Mask is 255.255.255.0., and DHCP
Server enabled. The start IP address if 150, end IP adress is 200. It is not necessary to
change the LAN settings.
-5- You can connect your PC to the LAN port, set your PC as DHCP Client mode, then you can
get IP addreess from the ATA.
-6- When you have finished the setting, please click the Submit button.
-7- If no further changes are needed, please click the Save Change Item on the left side; then
click the Save button. The changes you have made will be saved and the system will reboot
automatically.

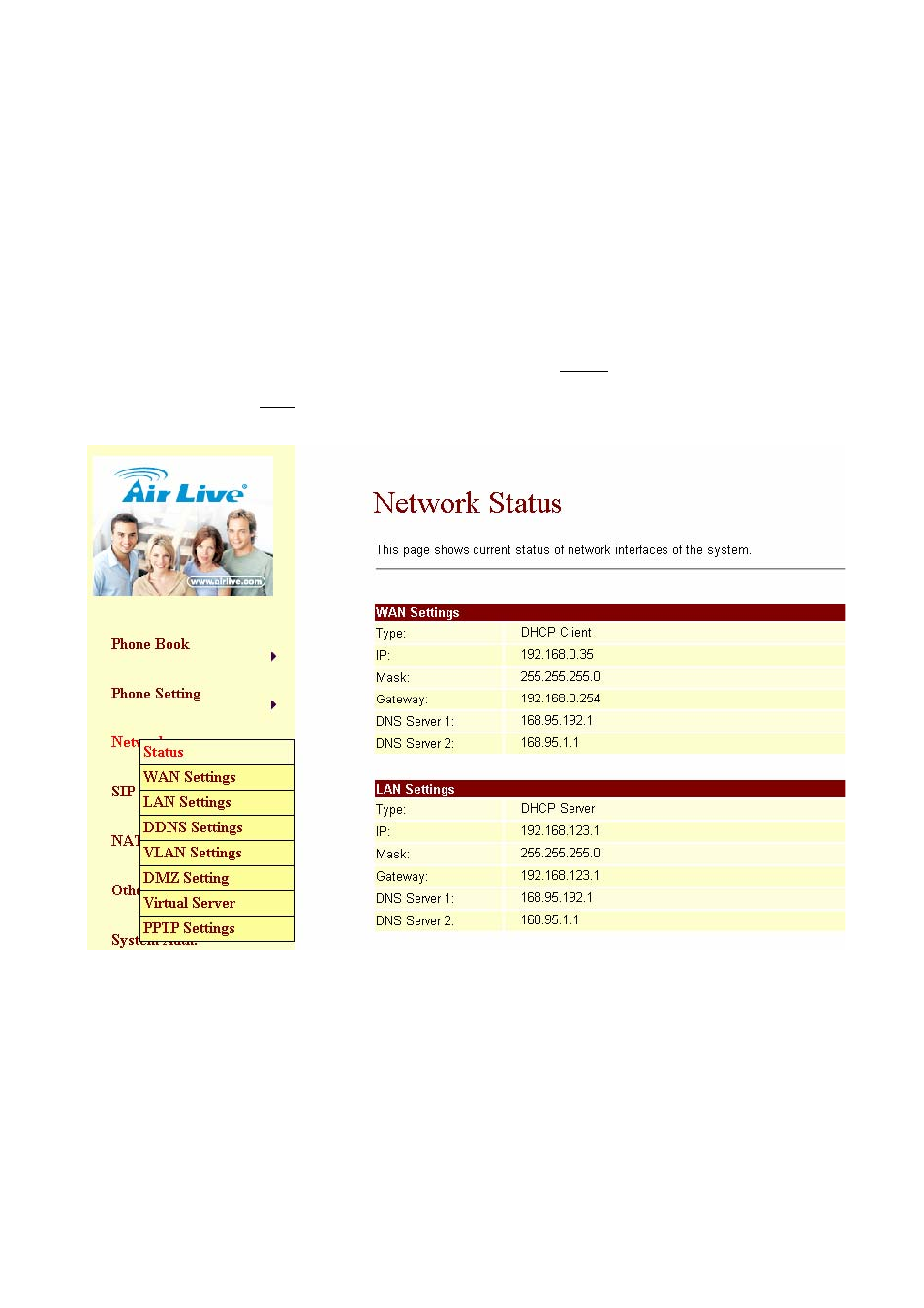

Figure 14. Network Settings
