3.1.3 If you change the setting in the Web Management interface, please remember to click the
“Submit” button in that page. After you finished the change of the setting, click the “Save”
function in the left sideand click the Save Button. When you have finished the setting,
please click the Reboot function in the left side, and click the Reboot button in that page.
After the system has restarted, all the settings can work properly.
3.2 System Information for the ATA.
3.2.1 When you login to the web page, you can see the ATA current system information like
firmware version, company, etc. in this page.
3.2.2 Also you can see the function lists on the left side. You can use the mouse to click the
function you want to set up.

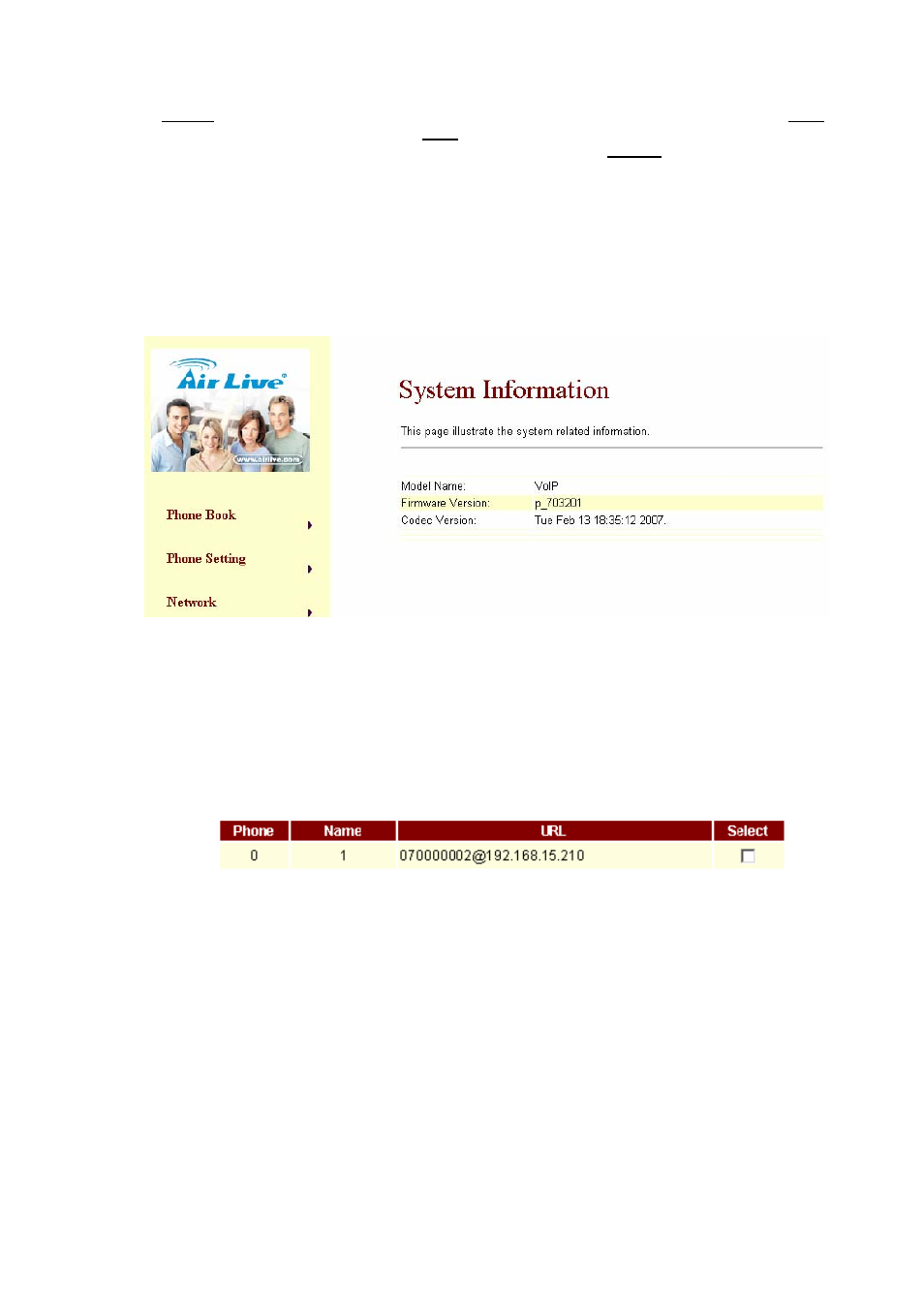

Figure 1. System Information
3.3 Phone Book
3.3.1 In Phone Book page contains (from page 1~14).
3.3.2 Phone : show serial number.
3.3.3 Name : setting other side telephone number
3.3.4 URL : other side IP address
Example:
When you dial 1# the device should search phone book,if search match number 1 will
send out “[email protected]”, if not got match number will send out 1.
-1- If you need to add a phone number into the phone book, you need to input the position, the
name, and the phone number (by URL type). When you finished a new phone list, just click
the “Add Phone” button.
-2- If you want to delete a phone number, you can select the phone number you want to delete
then click “Delete Selected” button.
-3- If you want to delete all phone numbers, you can click “Delete All” button.
