4.

Setup the ATA by using Console (Hyper
Terminal)

4.1

Configure the COM port

First, open the hyper terminal window, select the connection by the COM port, and then click the “Setting”
button.

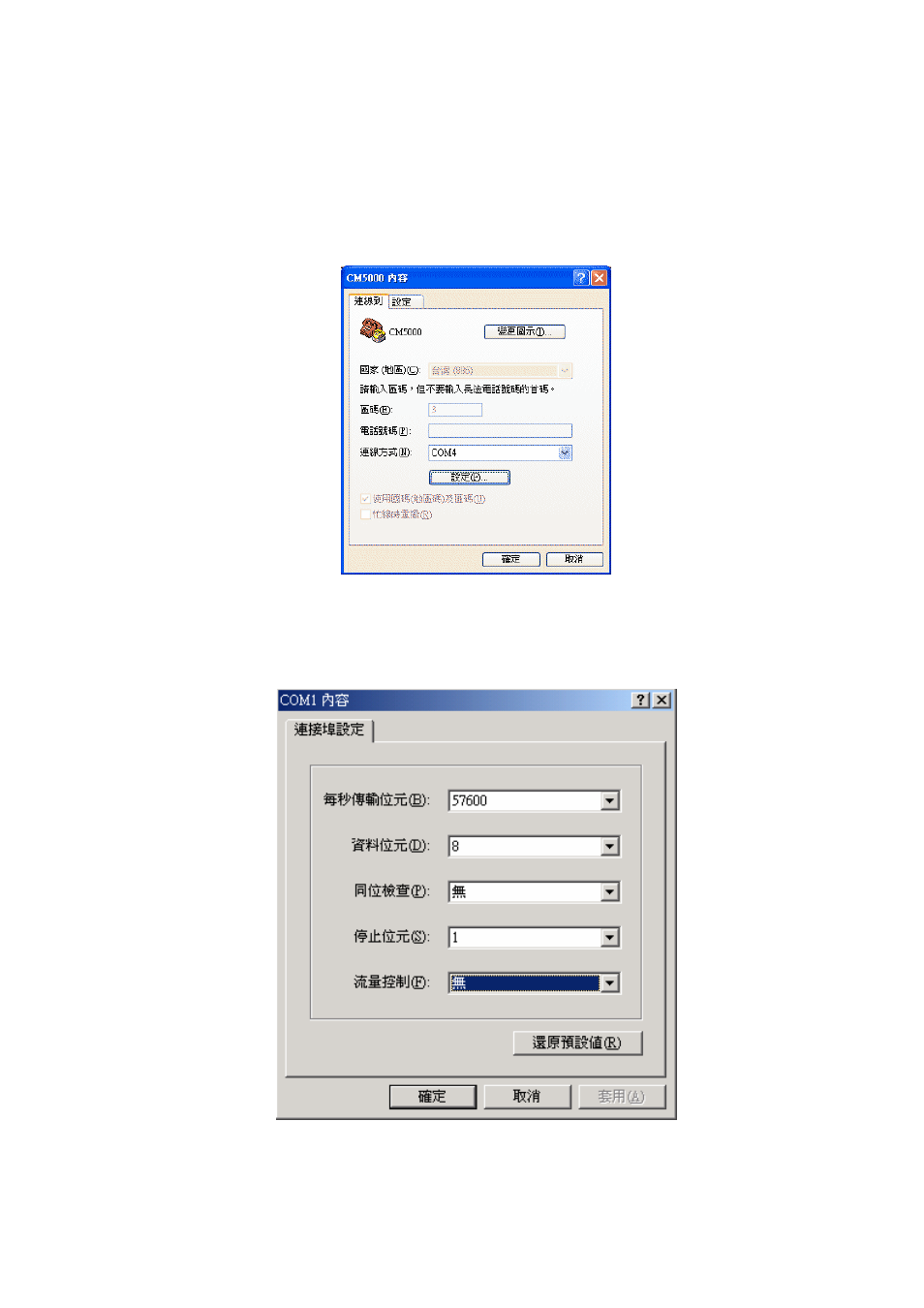

Figure 36. Console Setting-1


Set the COM port’s setting as following setting. Then click OK.

Figure 37. Console Setting-2

36

AirLive VoIP-111A / 120A User’s Manual
