AirLive DS-100 User’s Manual

(1) Attach DS-100 to a power source, either through adaptors provided in the package or

through DC socket with a DC power supply.

(2) Attach POS printer to a power source, through adaptors provided in the package and

turn on the power switch situated on the left side of the device.

(3) Connect POS printer to the COM1 port of DS-100 by a RS-232 cable provided within

POS printer package.

(4) Connect DS-100 to the LAN port of your Gateway/Controller by an Ethernet cable.

* Note: You need to connect to the correct LAN port if your Gateway/Controller is operating

in Port-based mode.

A. Make sure mounting surface on the bottom of the DS-100 is grease and dust free.

B. Remove adhesive backing from your Rubber Feet.

C. Apply the Rubber Feet to each corner on the bottom of the DS-100. These footpads

can prevent the Switch from shock/vibration.

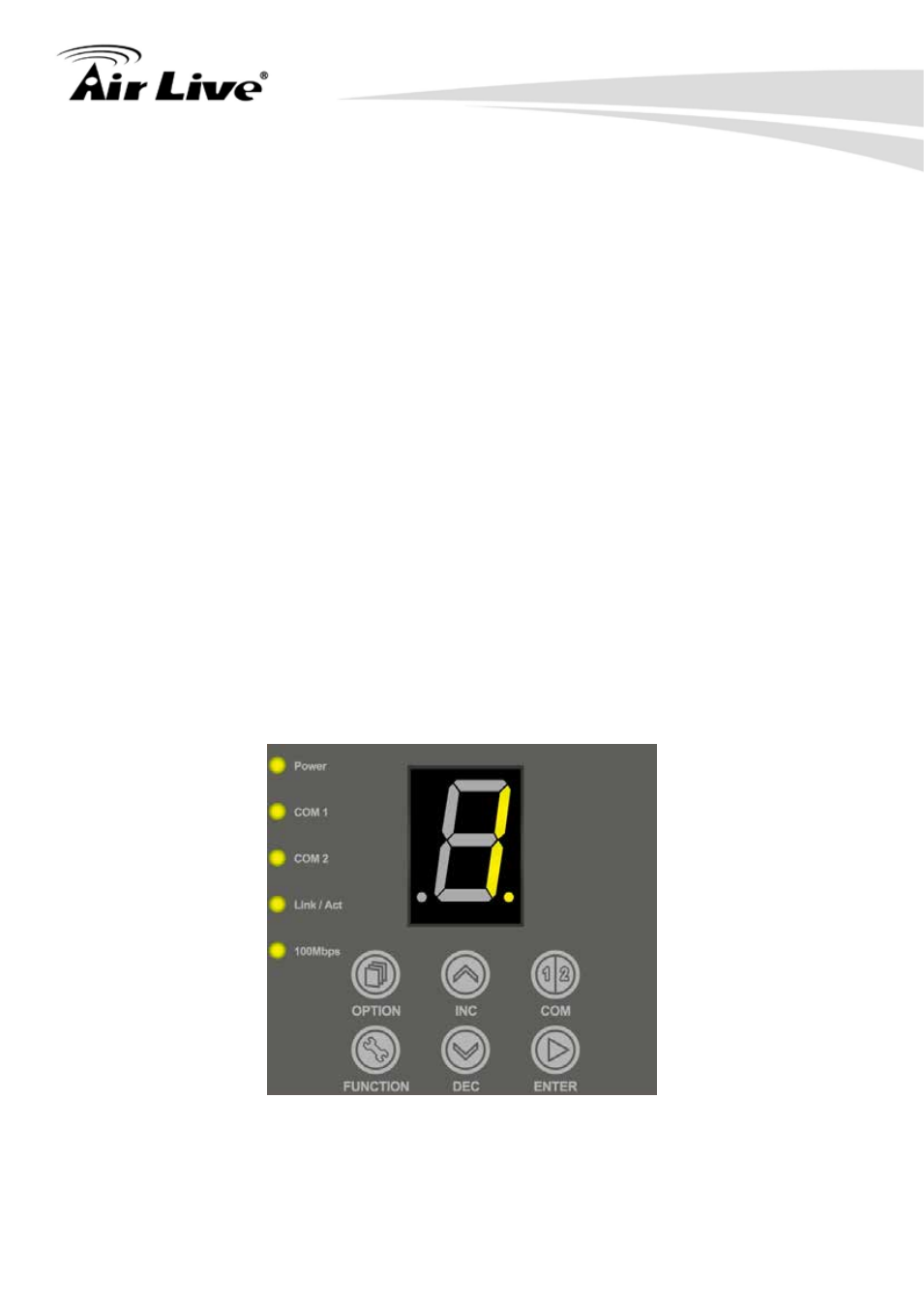

2.4.1 LED Indicator

The LED Indicators gives real-time information of systematic operation status. The

following table provides descriptions of LED status and their meaning.
