2. Installing the AP60
AirLive AP60 User’s Manual
14

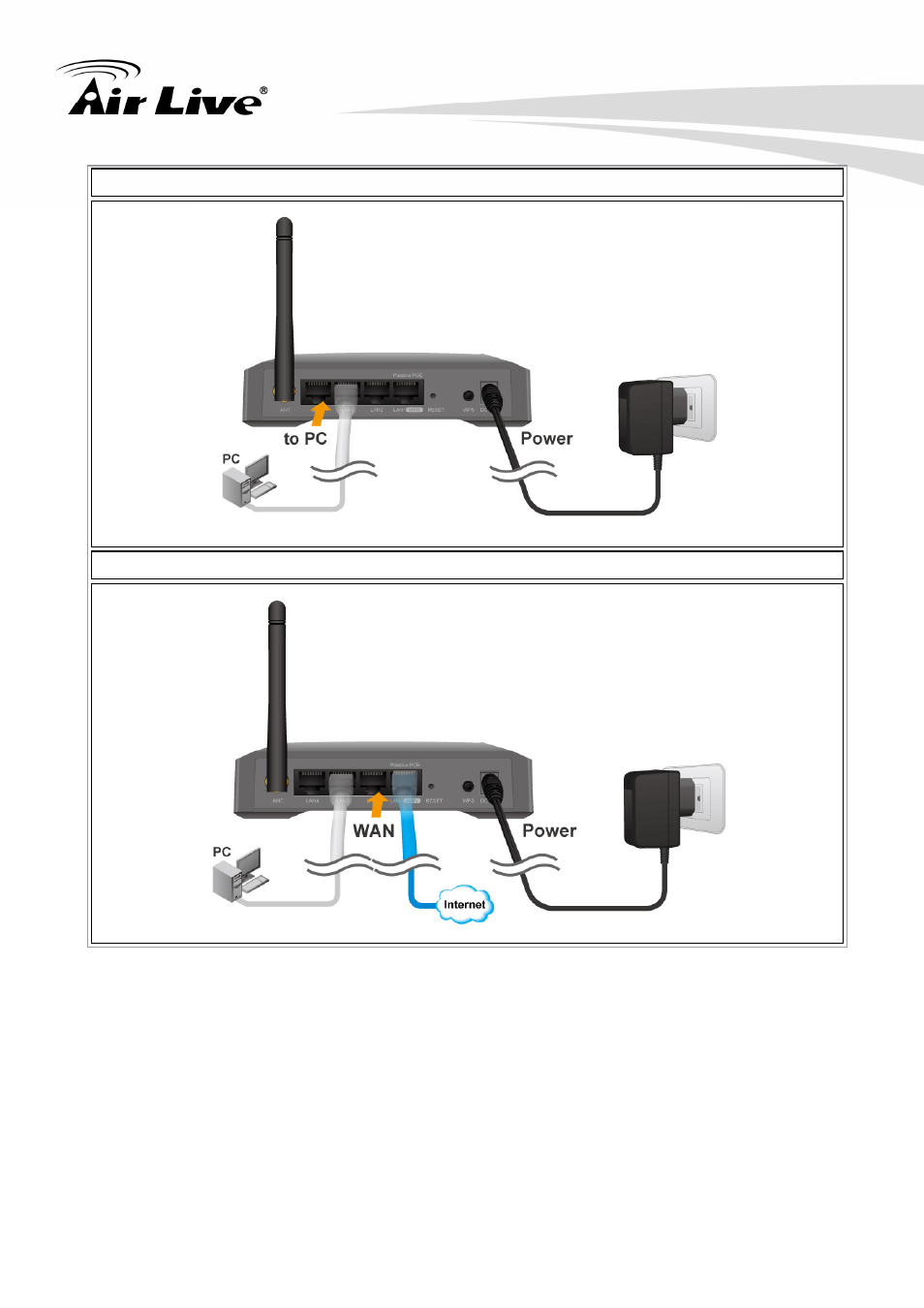

3. Connect the Ethernet cable to one of the LAN port and the other end to your PC.
4. If you have broadband connection, please connect the Internet cable to “WAN port”.
Passive PoE Installation
If you want to supply the power by using Passive PoE, please follow the installation
diagram below. Please note that the passive DC Injector is not included with AP60, it
needs to be purchased separately (AirLive Model: PoE-1P). Air3G uses 12V passive PoE
system. it is recommend to use a power adapter of 12Vdc at 1.25A.
