LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
In case serial number has not been get, press “Get serial number from a connected
expansion” button.
Warning: getting LCU ONE serial number is mandatory to transmit the
configuration to the logger.
LCU-ONE

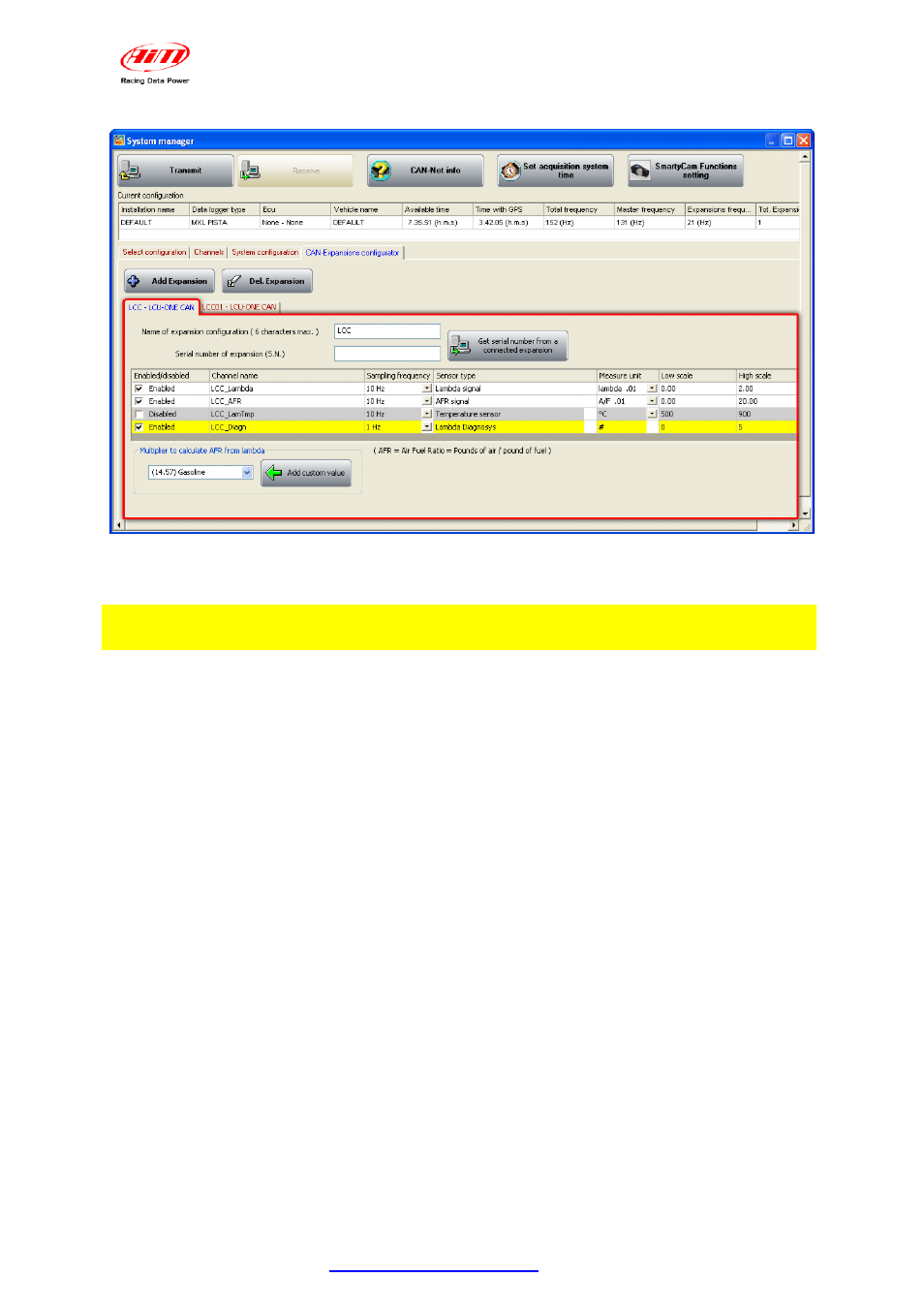

layer is shown above.
On top
Name of expansion configuration (6 characters max.) and serial number fields. Inserting
a configuration name the layer label is modified live. As far as serial number is
concerned, see previous paragraphs.
Central in the page
a table shows LCU-ONE channels. The table has 7 columns.
Enabled/Disabled
: shows the channel status (enabled/disabled) and can be modified
checking or un-checking the related checkbox. LCC_lambda (lambda value) and
LCC_AFR (AFR value) channels are enabled by default.
Channel name
: shows the channel name and can be modified double clicking on the
cell that becomes editable.
Sampling frequency
: shows the channel sampling frequency and can be set selecting
the desired value from the drop down menu that appears double clicking on the cell
(accepted values are from 1 to 50 Hz).
Sensor Type
: shows the sensor installed on that channel and cannot be modified.
Measure Unit
: shows the selected unit of measure of that channel and can be modified
double clicking on the cell.
Low/High scale
: shows the channel high and low scale and can be modified double
clicking on the cells, that become editable.
Under
the table is “Multiplier to calculate AFR from lambda” field. It allows the user to
change the used fuel and to insert a new one. Select the used fuel to see its AFR value.
