LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
1 1

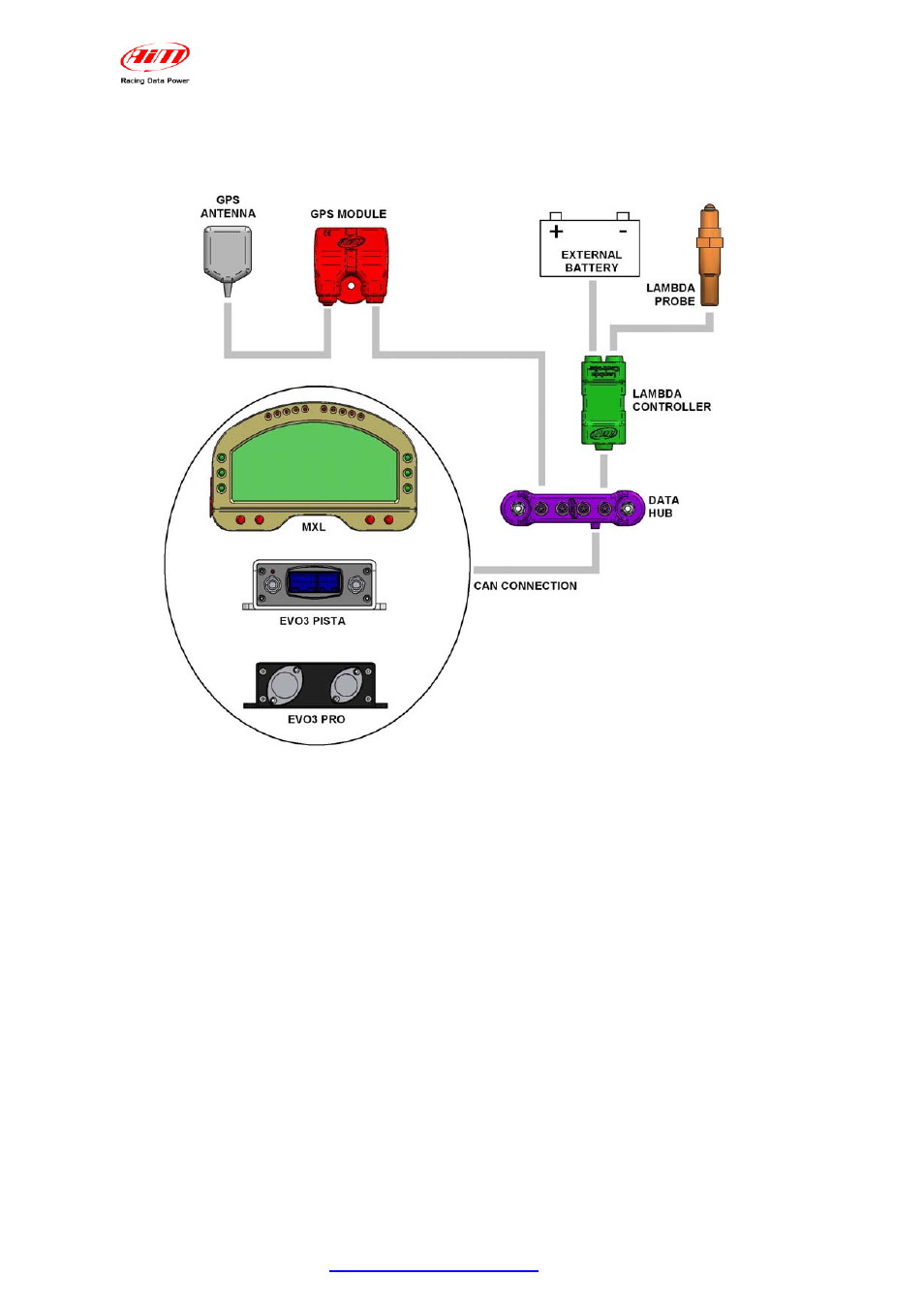

3.2 – Connection of LCU-ONE CAN + GPS MODULE
In case Lambda controller is to be connected with other CAN peripherals, connection
scheme is the one shown above.
We would suggest to insert a 10 A fuse in series between external battery and Lambda
controller to protect the latter.
As far as connections with the logger is concerned, refer each system user manual.
