LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
In case more than one LCU-ONE has to be connected, for a better engine control (one
probe for each engine bank or even one probe for each engine cylinder), the peripherals

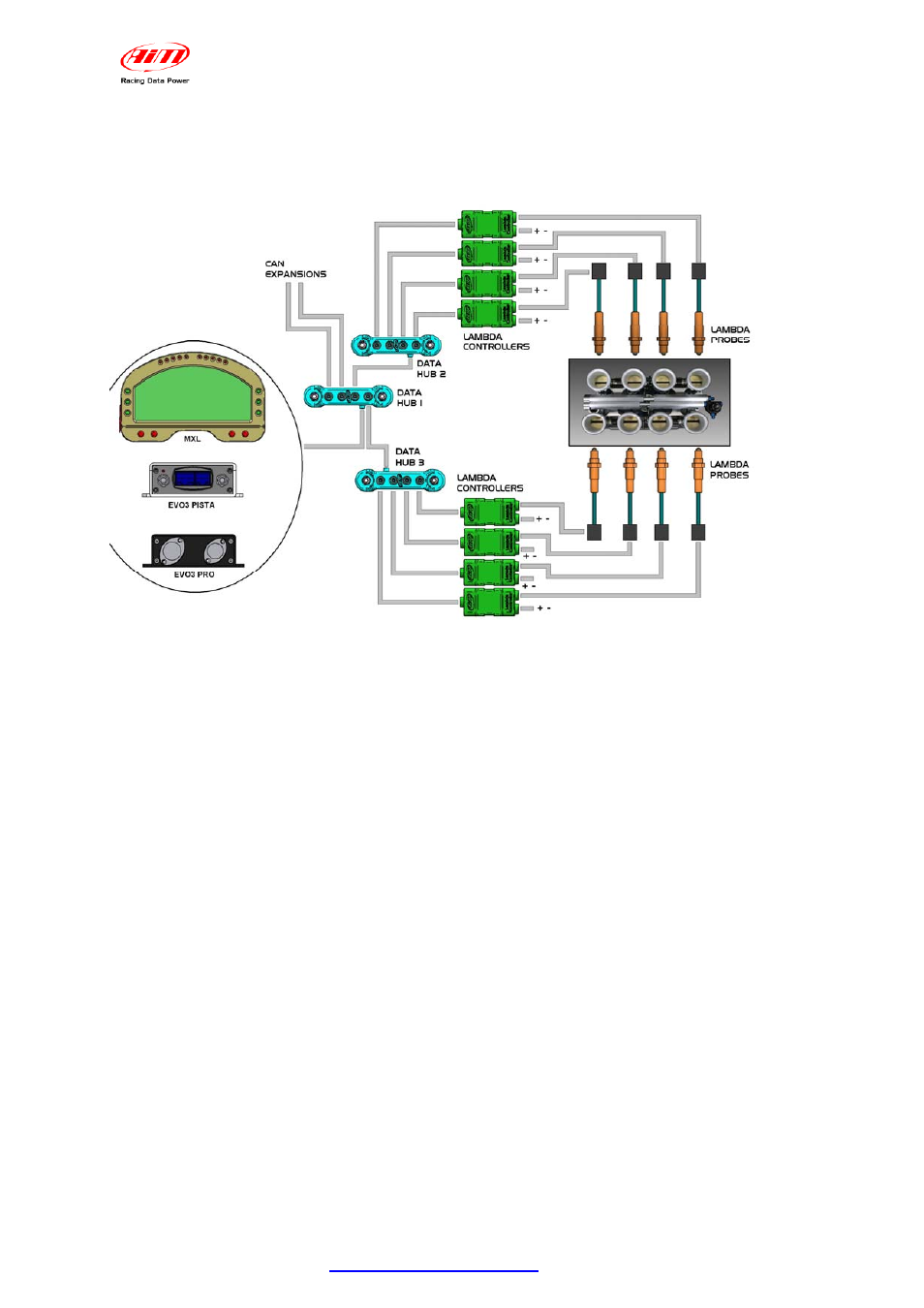

connection scheme to follow is shown below:
Each Lambda controller has to be connected to the battery.
We would suggest to protect each Lambda controller with a 10A fuse.
When MXL/EVO3 is switched off all peripherals are automatically switched off.
