LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
2
Chapter 3 – Connection with MXL – EVO3 Pro/Pista
LCU-ONE CAN can be connected to all MXL and to EVO3 Pro/Pista.
Warning: connect LCU-ONE CAN to MXL or EVO3 Pro/Pista when both are OFF.
8

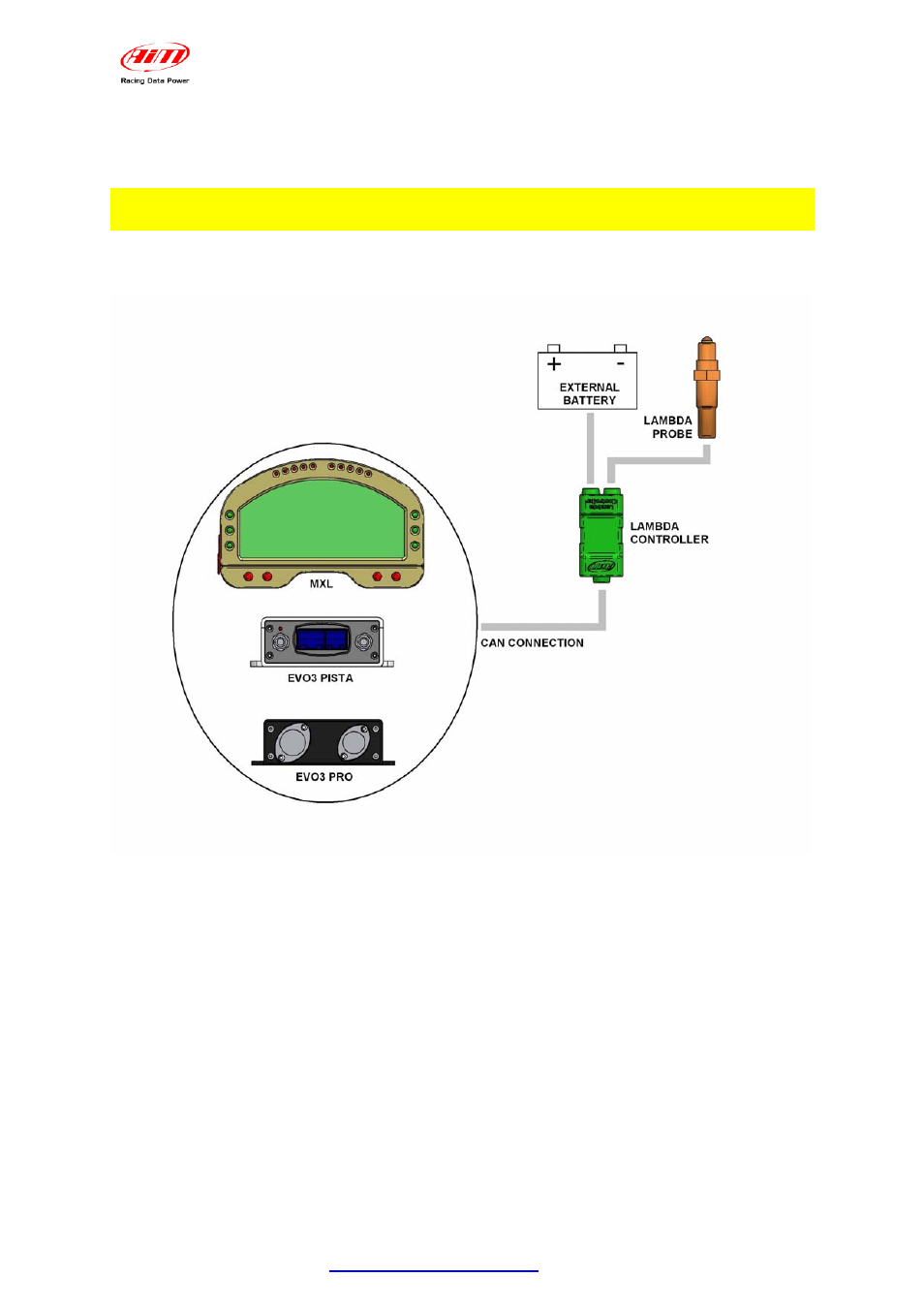

3.1 – Connection of LCU-ONE CAN
To connect Lambda controller only, the connection scheme is the one showed above.
To protect Lambda Controller we would suggest to insert a 10 A fuse for each Controller
in series between external battery and Lambda controller.
LCU-ONE CAN is to be powered – like the logger – by the engine master switch.
As far as connection with the loggers is concerned, refer to each system user manual.
www.aim-sportline.com 4
