LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
Once enabled/disabled the channels, it is possible to show Lambda channels on the
display depending on the logger and on the connected peripherals. In case of an MXL,

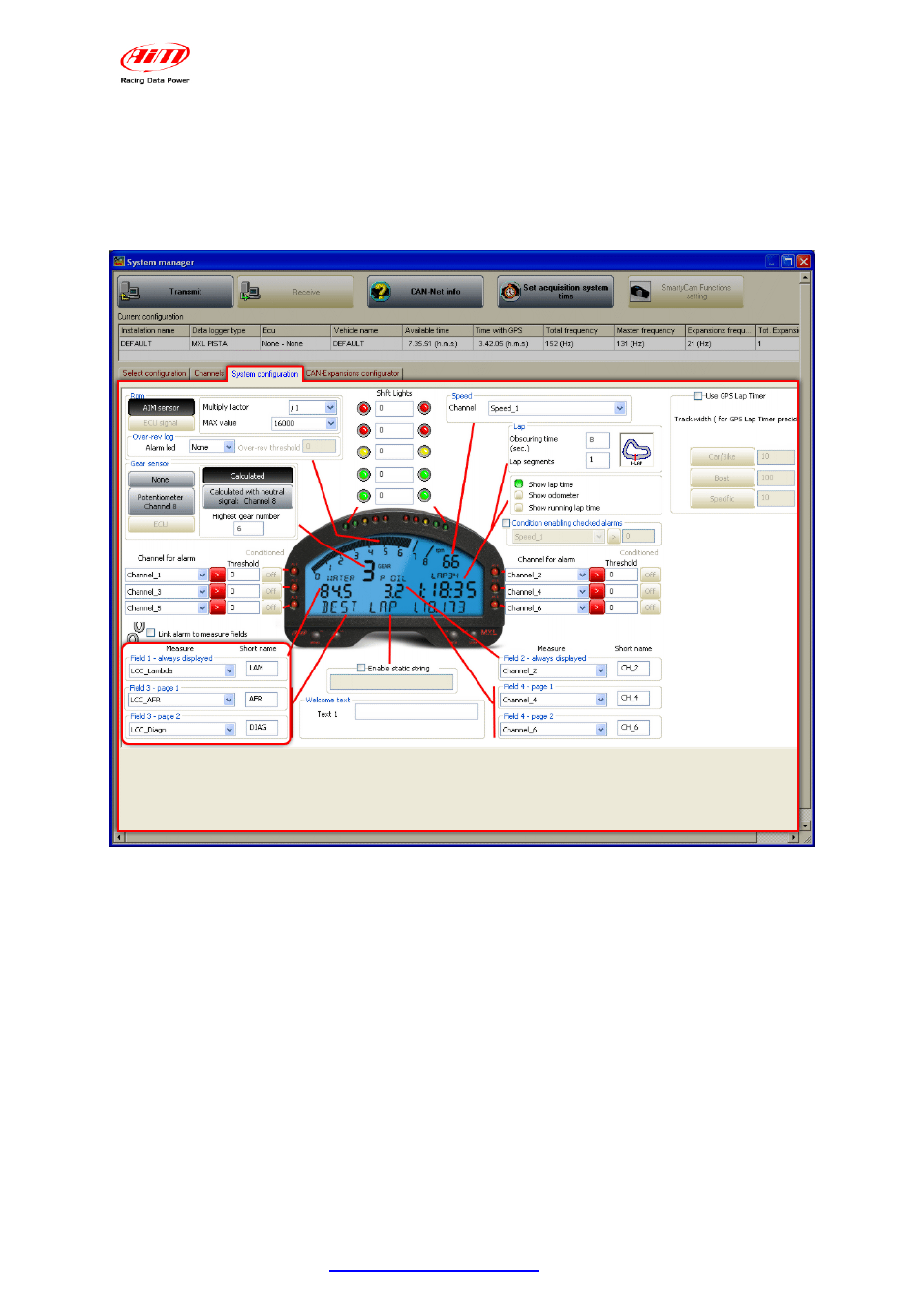

Lambda channels can be shown setting them in “System Configuration” layer. In the
example below LCU-ONE enabled channels are: LCC_Lambda, LCC_AFR and
LCC_diagnosis and each one can be shown in a field of the display. The example
shows the three channels set on page 1 and 2 of MXL (red box).
In case of an EVO3, data visualisation is possible only connecting the logger to a
Formula Steering Wheel
or to a MyChron3 Dash and the channels to show are set in
the display configuration as shown below.
