LCU-ONE CAN connected to MXL and EVO3
User Manual
Release 1.05
5
Chapter 6 – Data Analysis with Race Studio Analysis

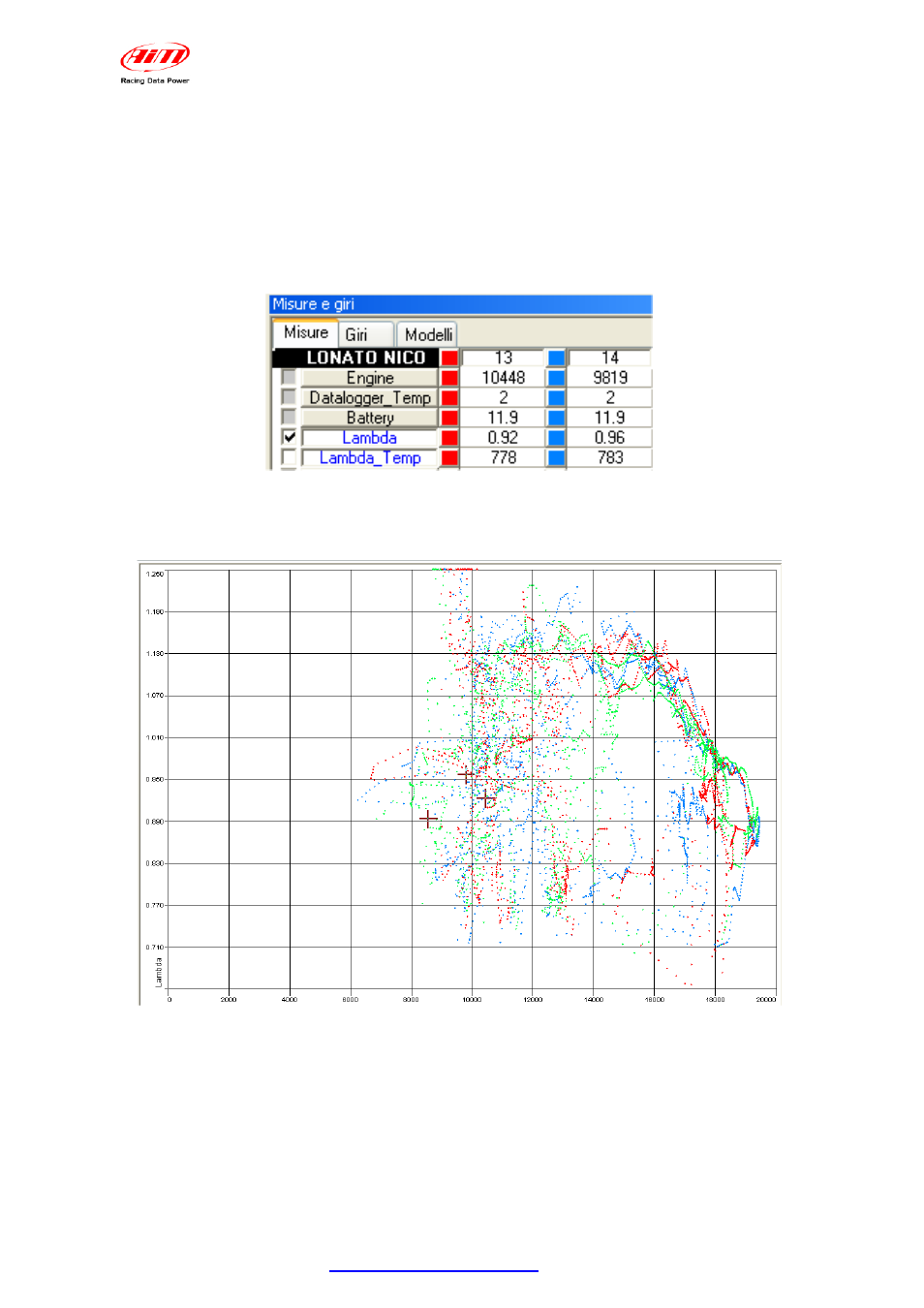

During data analysis, the presence of Lambda controller adds as many channels as the
number of LCU-ONE channels enabled to Measures and laps toolbar (as shown in the
figure below):
Lambda : shows lambda value recorded during the session;
Lambda_Temp
: indicates the probe internal temperature while working;
To better analyse carburettor values, it is suggested to show XY diagram of Lambda
probe with RPM values on abscissa axle and Lambda values on ordinate axle.
In this way a more immediate reading of carburetion status is available.
