VMT7010/VMT7012/VMT7015 36
© ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen
6.8 Serial interface COM1 (RS232)
Pos : 33 /D atent ec hni k/Schnitts tell en/Seriell e Schnitts tell e C OM RS232/Serielle Sc hnitts tell e C OM (RS232) f ür VMT 60xx @ 1 \ mod_1246373571514_6. doc @ 5876 @
The serial interface is used for digital data transmission. The RS232 interface can be connected by
using a commercially available 9-pin SUB-D cable.
Information:
Pin 9 of the serial interface connector can be used for additional connection
of a 5V power supply, e.g. for operating a serial barcode scanner. The COM
+5V switch in the service slot of the device must be put in the ON position in
order to use this function. A subsequent restart of the computer is required in
order to properly activate this function.
Interface IRQ Address
COM1 4 3F8h

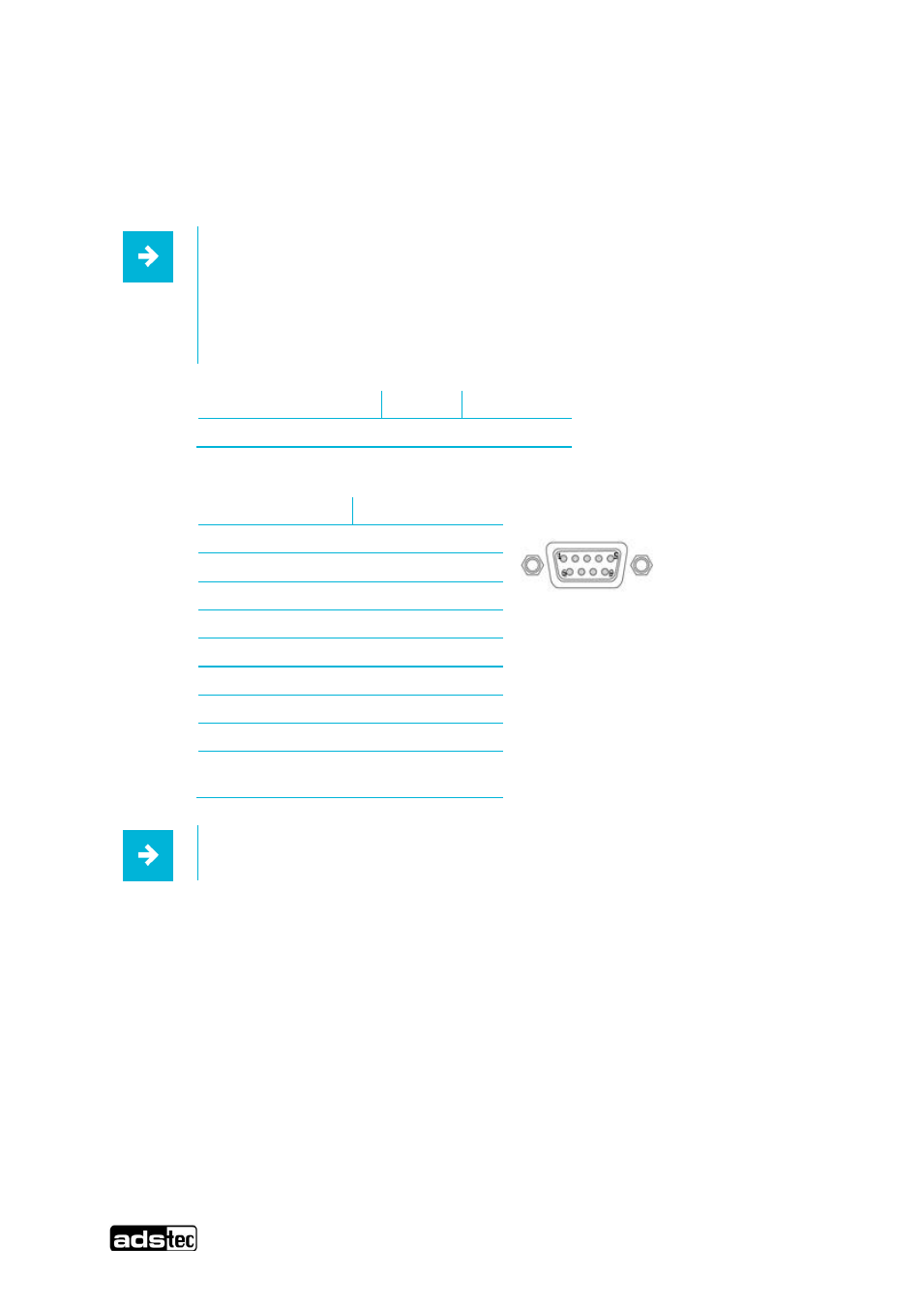

PIN number Signal name
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI or + 5V DC
(max. 1 A)
Information:
This interface is not electrically isolated.
