4.2 Available interfaces

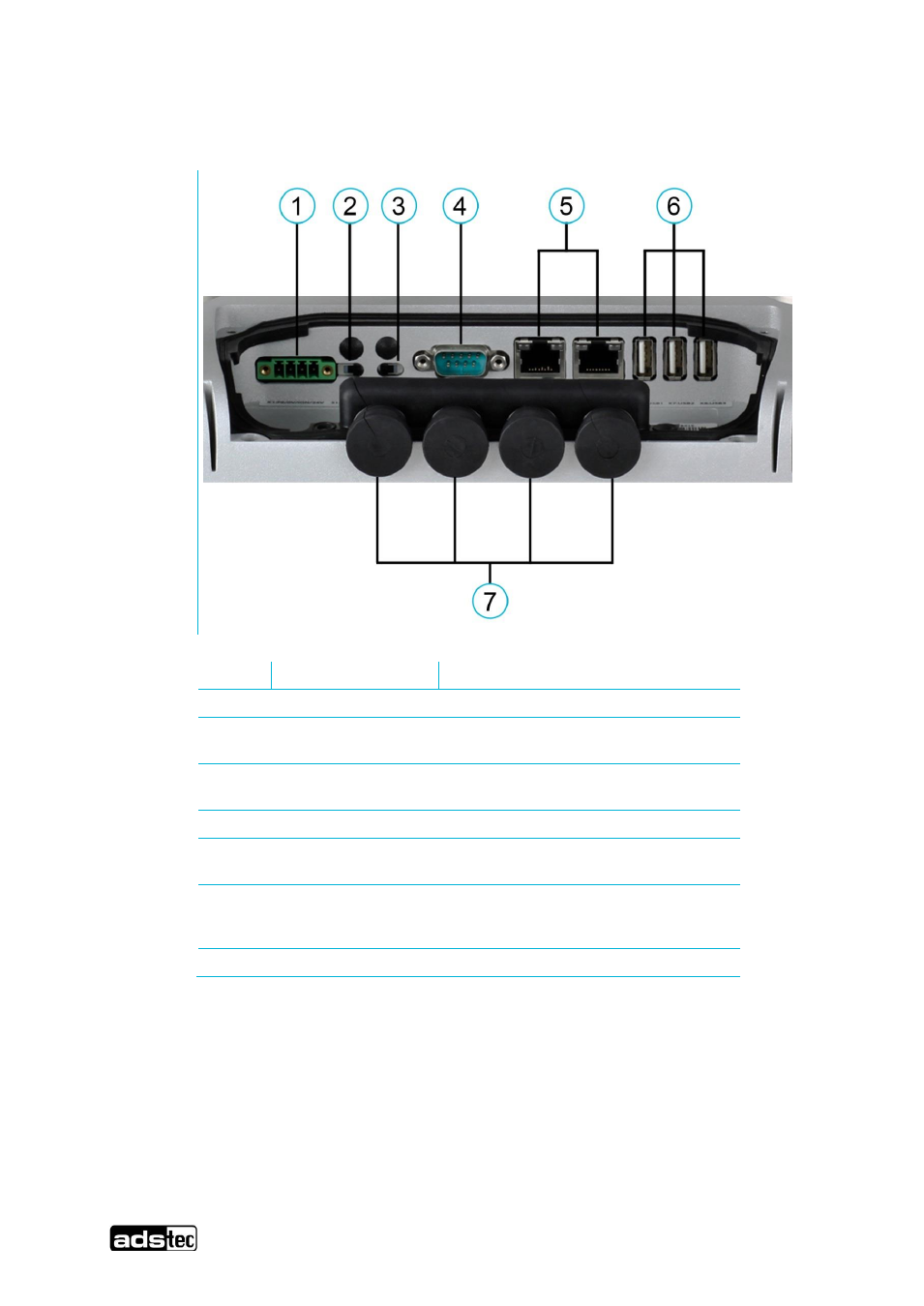

Fig. 6:
No. Designation Description
1 X1:PE/0V/IGN/24V DC IN
2 S1:AUTOSTART
OFF/ON Autostart function
3 X2:WLAN
S2:COM+5V:OFF/ON Preparation for ext. WLAN
5V connection at port COM1
4 X3:COM COM1 port (RS232)
5 X4:LAN1
X5:LAN2 LAN ports (RJ45 10/100/1000 MBit)
6 X6:USB1
X7:USB2
X8:USB3 USB ports (USB 2.0)
7 - Cable entry grommets / seals
