6.5 Network connection (RJ45)
If the drivers required for functioning are installed on the device, the control system may be integrated in
an Ethernet network supporting the 10/100/1000Mbit standard by using the Ethernet 10/100/1000BaseT
network connector. The specifications of this network topology must be observed. If the drivers
necessary for the function are not installed, they can be downloaded from the website (www.ads-
tec.de/downloads).

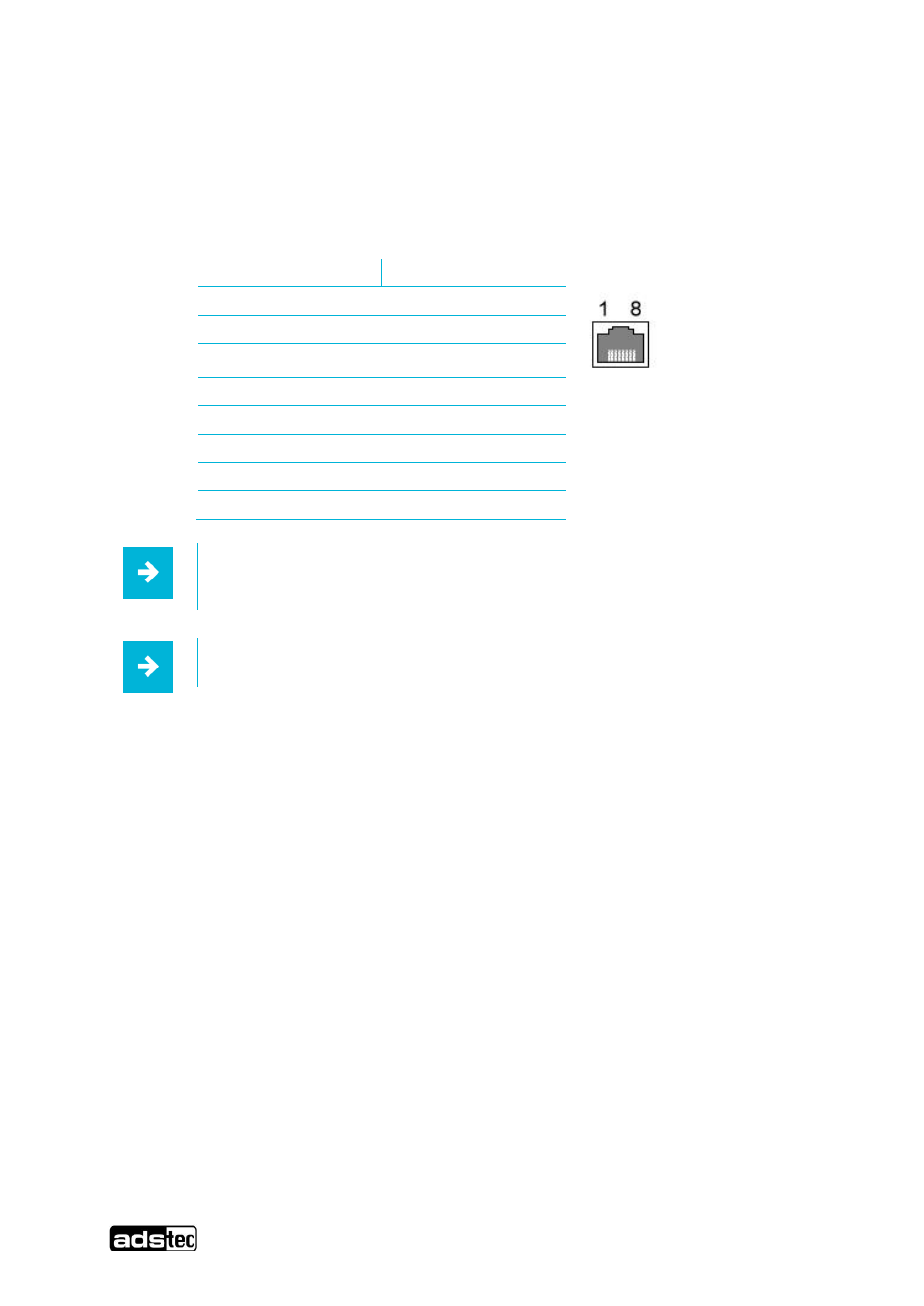

PIN number Signal name
1 TX +
2 TX -
3 RX +
4 NC
5 NC
6 RX -
7 NC
8 NC
Information:
The device has two separately installed network controllers of the Realtek
RTL 8111c Family PCIe Gigabit Ethernet type.
Information:
PXE booting is only possible by using the LAN1 port.
