7.9 DVI‐ Interface
The DVI‐Interface is used to transfer analog and digital video signals. A DVI‐I Cable is required to connect a digital
display to the device. It is also possible to connect a VGA display by using a suitable DVI‐VGA adapter
Note:
The DVI‐Interface is a Single Link Interface. The DVI‐Interface wille be activated only
in operating system mode!

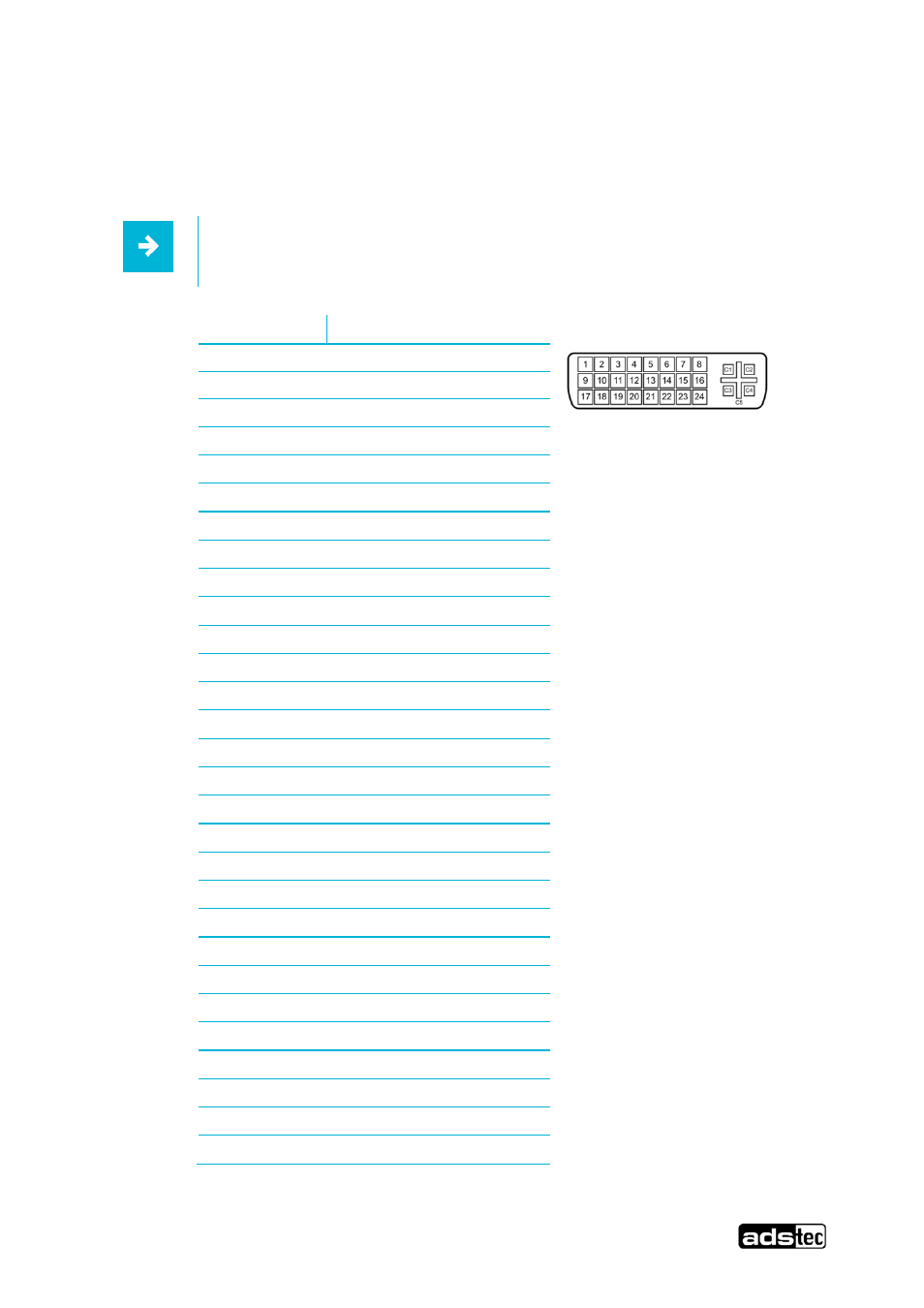

Pin‐Number Signal‐Name
1 TMDS Data2‐
2 TMDS Data2+
3 TMDS Data2/4 Shield
4 N/C
5 N/C
6 DDC Clock [SCL]
7 DDC Data [SDA]
8 Analog vertical sync
9 TMDS Data1‐
10 TMDS Data1+
11 TMDS Data1/3 Shield
12 N/C
13 N/C
14 +5V Power
15 Ground (for +5V)
16 Hot Plug Detect
17 TMDS Data0‐
18 TMDS Data0+
19 TMDS Data0/5 Shield
20 N/C
21 N/C
22 TMDS Clock Shield
23 TMDS Clock+
24 TMDS Clock‐
C1 Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horizontal Sync
Analog GND Return: (analog R, G, B)
