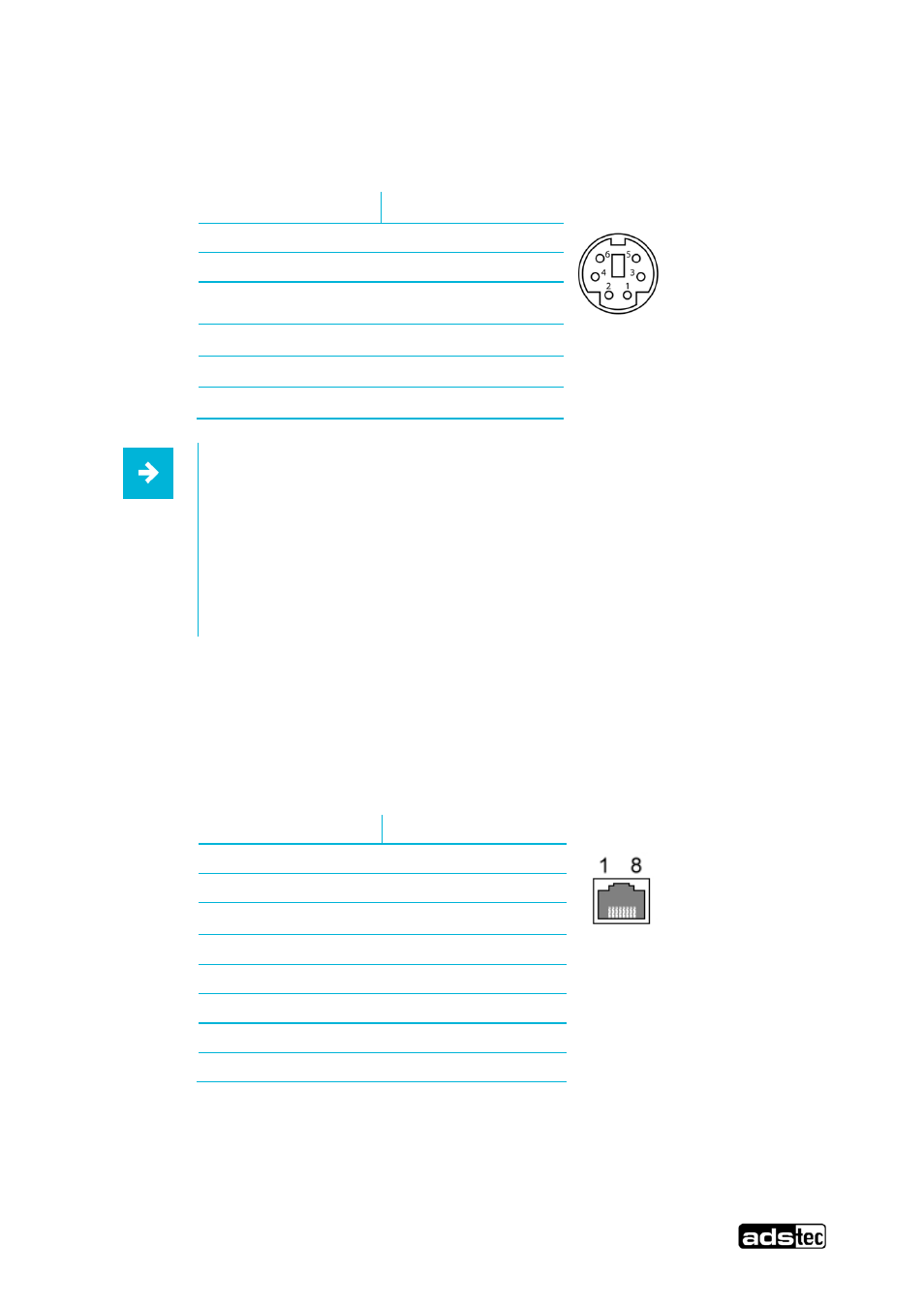

7.6 PS/2 Interface
A keyboard can directly be operated by using the PS/2 socket connector.
Pin‐Number Signal‐Name
1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock
Note:
Since the timing of the integrated controller is specifically set up for cherry keyboards,
keyboards of this manufacturer should preferably be used.
If the soft keyboard is actively displayed on the monitor, the use of the external keyboard
for control purposes is limited.
The keyboard must be connected before switching the device on, because the
keyboard interface is initialised in the process of booting. If the keyboard is plugged
in while the device is running without having had the keyboard connected while
booting, it will not be functional.
Pos: 30 /Datentechnik/Schnittstellen/PS2/Kombi Buchse für VMT 60xx @ 2\mod_1268840073235_6.doc @ 7482 @ Pos: 31 /Datentechnik/Schnittstellen/Netzwerkanschluss RJ45/Netzwerkanschluss RJ45 für VMT60xx @ 2\mod_1260451135970_6.doc @ 6856 @
7.7 Network Connection (RJ45)
If the drivers required for functioning are installed on the device, the control system may be integrated in an
Ethernet network supporting the 10/100/1000Mbit standard by using the Ethernet 10/100/1000BaseT network
connector. Specifications of this network topology must be observed in this case. You can install the drivers
required for functioning from the enclosed service CD, should they not be installed on the device.
Pin‐Number Signal‐Name
1 TX +
2 TX ‐
3 RX +
4 NC
5 NC
6 RX ‐
7 NC
8 NC
