Section
Features & Controls
DESCRIPTION OF OPERATION
Understanding how your machine works will help you achieve the best results when using your chipper. The following description
defines the operation of your machine.
For engine controls and maintenance please refer to the engine
owner's manual included with the machine.
Engine Fuel Tank: Use unleaded fuel. Do not mix with oil.
Trailer Hitch: Always use 2 inch ball and safety chains.
Jack Stand: Always have in UP position and clear from
ground when moving. When in use, place in DOWN position
on a level surface.
Engine Drive Belts and Shield: Never remove shields
when in use.
Chipper Chute: Feed materials to be chipped through the
chute.
1.
2.
3.
4.
5.
Rotor Access Cover: Used to remove chipper blades and
check nuts for proper torque.
Engine Battery: (see section 2.7).
Engagement Arm: Used to engage/disengage drive belt.
Adjustable Chipping Anvil: Check nuts for 75 Ft-lb. torque
every 8 hours.
Turntable Brake: Locks the turntable to the frame for any
position chipping.
Feed Roller Control Arm: To engage the feed roller move
the control bar. The cycle of the control bar, forward to back,
is REVERSE (R), FORWARD (F), STOP, REVERSE (R).
Discharge Tube: Directs the discharge of chipped material
horizontally. The discharge chute can be rotated 360° hori-
zontally until the desired location is reached.
6.
7.
8.
9.
10.
11.
12.
3
7
11
6
9
10
1
2
3
4
5
8
12

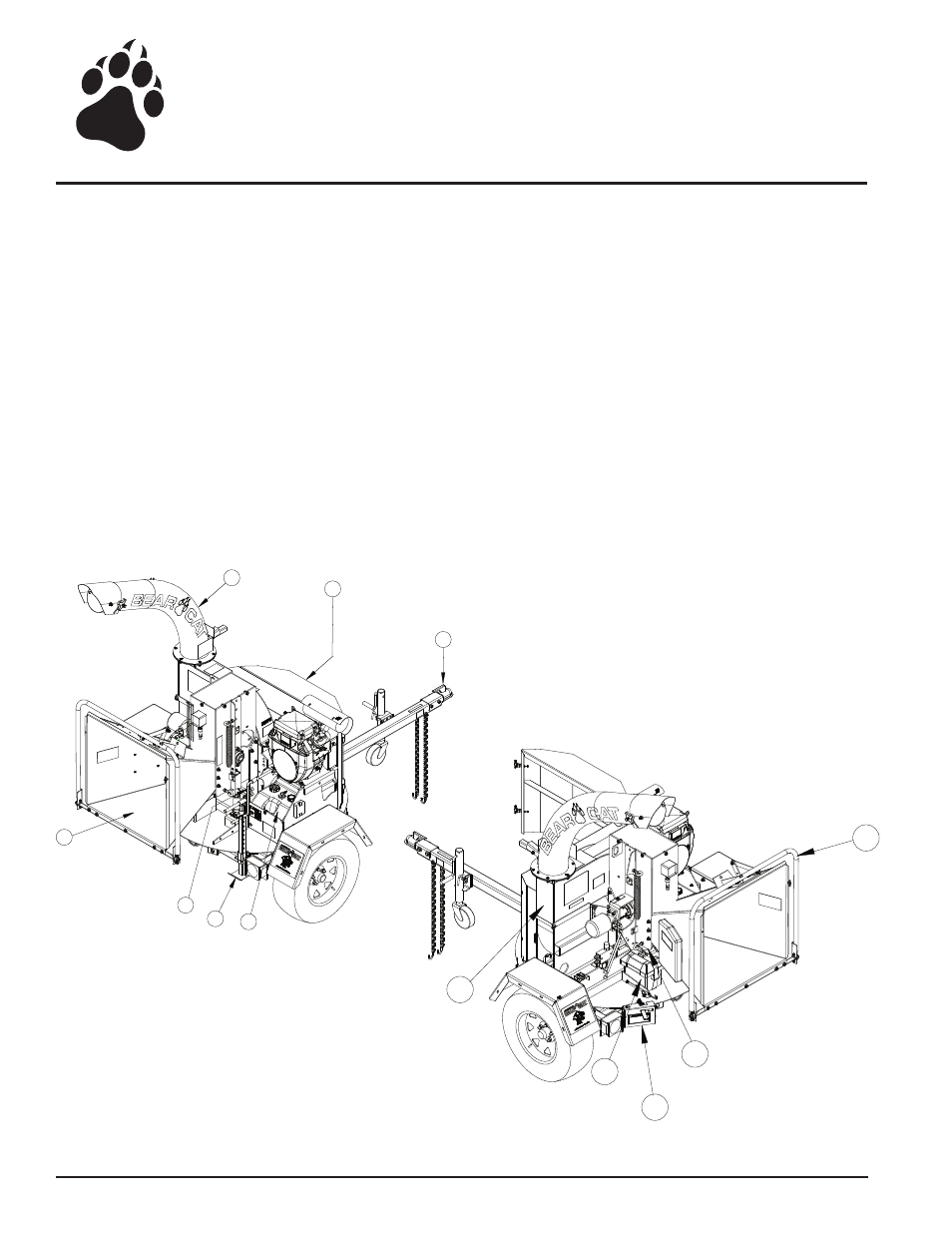

Figure 3.1 - Features & Controls
