Page 22

HDMI1 CH1 1280x1024

= OFF

HDMI1

CH1 1280x1024

HDMI1 CH1 1280x1024

= 38KHz

= AUTO

Standby Mode
In Active mode, press the

POWER

button on top of the Transmitter or
Receiver to have the ENTIRE system
enter Standby mode or press the

OFF

button when pointing the remote at either
the Transmitter or Receiver to have the
ENTIRE system enter Standby mode.
The HDMI OUT port on the Transmitter
remains active in Standby mode.

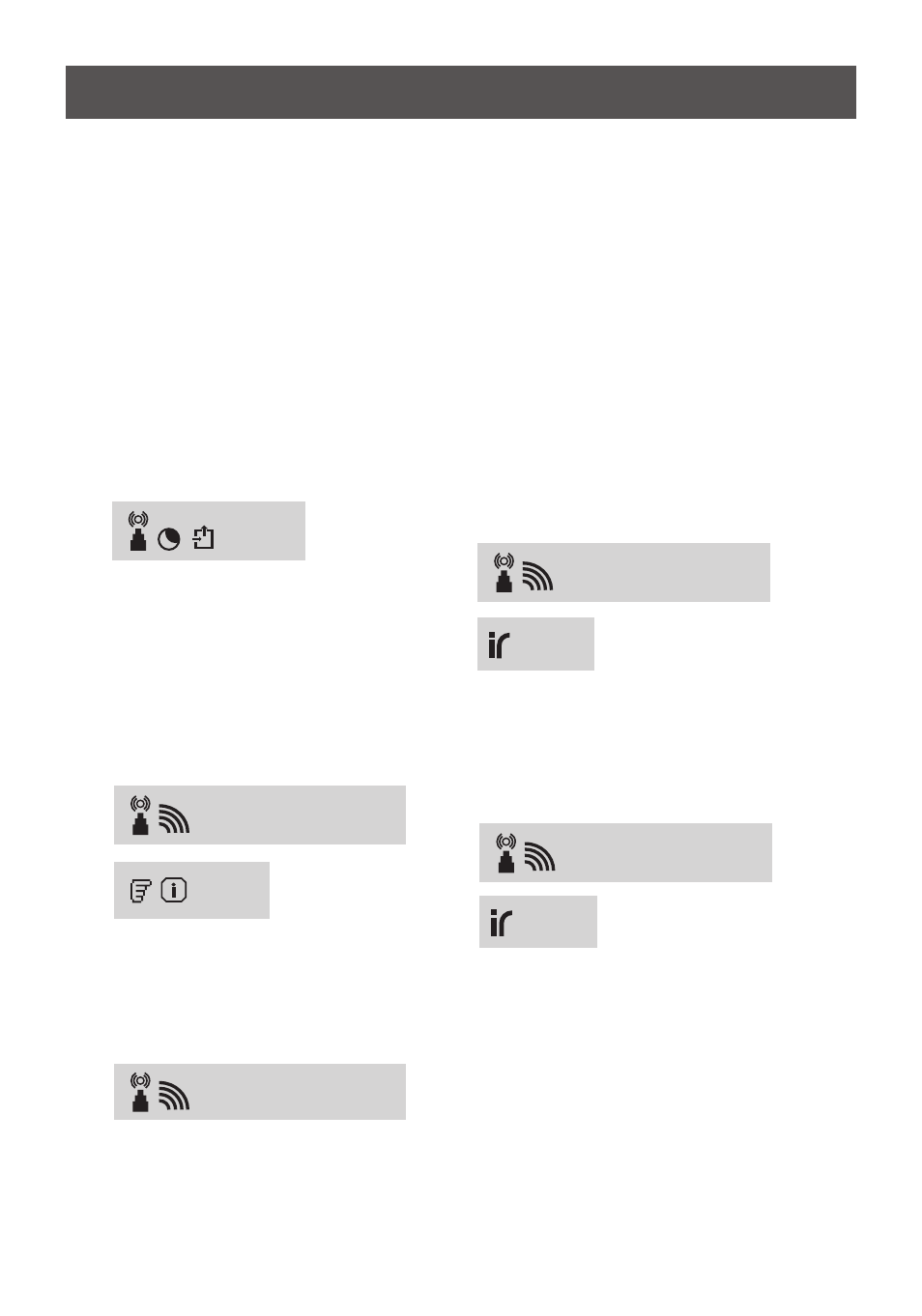

OSD Displays: (Display 3secs and then
enter Standby Mode.)

System Information
Press the

INFO button on the remote

control to display signal quality, source,
channel and resolution information for
user reference. Press the

INFO button

again to exit the INFO OSD.

OSD Displays:

Source Selection
Press the arrow buttons or discrete
source button to select the desired input
for either the Transmitter or Receiver(s).

IR Frequency Selection
While pointing remote control at Receiver,
press the

IR button and then the UP and

DOWN keys on the remote control to
change the IR Blaster frequency. The IR
frequency can be switched from AUTO to
38KHz and to 56KHz.

Note that the IR Blaster frequency default
setting is AUTO.
Press once for current IR frequency status
display.

OSD Displays:
Example

While pointing remote control at Receiver,
press

UP or DOWN arrows to switch IR

blaster frequency.

OSD Displays:

6. On Screen Display (OSD) vs. Remote Control Instruction

Press

OK to accept.
