Note: Pressing “Up” or “Down” on receiver side will not initiate switching.

INFO

OFF

COMP

EDID1

EDID2

EDID3

4. Power on all connected displays (i.e. HDTV or HD Projector) and source devices (i.e. Cable

box, Blu-ray player, game console).

When the GWHDMS52MB kit is powered on for the first time, the default input is set to
HDMI 1. To select a different source to be displayed, use one of the following options:

Note: When selecting a different source, it will take approximately 5~7 seconds for the
image to appear.

Receiver Source

Switch LEFT/

RIGHT arrow

buttons

Transmitter

Source Switch

UP/DOWN arrow

buttons

Option A
Source button on Transmitter or Receiver

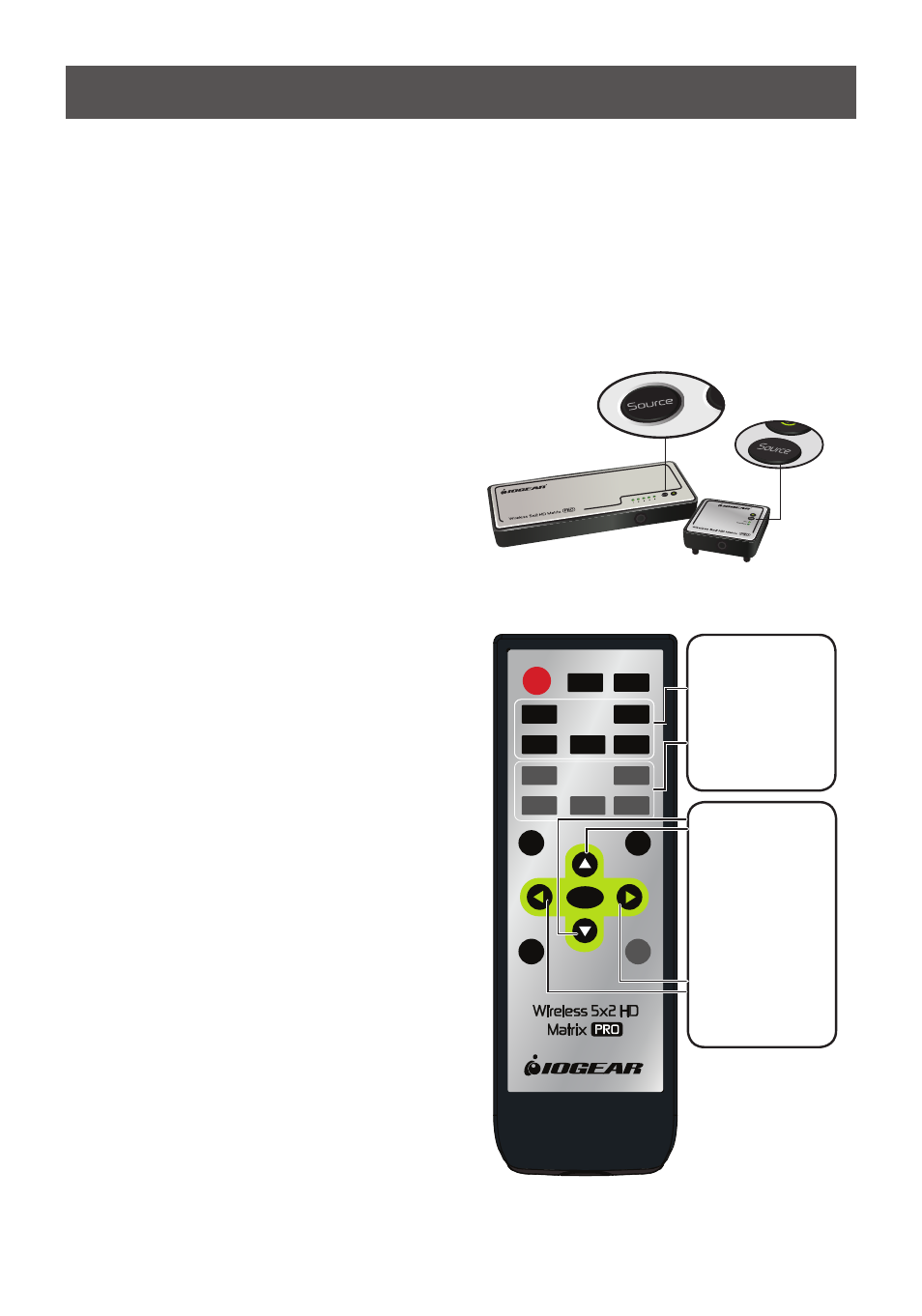

Press the SOURCE button on the top of the
Transmitter or Receiver to cycle through each
source input until the desired input is shown on
the On Screen Display (OSD).
i.e. Pressing SOURCE button on Transmitter
will switch source on Transmitter ONLY.

Option B
Remote Control Source Buttons
When pointing at Transmitter or Receiver:

a. To select a specific source on the

Transmitter, press the corresponding
source button in the area marked TX.

b. To select a specific source on the

Receiver(s), press the corresponding
source button in the area marked RX.

Option C
Remote Control Arrow Buttons
1. When pointing remote at Transmitter:

a. Pressing the

UP or DOWN arrow

button will cycle through inputs for the
Transmitter. Once the desired input
is displayed on the OSD, press

OK to

select.

b. Pressing the

LEFT or RIGHT arrow

button will cycle through inputs for the
Receiver(s). Once the desired input
is displayed on the OSD, press

OK to

select.

2. When pointing remote at Receiver:

Pressing the

LEFT or RIGHT arrow button

will cycle through inputs for the Receiver(s).
Once the desired input is displayed on the
OSD, press OK to select.

OPTION C

OPTION B

a. Transmitter

source buttons

b. Receiver

source buttons
