Page 15
1
4
4
4
3
2
4
5
6
IR Blaster
DVD Player
HD Cable Box
Blu-ray Player
HD Gaming Box
Media Player / Server
HD Projector or HDTV
15
Hardware Installation

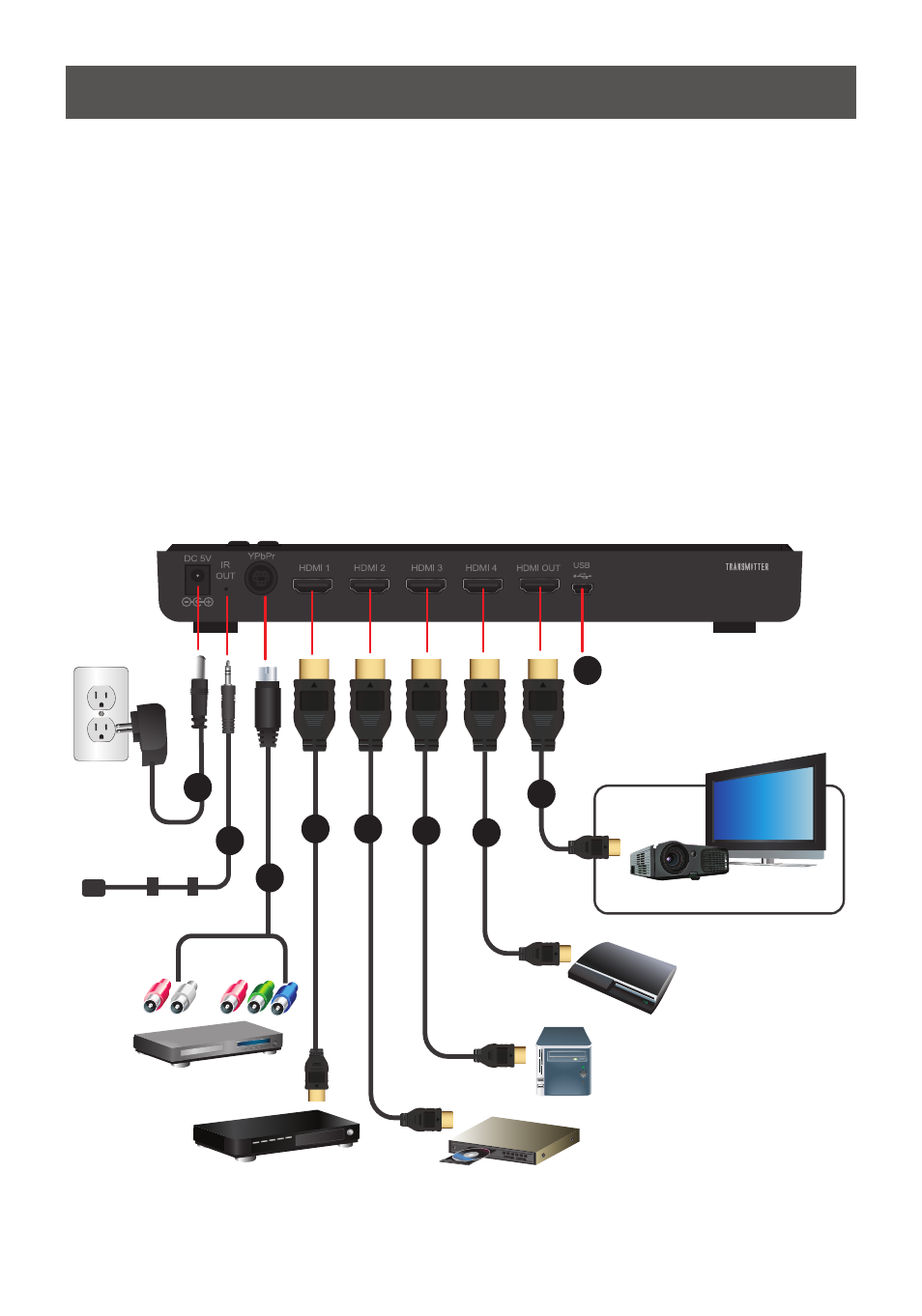

Step 1: Setup the Transmitter
Connect up to 5 HD Audio/Video Source Devices and 1 HDTV to the transmitter
1. Connect the Transmitter Power Adapter to the DC IN jack on the Transmitter.
2. Connect the IR blaster cable. Please refer to Page 17, Step 3A for more detailed setup
instructions.
3. Connect a source device with Component Video Out using the included Component Video
Adapter.
4. Connect up to 4 HDMI source devices using HDMI cables (Ports 1-4).
5. Connect the local HD display / projector using an HDMI cable to the HDMI OUT port on the
Transmitter.
6. The Mini USB port is used for firmware upgrades only.
