11
Overview

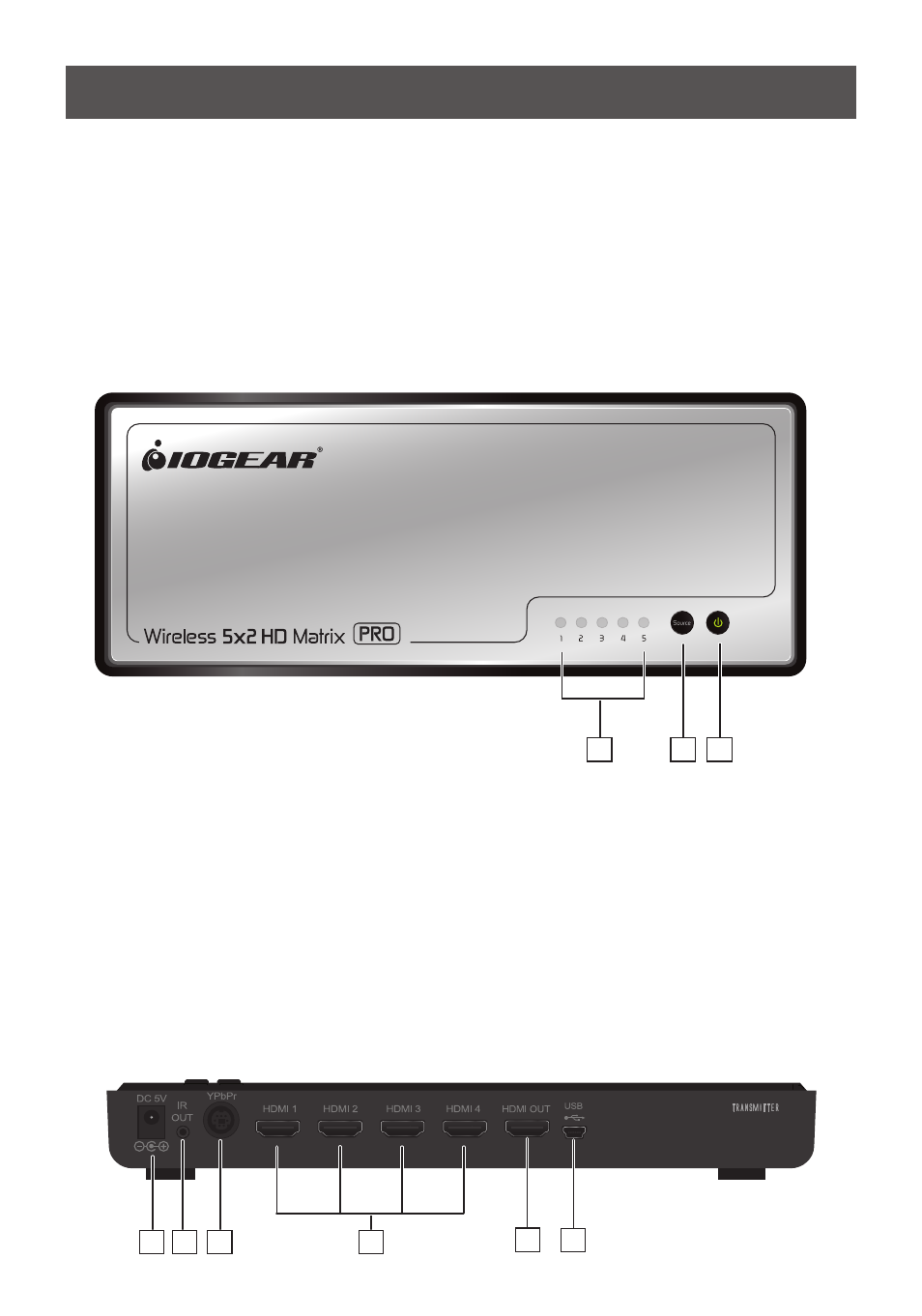

Transmitter
Top View
1. Source LED Indicators
These LED indicators light solid green to show current input.
2. Source Selection Button
Press the Source button to switch inputs connected to the Transmitter
3. Power Button with LED Indicator
Press the power button to turn the transmitter ON / OFF. The LED indicator lights solid
green when the power is ON and lights red when in Standby Mode.
Back View
1. Power Adapter DC IN
2. IR OUT Blaster Extender Jack
Plug the IR Blaster Cable into the IR OUT jack on the transmitter.
3. Component IN (YPbPr)
Connects the Transmitter to source device Component port with the provided Adapter Cable.
4. HDMI IN
Connects the Transmitter to High-definition audio / video devices via an HDMI cable.
5. HDMI OUT
Connect to an HDTV via an HDMI cable.
6. Mini USB Port
For firmware upgrade purpose only.
1 2 3
1 2 3 4 5 6
