SECTION 4 - HYDRAULICS

4-22

– JLG Lift –

3121322

Lift/Lower Valve Block

B

S

VALVE SCHEMATIC

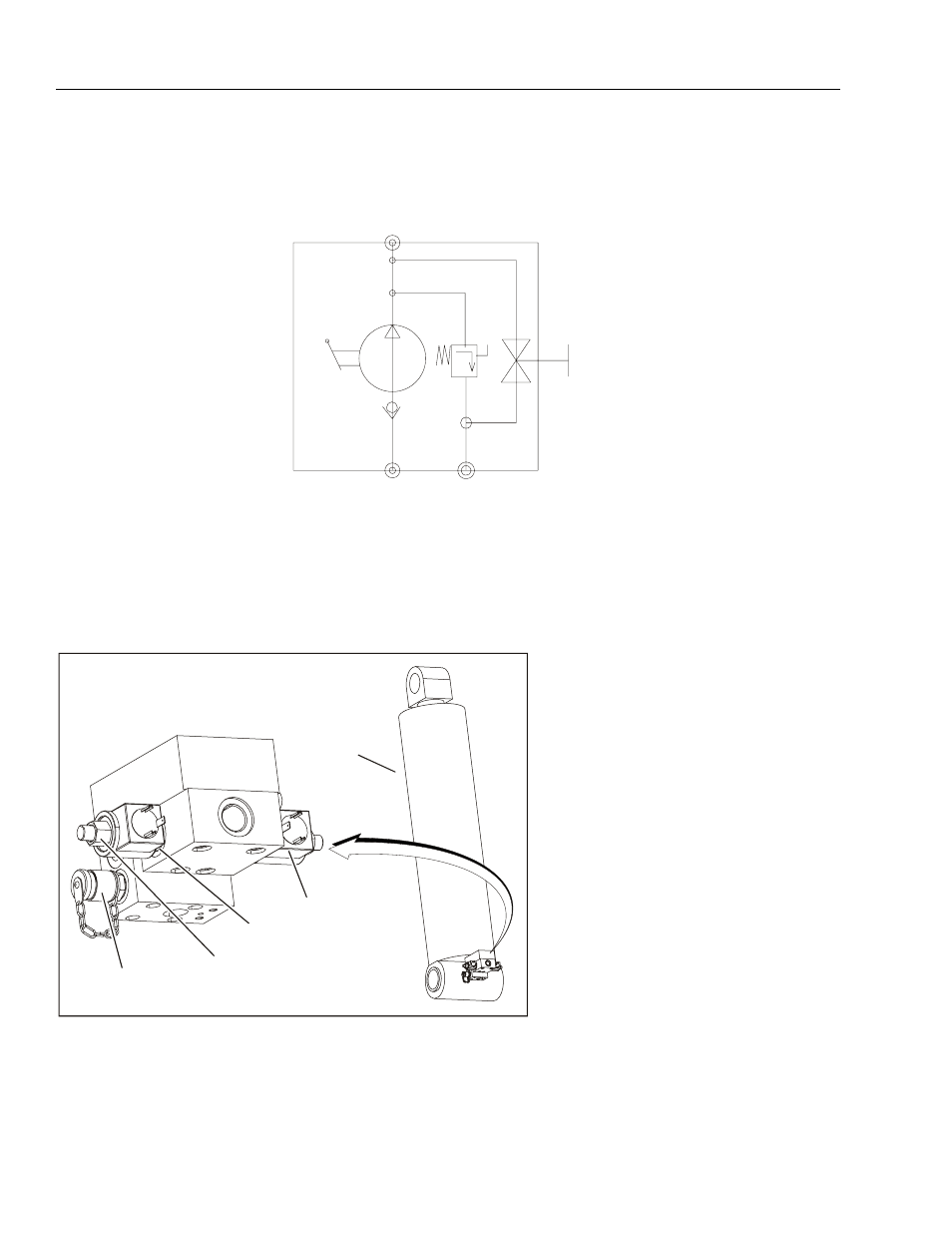

Figure 4-40. Hand Pump Schematic

Lift Cylinder

Lift/Lower
Valve Block

Diagnostic
Test Port

Solenoid
Valves

1

2

Figure 4-41. Lift/Lower Valve Block

Solenoid Valves (Qty. 2)

1.

Torque to 5 ft lbs (6.8 Nm)

2.

Torque to 20 ft lbs (27.1 Nm)

• Operating Pressure: 5000 psi (345 bar)

Diagnostic Test Port

• Pressure Rating: 9137 psi (630 bar)
