SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-24 – JLG Lift – 3121322
3.7 FUEL TANK
Removal:
NOTE: Drain Fuel Tank (4) before removing. Store diesel
fuel in approved receptacle.
1. Remove Fuel Tank Shield (1) by removing the four
Bolts (2) and Lockwashers (3).
2. Disconnect the Fuel Line Hoses (5, 6) from the
engine compartment by unscrewing and removing
the Strain Relief Nut (8) from the inside of the com-
partment.
3. The fuel line hoses can be removed from the fuel
tank by removing the Hose Fittings (9, 10). The
hoses can be removed from the Hose Fittings by
removing the Clamps (11).
4. Remove the Fuel Tank (4) by removing the four Nuts
(13) and Lockwashers (14) on the two fuel Tank
Straps (12).
Installation:
1. Place Fuel Tank onto the chassis. Secure tank with
Fuel Tank Strap. Fasten with Bolts and Lockwashers.
2. If applicable, secure Hose Fittings to Hoses with
Clamps. Connect Fuel Line Hoses to Tank.
3. Reconnect the Fuel Line Hoses to the engine com-
partment by screwing the Strain Relief Nut on the
inside of the compartment.
4. Install the Fuel Tank Shield by replacing the four
Bolts and Lockwashers.
5. Refuel Tank with diesel fuel.
NOTE: Empty fuel tank weighs approximately
36.6 lbs (16.6 kg).
1
2
3
4
7, 8
9
11
12
13
14
13
14
5
6
10
11
1. Fuel Tank Shield
2. Bolt, M10 x 12mm
3. Lockwasher, M10
4. Fuel Tank
5. Fuel Line Hose, 5.5mm
6. Fuel Line Hose, 7.5mm
7. Strain Relief Connector
8. Strain Relief Nut
9. Hose Fitting
10. Hose Fitting
11. Clamp
12. Fuel Tank Strap
13. Nut, M8
14. Lockwasher, M8

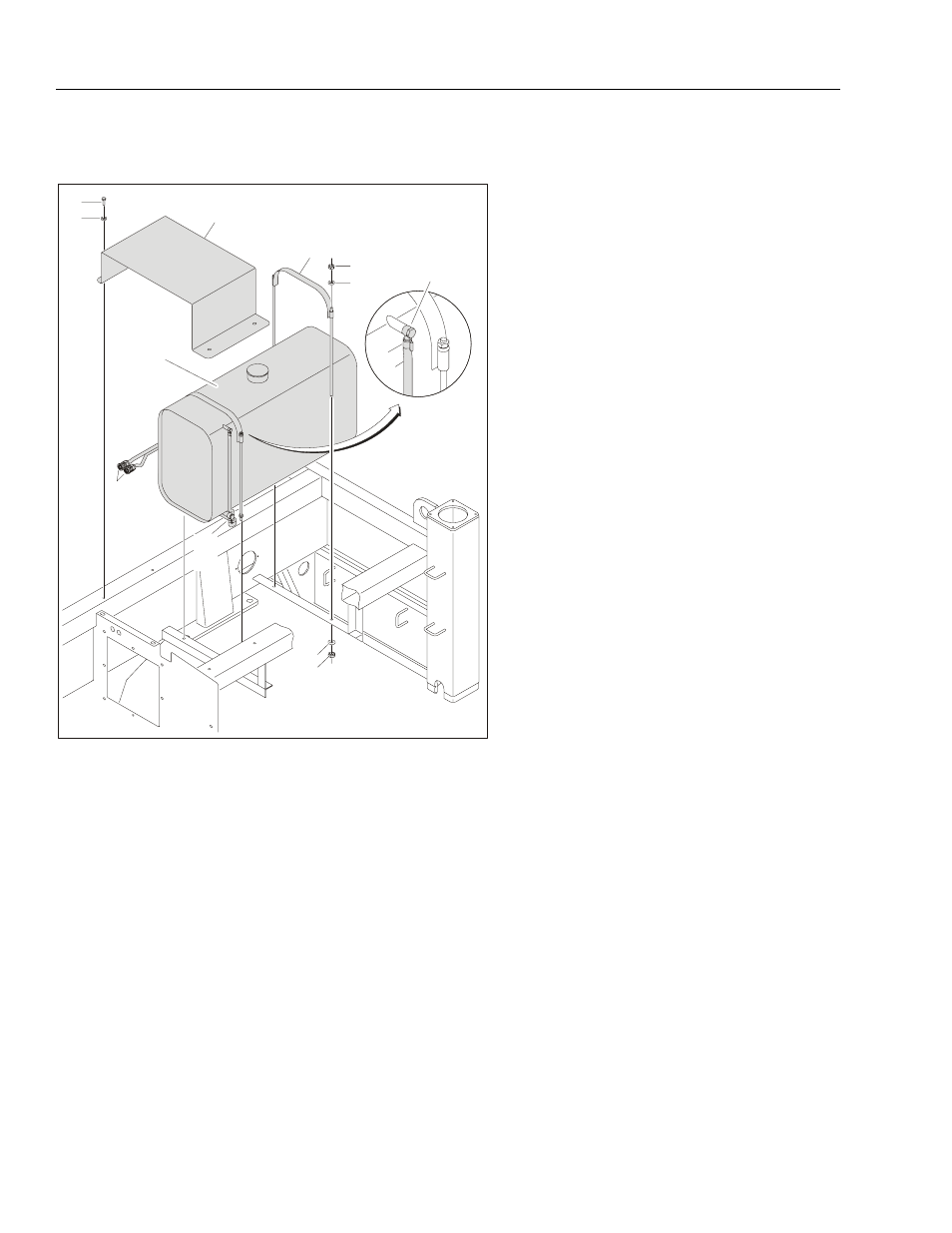

Figure 3-22. Fuel Tank Removal
