SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121322 – JLG Lift – 3-19
Exhaust Pipe Assembly
NOTE: In the event any or all exhaust piping needs repaired
or replaced follow the below steps. Refer to Figure 3-
17., Exhaust Pipe Assembly.
1. Loosen the Exhaust Clamp (2) located on the muf-
fler (2).
2. Slide the Exhaust Elbow (3) out of the muffler.
3. Loosen the Exhaust Clamp (4).
4. The exhaust elbow can now be removed.
5. Remove the Exhaust Flex Pipe (5) by loosening the
Exhaust Clamp (6). Slide the pipe out of the Tailpipe
(7).
6. The tail pipe can be removed by unscrewing the Bolt
(8) connecting it to the engine tray.
Installation:
1. Follow the steps in reverse order to assemble the
exhaust system. Take care to securely tighten the
exhaust clamps.
1
2
3
4
5
6
7
8
1. Muffler
2. Exhaust Clamp
3. Exhaust Elbow
4. Exhaust Clamp
5. Exhaust Flex Pipe
6. Exhaust Clamp
7. Tailpipe
8. Bolt (M10 x 20mm) and Lockwasher (M10)

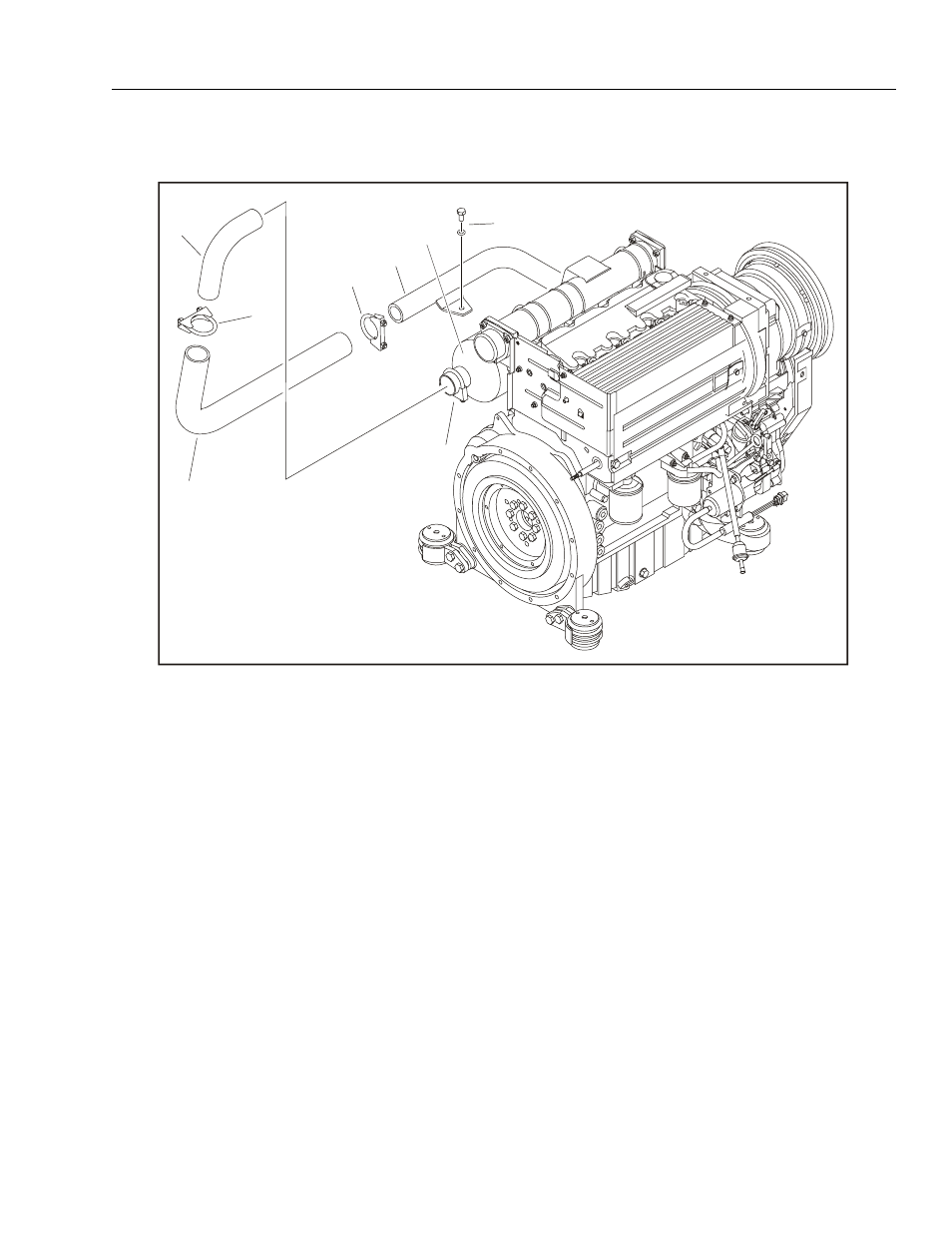

Figure 3-17. Exhaust Pipe Assembly
