SECTION 2 - GENERAL
3121322 – JLG Lift – 2-5
2.4 OPERATOR MAINTENANCE
TO AVOID PERSONAL INJURY, USE SAFETY PROPS FOR ALL MAINTENANCE REQUIRING PLATFORM TO BE ELEVATED.
NOTE: Be sure to lubricate like items on each side.
NOTE: Recommended lubricating intervals are based on machine operations under normal conditions. For machines used in
multi-shift operations and/or exposed to hostile environments or conditions, lubrication frequencies must be increased
accordingly.
Operate hydraulic functions through one complete cycle before checking hydraulic oil level in tank. Oil should be visible
in ADD sight window on hydraulic tank. If oil is not visible, add oil until oil is visible in both ADD and FULL sight windows
on tank. Do not overfill tank.
1. Arm Pins
2. Outrigger Cylinders
3. Tie Rod Ends
4. Spindles
5. Lift Cylinder
6. Upper Slide Pads
7. Lower Slide Pads
8. Engine Compartment (opposite side not shown)
9. Fuel Tank (opposite side not shown)

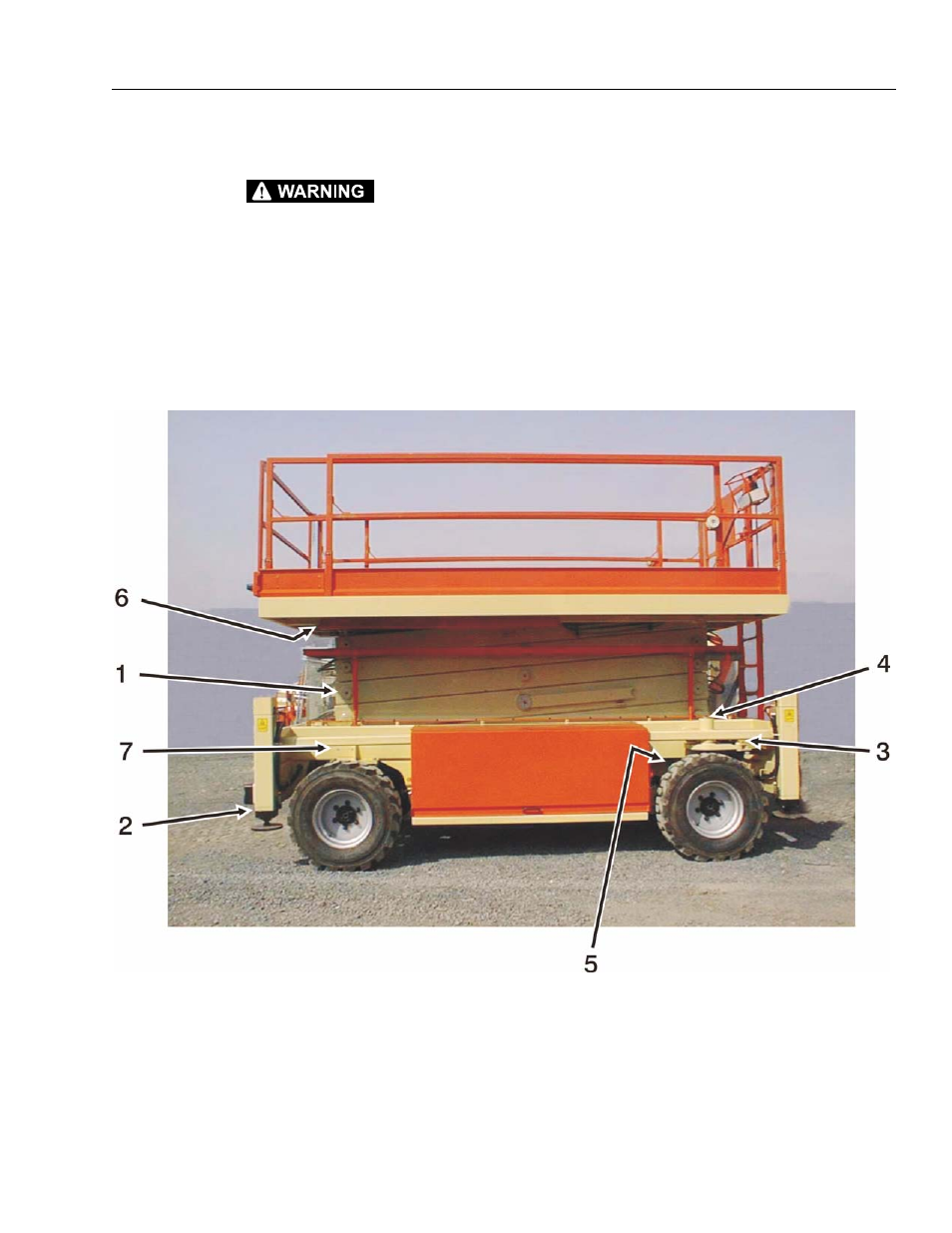

Figure 2-1. Lubrication Diagram
