SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-10 – JLG Lift – 3121322
3.4 REAR AXLE ASSEMBLY
NOTICE
SECURE THE MACHINE AND AXLE WELDMENT WHEN SERVIC-
ING/REMOVING. THE AXLE WEIGHS APPROXIMATELY 325 LBS
(147.5 KG).
NOTE: Remove the tire and wheel assemblies before
removing the axle. (Refer to Figure 3-2., Wheel
Assembly Removal).
Removal:
1. Remove the eight Bolts (2), Nuts (3), and sixteen
Hardened Washers (4) attaching the Rear Axle
Weldment (1) to the frame.
2. Carefully remove the Rear Axle.
Installation:
1. Raise Axle to the frame.
2. Secure the axle to the frame using the eight Bolts
(2), Nuts (3), and sixteen Hardened Washers (4).
3. Torque Bolts to 450 lb ft (610 Nm) dry.
1
2
3
4
4
1. Rear Axle Weldment
2. Bolt, M20 x 65mm
3. Nut, M20
4. Hardened Washer

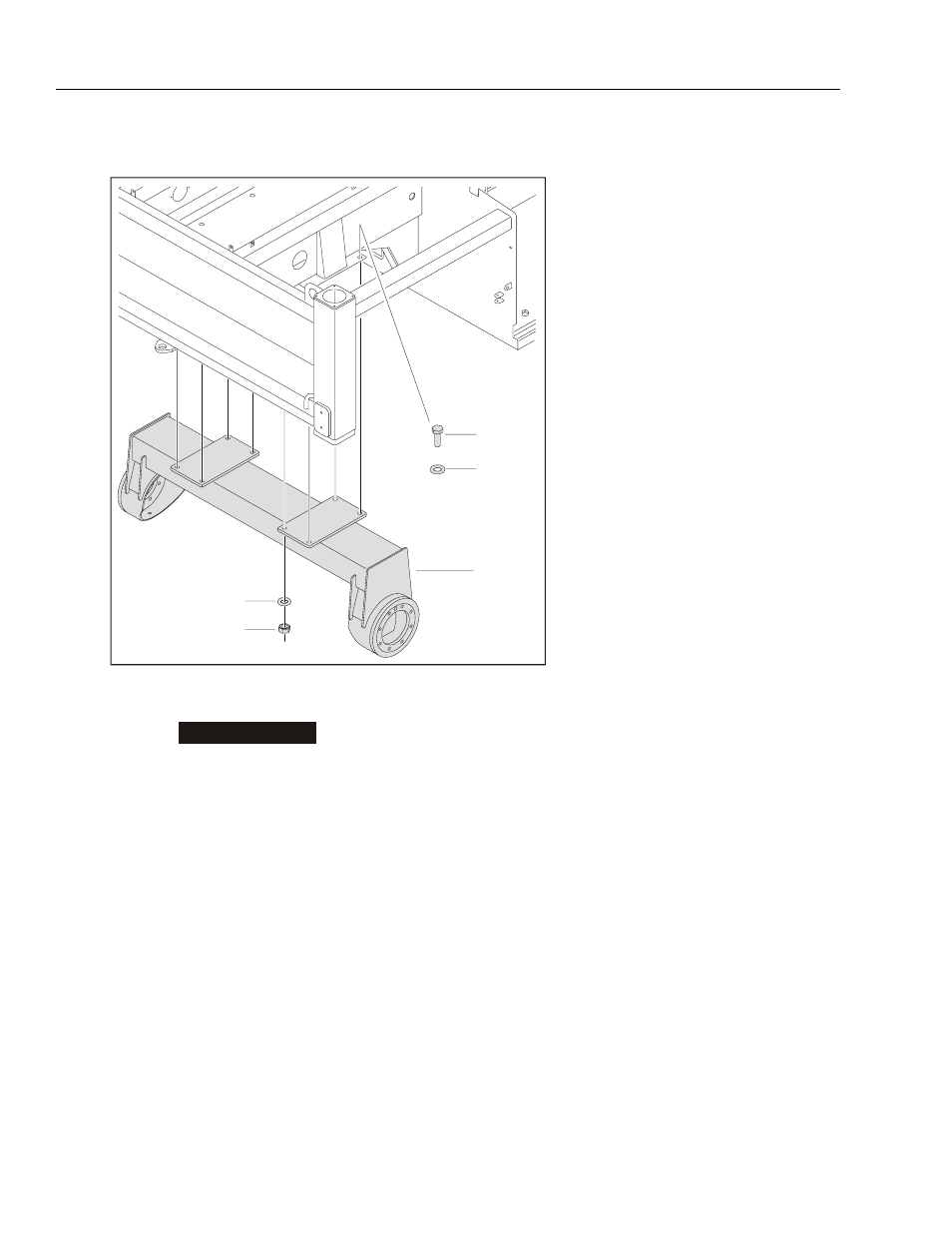

Figure 3-7. Rear Axle Removal
