EASI-CLADDER™
2 – JLG Accessory Manual – 3128112
DESCRIPTION
The Cladding device is designed to position panels weighing up to 100 kg
(220 lbs.). The main components are two frames installed on the scissor
deck. The frames are supporting the weight of the panels and transfer all
vertical forces directly to the machine’s deck. The frames are stabilized by
C-shaped brackets attaching them to the vertical posts of the platforms’
handrail system.
SPECIFICATION

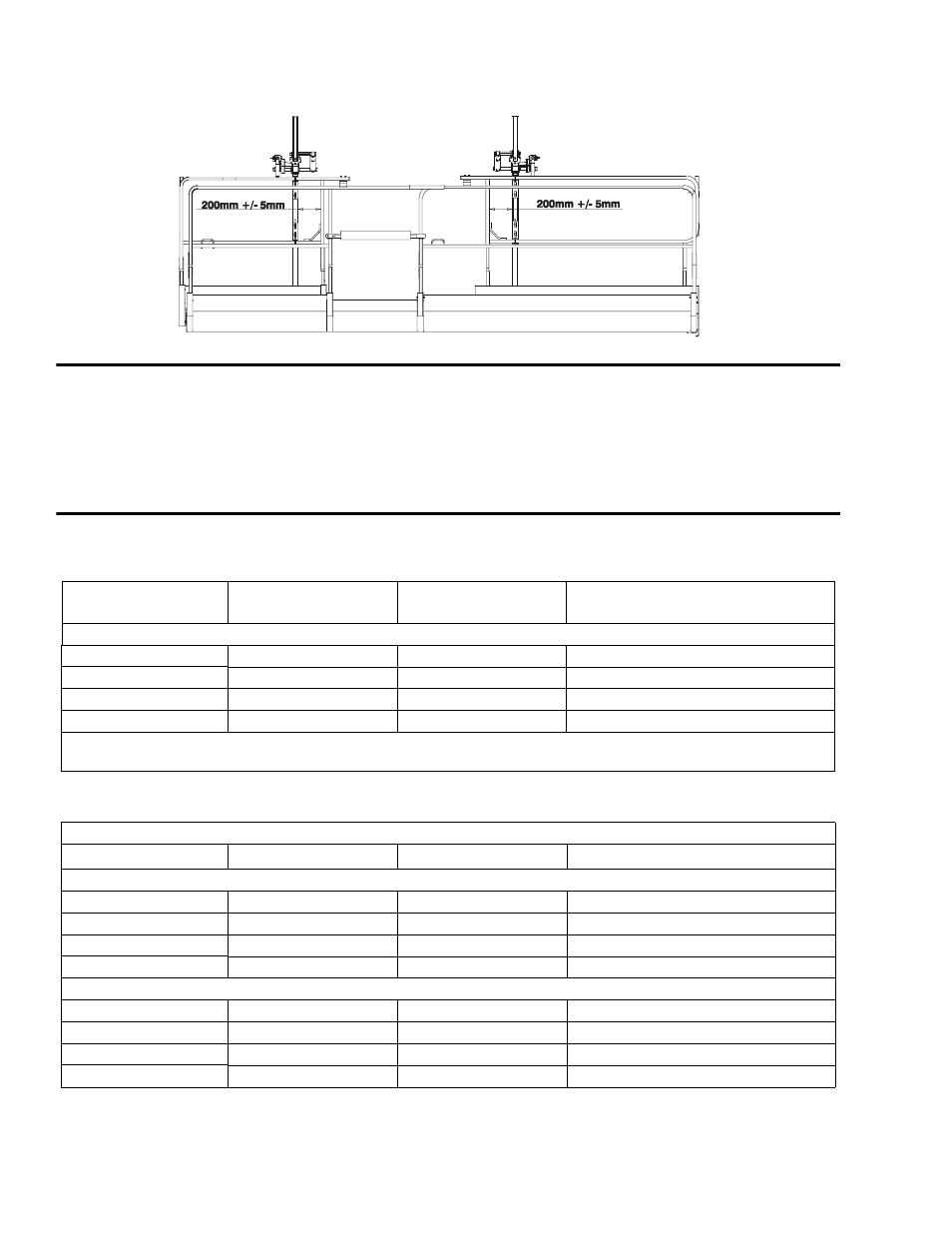

Figure 1. Easi-Cladder™ Dimensions
Table 1. - Platform: Ratings
3394RT
(with Dual Extension Deck)
4394RT
(with Dual Extension Deck)
500RTS
(with Mega Deck)
Max. Capacity
Persons 2 2 2
Wind 12.5 m/s 12.5 m/s 12.5 m/s
Outriggers Required Required Required
Max. Platform Capacity * 905kg - 135kg = 770kg 565kg - 135kg = 430kg 680kg - 135kg = 545kg
* Derated 135kg (297 lb.) due to weight of cladding accessory mounted on platform deck.
Table 2. - Cladding Device Specifications
Requirement/Function 3394RT 4394RT 500RTS
Panel
Max. Panel Length 8m 8m 8m
Max. Panel Width 1.25m 1.25m 1.25m
Lifting Weight 100kg 100kg 100kg
Storage Weight 340kg 340kg 340kg
Hydraulic Power Requirements
Pressure 1000psi 1000psi 1000psi
Flow 2gpm 2gpm 2gpm
Control Functions Tether Control Box Tether Control Box Tether Control Box
Deck Extension Dual Dual Dual, Powered
