Electrical System

9.14

G5-18A/2505

9.5.4

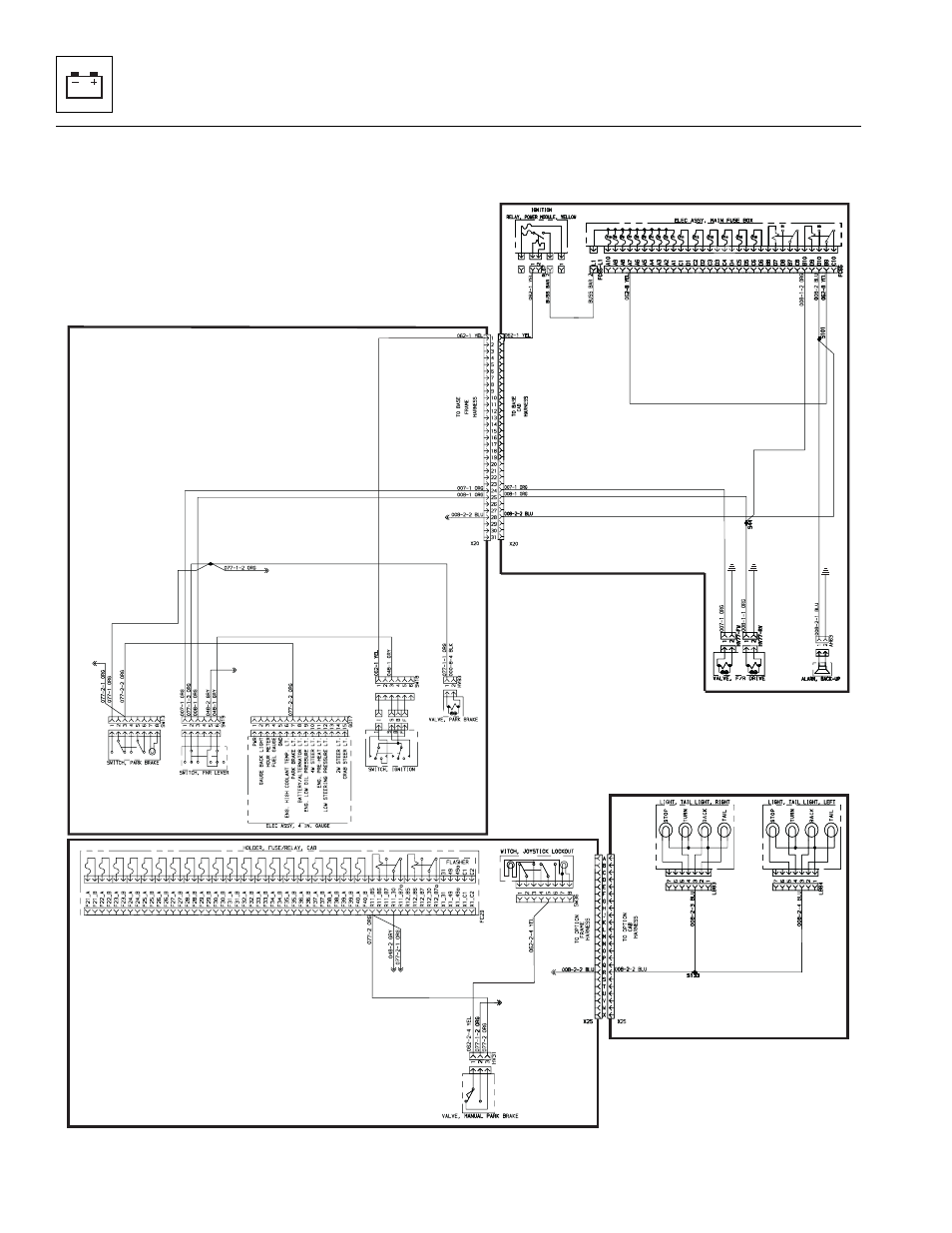

Drive Circuit Breakdown

MY2320

OPTIONAL FRAME HARNESS

CAB HARNESS “B”

1

2 3

4

FRAME HARNESS

CAB HARNESS “A”

1

2

3

4

(CE ONLY)
