SECTION 5 - OPTIONAL EQUIPMENT
3121211
– JLG Lift –
5-11
AND STRADDLE END SUPPORTS ARE BEING DISASSEMBLED FROM SIDE
RAILS. (SEE FIGURE 5-5.)
5. Carefully lower the side lifting rails (and AM machine)
evenly, by turning the winch handle at each straddle
end support counter-clockwise until the AM machine
is fully lowered to the ground on it’s caster wheels.
Straddle and AM Machine Disassembly
Once the AM machine is lowered on its castor wheels and out-
riggers are removed, reverse steps on "Mounting - Straddle
Extension to AM Machine", steps 1 through 12.

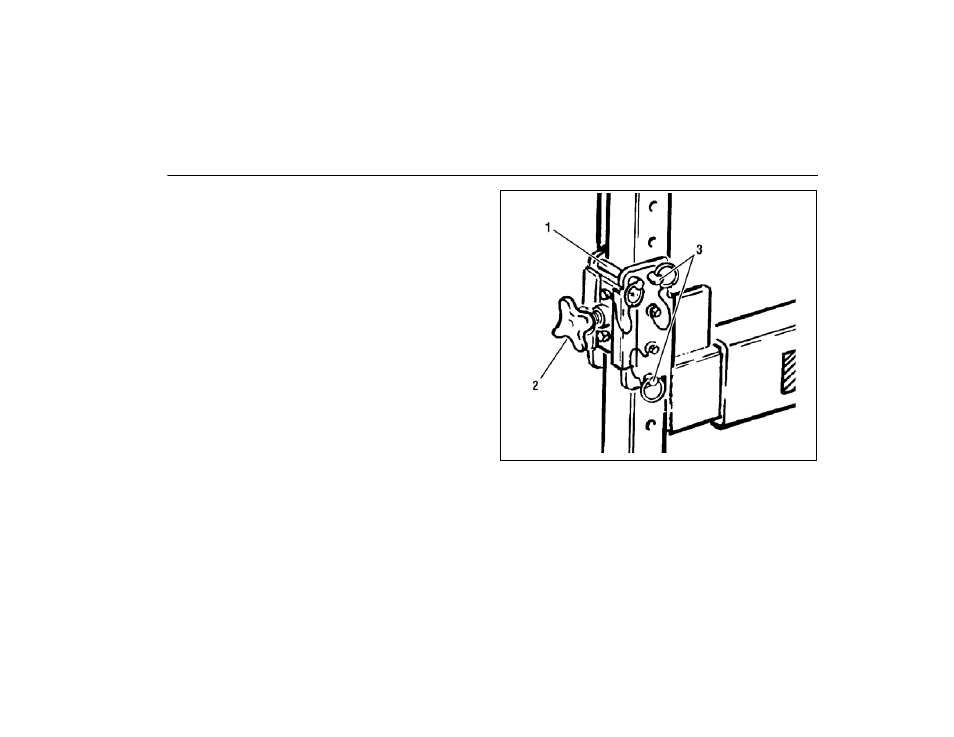

Figure 5-5. Side Lifting Rail - Quick Release Pins.
1. Adjust Bracket End Cap Pin (* SEE WARNING)
2. End Cap Adjust Screw
3. Side Rail Quick-Release Pins
