The key used to activate the safety device bypass is lead‑sealed on the side of the electri‑
cal components compartment near the battery.
Force the lead‑sealing to remove it. After using the safety device bypass a JLG after‑sales
centre must be contacted in order to verify the causes that determined the necessity to use
the safety device bypass and to lead‑seal the key.
The safety device electronic control board records every time the safety device bypass key
is activated along with the movements made during these operations.
The safety device bypass system is used to move the machine with a higher load than the
limit load allowed inside the basket; the overload alarm is nonetheless displayed and the
beeper warns the operator of the dangerous conditions. This device must only be used by
expert personnel trained on how to use the machine, while the end user, who does not
fully know the machine’s operating principles, is not allowed to use this device.
5.5 E
MERGENCY POSITION CONTROLS
‑ SELECTION PANEL, EMERGENCY STOP, START AND EMERGENCY CONTROL
ENABLING SWITCH

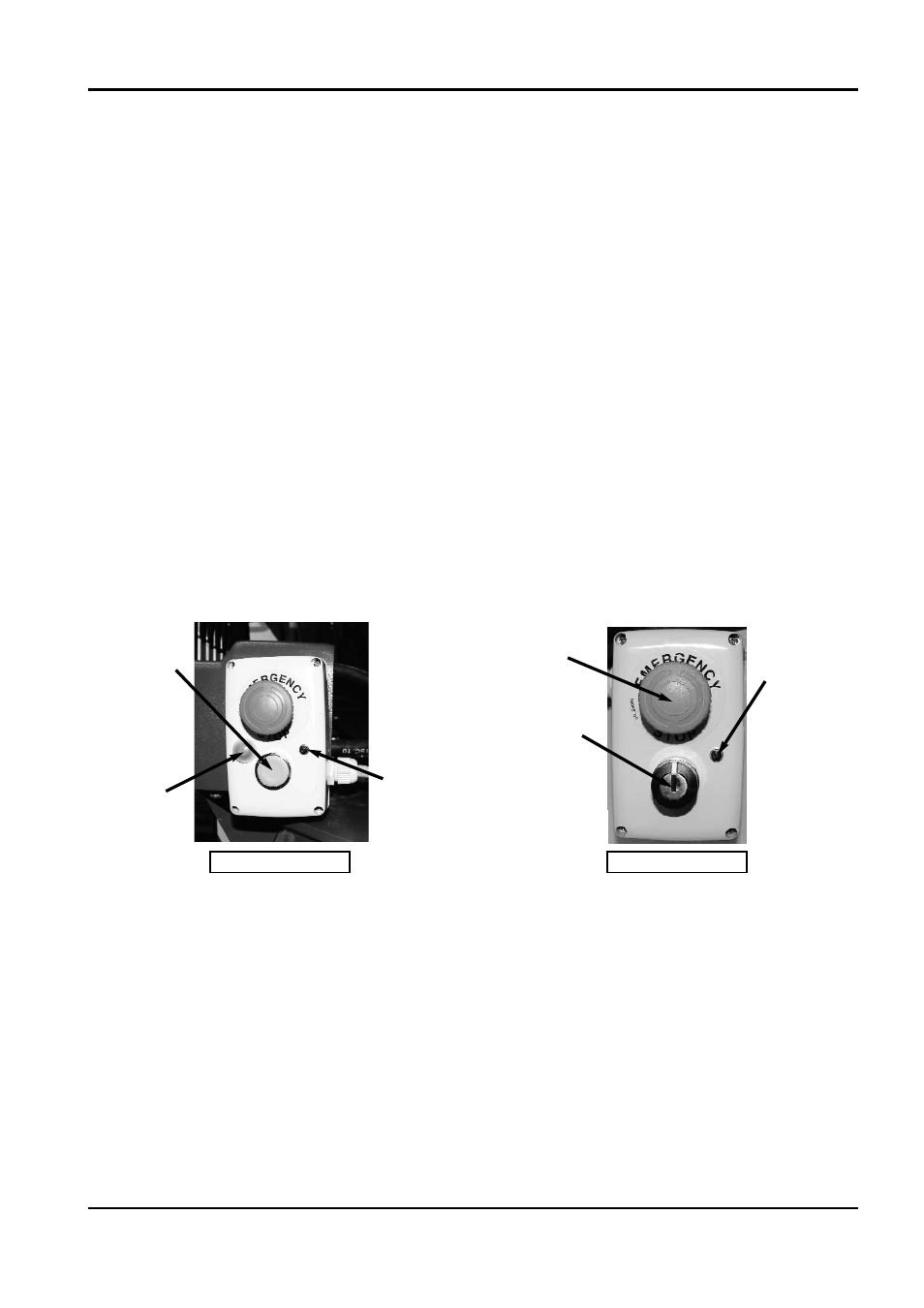

This panel houses the following controls:
‑ Emergency STOP. If pressed stops the motor and stops the machine. To make the machine
operational again, the button must be turned and released.
‑ START BUTTONS. Enable the selected engine/motor to be started, provided that all the
emergency stop buttons have been released and all the conditions necessary for the start of
the engine/motor are satisfied; if the engine/motor is on, pressing the corresponding button
will stop it.
In the Lithium version is present a two‑position key for selecting the control position.
1_The central (neutral) position of the key enables operation of the primary remote con‑
trol in the basket.
2_Turning the key clockwise and holding it in position enables the emergency control
position, starts the electric motor.
X17JR0420113
BOOM LIFT MODELS X17J
JLG
61
AERIAL PART
MOVEMENTS
ENABLED
LIGHT
E
NGINE
START
E
LECTRIC
MOTOR
START
AERIAL PART
MOVEMENTS
ENABLED
LIGHT
E
MERGENCY
STOP
E
LECTRIC
MOTOR START
THERMIC MOTOR
LITHIUM MOTOR
