Product description
Eppendorf Reference ® 2
English (EN)
9

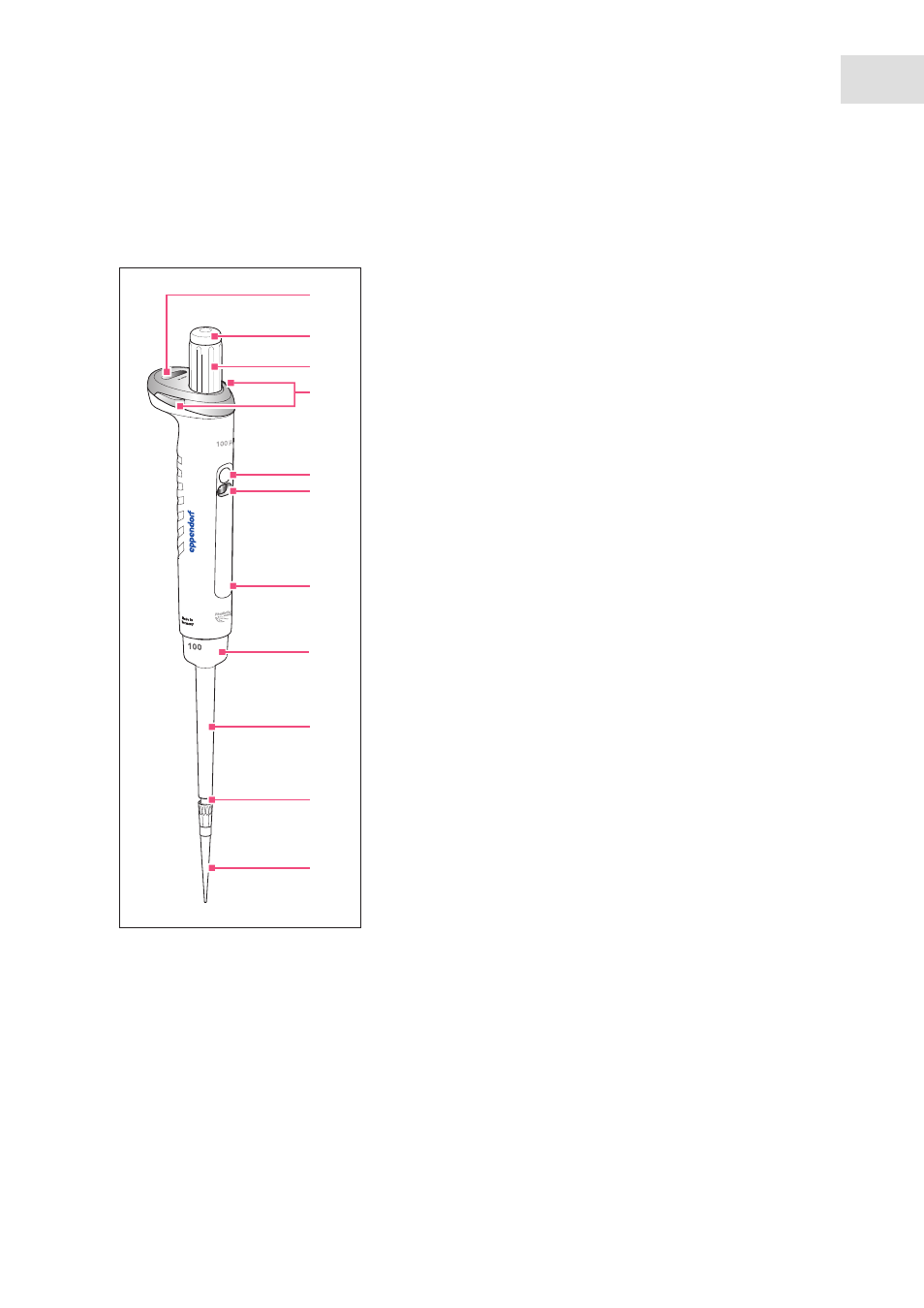

2.3 Main illustration
2.3.1 Reference 2 single-channel
1 Volume display
Volume display with four-digit counter for variable pipettes.
Decimal places are marked by a hyphen.
2 Color code
The color code on the control button and the trays of the
matching epT.I.P.S. pipette tips are in the same color.
3 Control button
Sets and dispenses the volume, and ejects the pipette tip.
4 Volume locking button
Locks the control button volume setting ring. Press a volume
locking button at the left or right to set the volume.
5 User adjustment
Upon delivery, the opening is sealed using a gray plastic
adjustment seal (ADJ).
6 User adjustment display
Set to "0" before delivery.
7 Serial number
Serial number for upper and lower parts.
8 Nominal volume
9 Ejector sleeve
Ejects the pipette tip. Press the control button down all the
way.
10 Spring-loaded tip cone
The spring-loading action optimizes the force required to
attach and eject tips (no spring-loaded action for 2
mL to
10 mL). For 2 mL to 10 mL pipettes, an exchangeable
protection filter in a sleeve is located in the tip cone.
11 Pipette tip
We recommend using epT.I.P.S.
