Eppendorf Multipette M4 - Manual

Short Instructions
Eppendorf Multipette
® M4 / Repeater ® M4
English (EN)
These short instructions are a supplement to the operating manual and not a substitute.
Please read the operating manual before using the Multipette M4 / Repeater M4 for the first time!

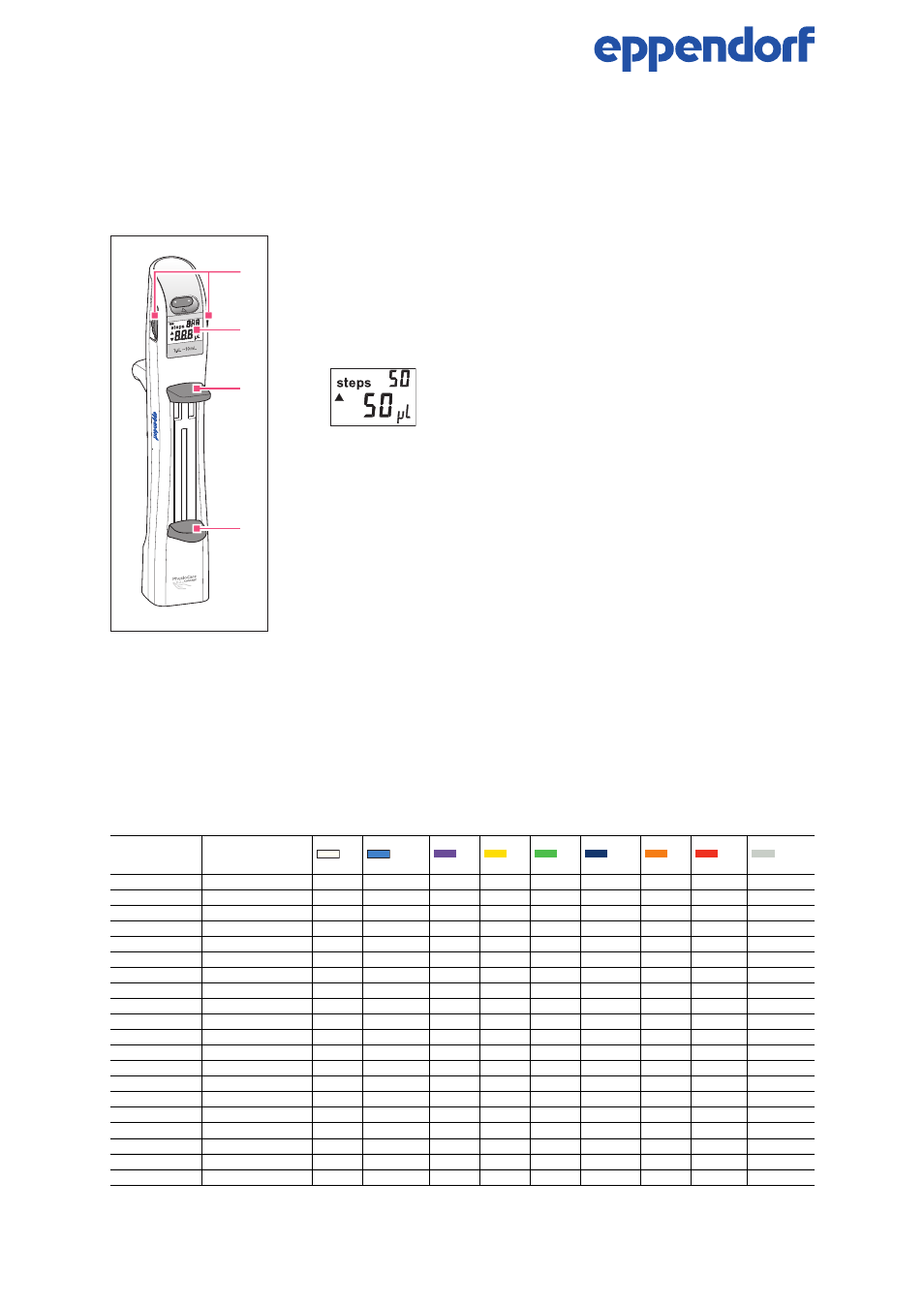

General view
Adjustable dispensing volumes for Combitip advanced
Multipette M4 / Repeater M4 can only be operated with the Combitip advanced!
1 Selection dial
There are 20 volume selection settings available.
2 Display
• switches on automatically when a Combitip advanced is inserted
• switches off automatically after an interval of non-use
• switches on if moved with inserted Combitip advanced
Example of a display with the Combitip advanced inserted:
steps during volume selection
Display of the possible dispensing steps for a Combitip advanced that has
been filled to capacity.
steps during dispensing
Display of the dispensing steps that have been carried out.
Counting the steps up to 999, if Combitip advanced is filled to capacity
repeatedly.
Counting re-starts, when Combitip advanced has been emptied.
Volume
1 μL – 10 mL. Depends on the selection dial setting and the
Combitip advanced
3 Operating lever
For dispensing the liquid or for ejecting the empty Combitip advanced.
Push filling lever down before ejecting Combitip advanced with
operating lever.
4 Filling lever
For filling or emptying the Combitip advanced.
Selection dial Dispensingsteps 0,1 mL
white
0,2 mL
light blue
0,5 mL
purple
1,0 mL
yellow
2,5 mL
green
5,0 mL
blue
10 mL
orange
25 mL
red
50 mL
light gray
· 100 1,0 µL 2,0 µL 5,0 µL 10 µL 25 µL 50 µL 0,1 mL 0,25 mL 0,5 mL
1 50 2,0 µL 4,0 µL 10 µL 20 µL 50 µL 100 µL 0,2 mL 0,50 mL 1,0 mL
· 33 3,0 µL 6,0 µL 15 µL 30 µL 75 µL 150 µL 0,3 mL 0,75 mL 1,5 mL
2 25 4,0 µL 8,0 µL 20 µL 40 µL 100 µL 200 µL 0,4 mL 1,00 mL 2,0 mL
· 20 5,0 µL 10 µL 25 µL 50 µL 125 µL 250 µL 0,5 mL 1,25 mL 2,5 mL
3 16 6,0 µL 12 µL 30 µL 60 µL 150 µL 300 µL 0,6 mL 1,50 mL 3,0 mL
· 14 7,0 µL 14 µL 35 µL 70 µL 175 µL 350 µL 0,7 mL 1,75 mL 3,5 mL
4 12 8,0 µL 16 µL 40 µL 80 µL 200 µL 400 µL 0,8 mL 2,00 mL 4,0 mL
· 11 9,0 µL 18 µL 45 µL 90 µL 225 µL 450 µL 0,9 mL 2,25 mL 4,5 mL
5 10 10 µL 20 µL 50 µL 100 µL 250 µL 500 µL 1,0 mL 2,50 mL 5,0 mL
· 9 11 µL 22 µL 55 µL 110 µL 275 µL 550 µL 1,1 mL 2,75 mL 5,5 mL
6 8 12 µL 24 µL 60 µL 120 µL 300 µL 600 µL 1,2 mL 3,00 mL 6,0 mL
· 7 13 µL 26 µL 65 µL 130 µL 325 µL 650 µL 1,3 mL 3,25 mL 6,5 mL
7 7 14 µL 28 µL 70 µL 140 µL 350 µL 700 µL 1,4 mL 3,50 mL 7,0 mL
· 6 15 µL 30 µL 75 µL 150 µL 375 µL 750 µL 1,5 mL 3,75 mL 7,5 mL
8 6 16 µL 32 µL 80 µL 160 µL 400 µL 800 µL 1,6 mL 4,00 mL 8,0 mL
· 5 17 µL 34 µL 85 µL 170 µL 425 µL 850 µL 1,7 mL 4,25 mL 8,5 mL
9 5 18 µL 36 µl 90 µL 180 µL 450 µL 900 µL 1,8 mL 4,50 mL 9,0 mL
· 5 19 µL 38 µL 95 µL 190 µL 475 µL 950 µL 1,9 mL 4,75 mL 9,5 mL
10 5 20 µL 40 µL 100 µL 200 µL 500 µL 1 000 µL 2,0 mL 5,00 mL 10,0 mL
