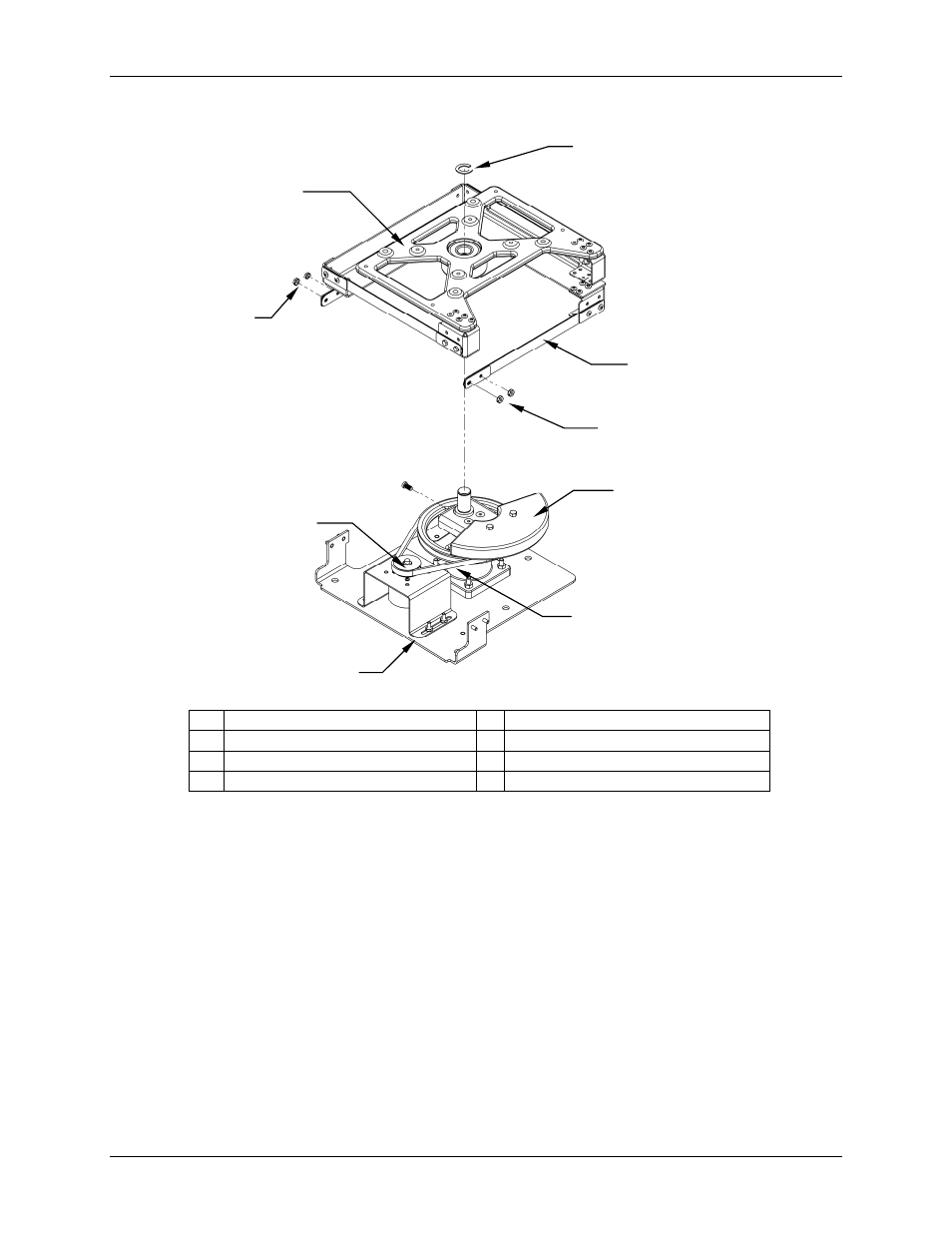

Figure 9: Drive Belt Replacement
1 Upper bearing housing 5 Counterweighted pulley
2 E-ring 6 Drive belt
3 Flexure arm 7 Motor mounting bracket
4 Flexure arm nuts 8 Motor pulley
14. Use the hex wrench to tighten the four hex nuts on the motor mounting bracket.
15. Reinstall the upper bearing housing on the shaft.
16. Reattach the flexure arms to the bearing housing mounting plate with the four nuts
previously removed.
17. Reattach the E-ring to the shaft.
18. Reinstall the platform on the bearing housing with the four Allen head screws
previously removed.
19. Close the shaker lid.
20. Reconnect the power cord to the electrical outlet.
