18
Installation
Top Buret
™
English (EN)
Proceed as follows:
4.3 Mounting the telescopic aspirating tube
The Top Buret conveys the liquid through the telescopic aspirating tube from the
supply bottle. Adjust the length of the telescopic aspirating tube to the bottle
height to empty the bottle completely.
4.3.1 Extending the telescopic aspirating tube
Prerequisites
• The device has been mounted (see p. 15)
• The bottle is larger than the collapsed telescopic aspirating tube
Proceed as follows:
 Push the inner tube out of the outer tube until the tube length corresponds to
the length of the bottle.
4.3.2 Shortening the telescopic aspirating tube
Prerequisites
• The device has been mounted (see p. 15)
• The bottle is smaller than the collapsed telescopic aspirating tube

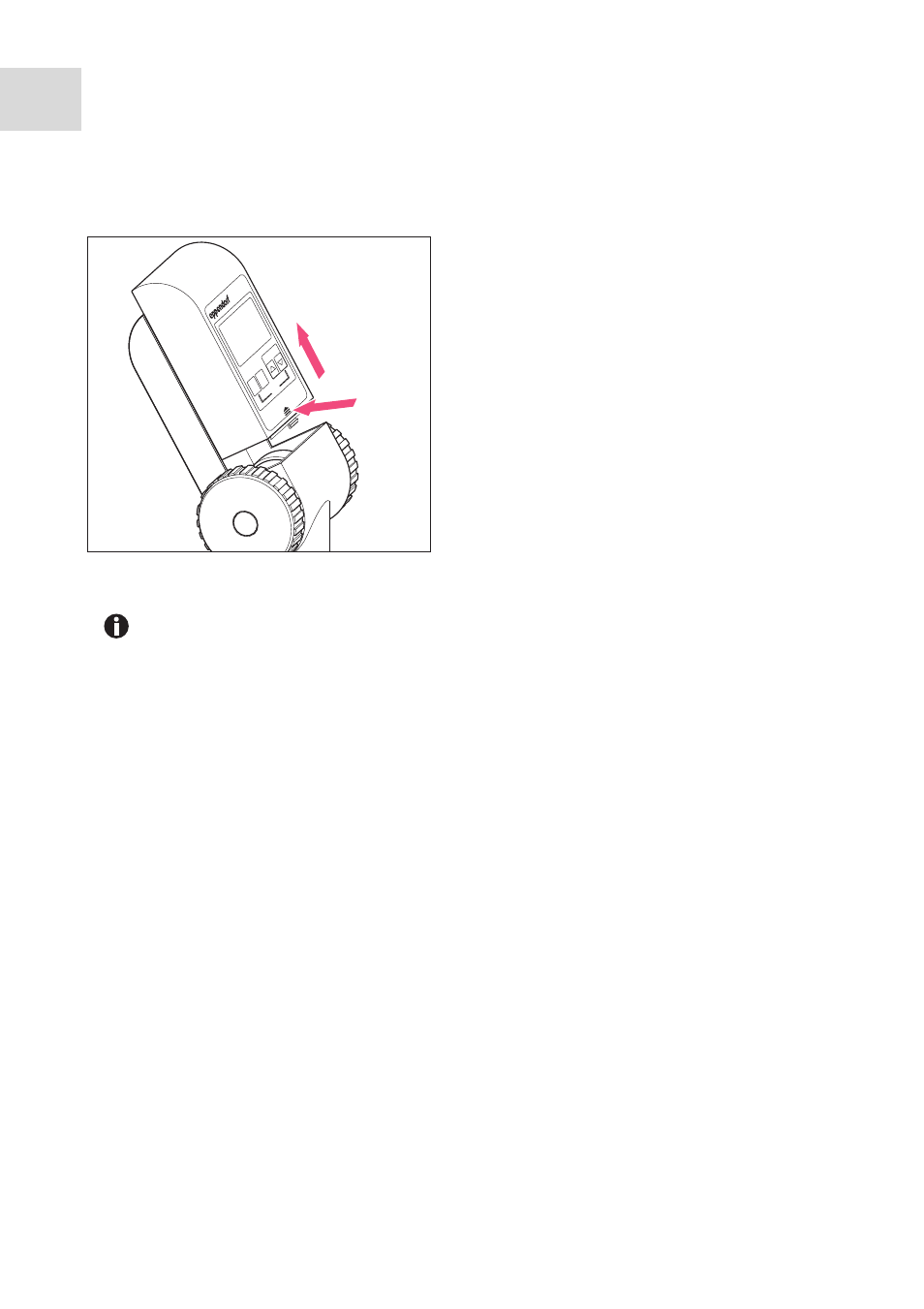

Abb. 4-2: Removing the control panel
Fig. 4-2: Removing the control panel
1. Press and hold the opening symbol.
2. Slide the control panel upwards and
remove it.
3. Remove the battery compartment lid
at the back of the control panel.
4. Insert the batteries.
5. Replace the battery compartment
lid.
6. Attach the control panel and slide it
downwards until it engages.
To remove the batteries, proceed in the reverse order.
