Eppendorf Top Buret M / H - Manual (Page 16)

16
Installation
Top Buret
™
English (EN)

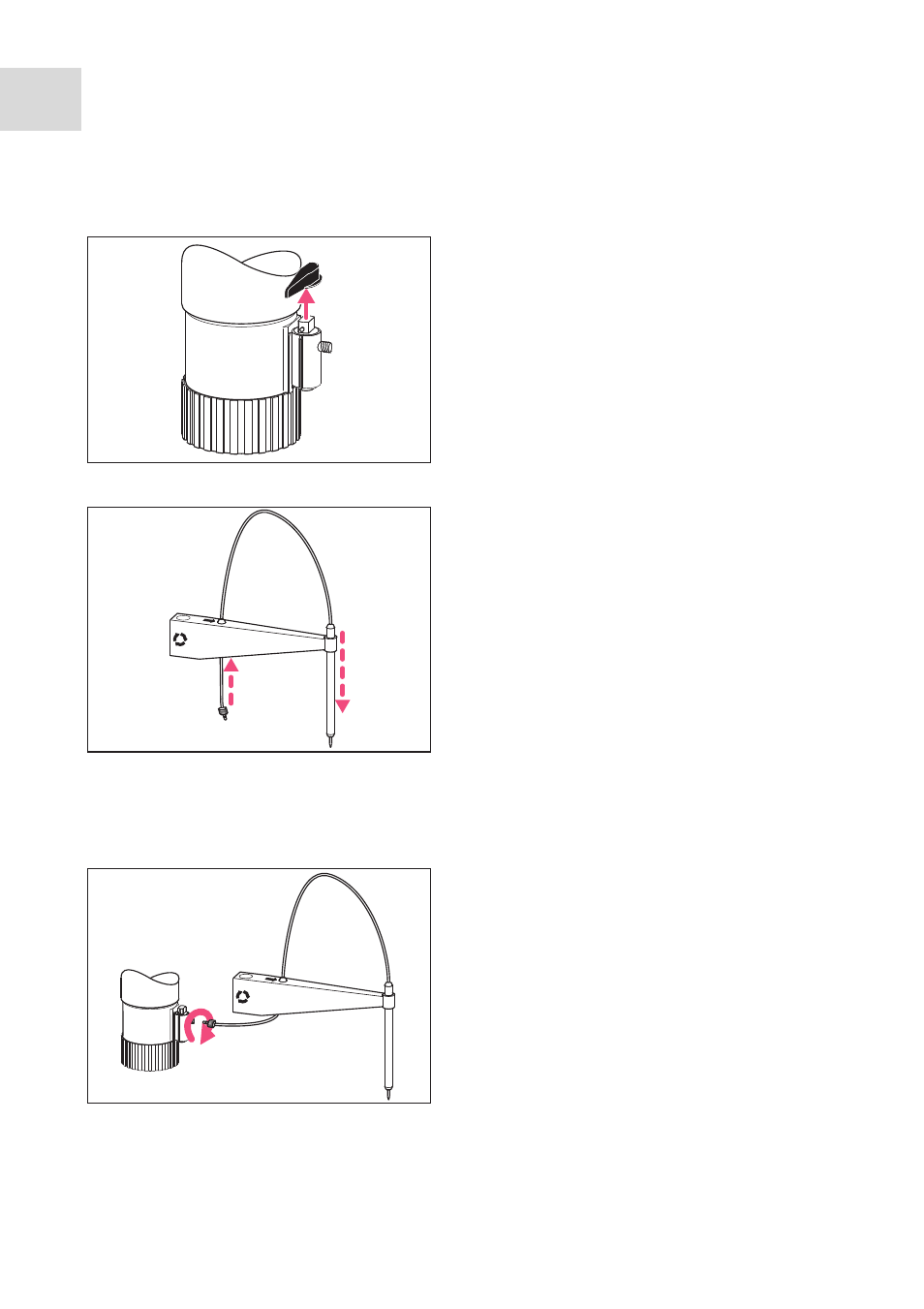

To assemble the device, proceed as follows:
1. Rotate the discharge valve toggle to
the deairing position. Remove the
toggle upwards.
2. The canula holder has gripping nubs
on the inside for the canula at one
end. Insert the canula holder into
the canula arm mount ensuring that
the gripping nubs are below.
3. Guide the free end of the discharge
tube through the hole in the canula
arm from below.
4. Insert the free end of the discharge
tube into the canula holder from
above until it protrudes slightly at
the bottom.
5. Screw the discharge tube with the
knurled nut onto the discharge
valve.
