Product description
FemtoJet ® 4x
English (EN)
9
2.3 Exemplary set-up of a microinjection system

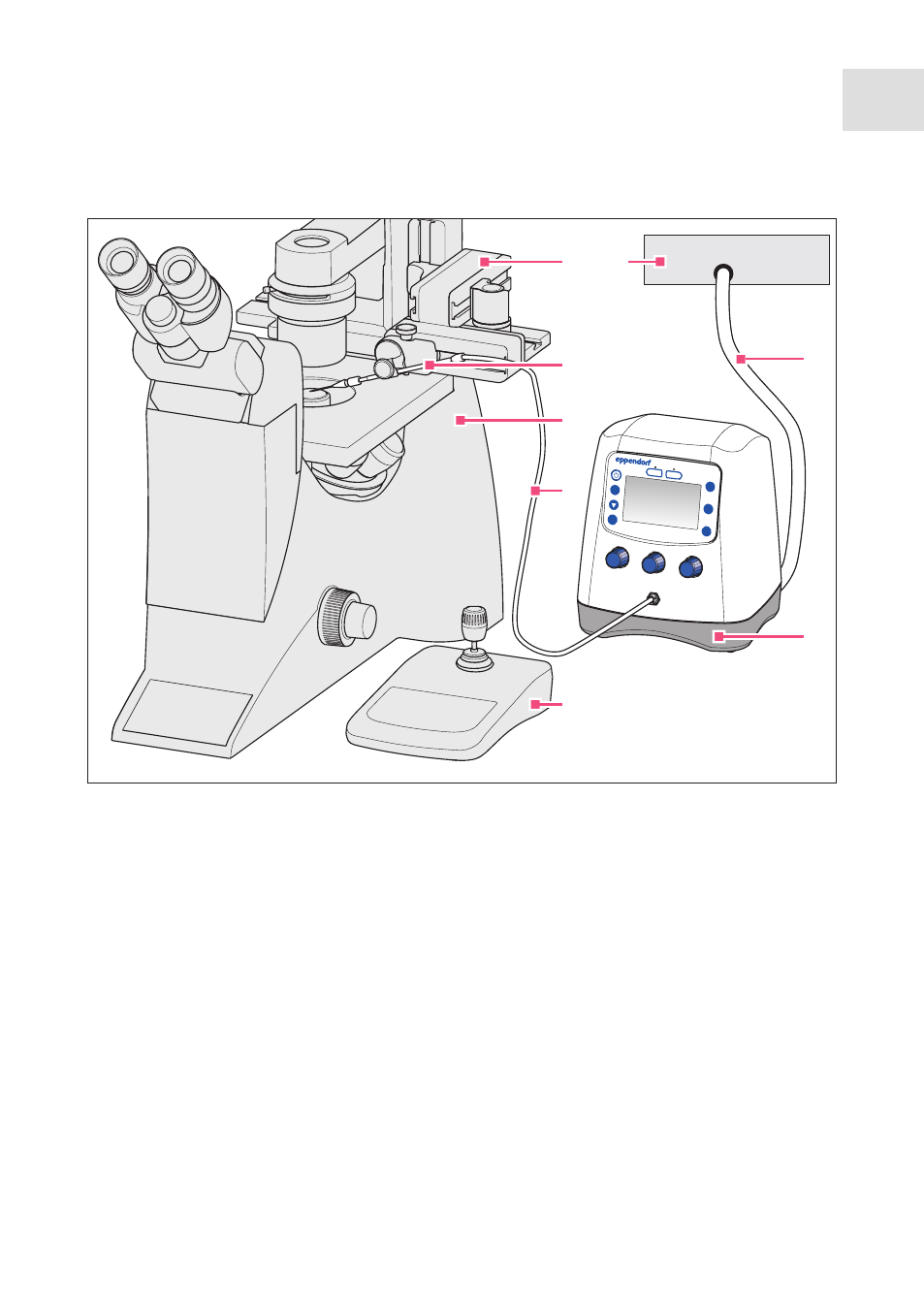

Abb. 2-1:Microinjection system with FemtoJet 4x
Fig. 2-1: Microinjection system with FemtoJet 4x
1 Micromanipulator InjectMan 4
2 Universal capillary holder with
capillary
3 Inverse microscope
4 Injection tube
5 Control board InjectMan 4
6 External pressure supply
Compressor, compressed gas cylinder or
compressed air supply of domestic
services
7 Pressure tubing
8 Microinjector FemtoJet 4x
FemtoJet
inject
prog 1 prog 2
count
clean
menu
enter
auto man
2
3
4
5
1
8
7
6
