Advance Adapters 716288 User Manual
Clutch slave cylinder bracket

ADVANCE ADAPTERS INC.
P/N: 716288
P.O. Box 247, 4320 Aerotech Center Way
Paso Robles, CA 93447
PAGE 1 OF 1
Telephone: (800) 350-2223
Fax: (805) 238-4201
Page Rev. Date:
07-26-06
SPECIAL NOTE:
The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will void
any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend that
you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a service
manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive dealerships
and parts stores.
KIT CONSISTS OF:
No.
Qty
Part No.
Description
1.
1
716139
WEDGE
2.
1
716194
SLAVE CYLINDER PUSH ROD
3.
1
716288-BLK
BRACKET ASSEMBLY
4.
2
723704
LOCK WASHER 3/8" PLATED
5.
2
723719
3/8"-24 JAM NUT
6.
2
723725
H.H.C.S. 3/8"-16 x 1-3/4" PLT G2
7.
1
723735
WASHER
INSTALLATION INSTRUCTIONS:
This bracket is designed for use on Chevy engine conversions in vehicles that were originally equipped with a hydraulic
clutch. This bracket utilizes a stock Toyota slave cylinder (Toyota Part No. 31470-60022) and hose (Toyota Part No.
96920-34305 - AA Part No. 716119). When using this slave cylinder, the push rod may have to be shortened to
accommodate different styles of throw out arms. There may be some variations in the style of the Chevrolet bellhousing,
and because of this we have included a spacer and washer for the lower hole on the bracket.

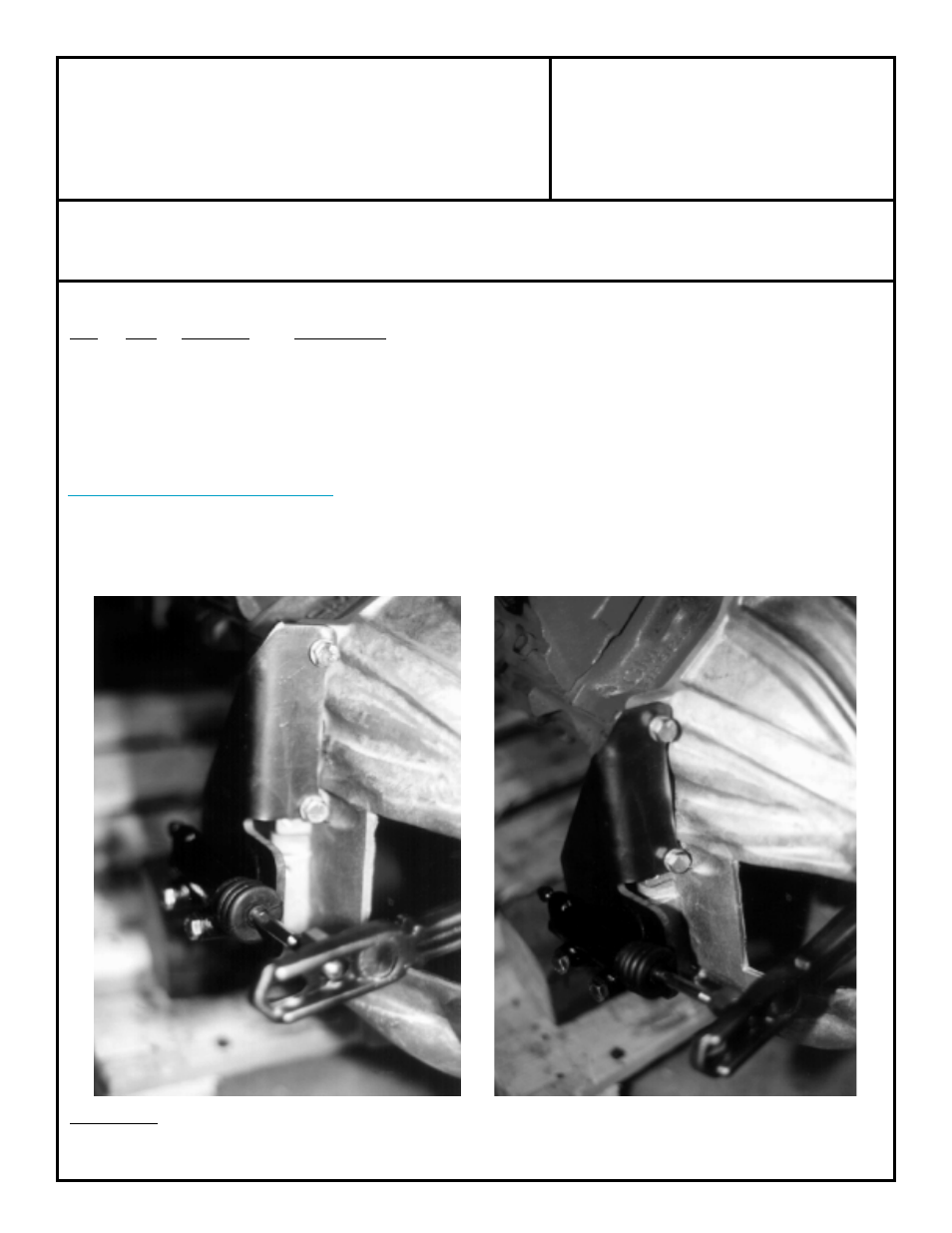

CLUTCH SLAVE CYLINDER BRACKET
