Advance Adapters 716287 - Manual

ADVANCE ADAPTERS INC. P/N: 716287
P.O. Box 247, 4320 Aerotech Center Way
Paso Robles, CA 93447
PAGE 1 OF 1
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 01-15-07
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will void
any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend that
you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a service
manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive dealerships
and parts stores.
KIT CONSISTS OF:
No. Qty Part No. Description
1. 1 716039 SPACER
2. 1 716287-BLK BRACKET ASSEMBLY
3. 2 723704 LOCK WASHER 3/8" PLATED
4. 2 723724 H.H.C.S. 3/8"-16 x 1-3/4" PLT G2
5. 1 723735 WASHER
CLUTCH SLAVE CYLINDER BRACKET FOR
TOYOTA LAND CRUISER CONVERSIONS
INSTALLATION INSTRUCTIONS:
This bracket is designed for use on a Toyota Land Cruiser V8, Chevy
engine conversions in vehicles that were originally equipped with a
hydraulic clutch, and early Jeeps switching to a hydraulic linkage.
This bracket utilizes a stock Toyota slave cylinder (Toyota Part No.
31470-60022), and Toyota hose (Part No. 96920-34305 -
AA Part
No. 716119 ). The slave cylinder and hose for Jeep vehicles are P/N
716116 & 716130 , used with the 716118 master cylinder). When
using these slave cylinders, the push rod may have to be shortened to
accommodate different styles of throw out arms. There may be some
variations in the style of the Chevrolet bellhousing, and because of this
we have included a spacer and washer for the lower hole on the
bracket.

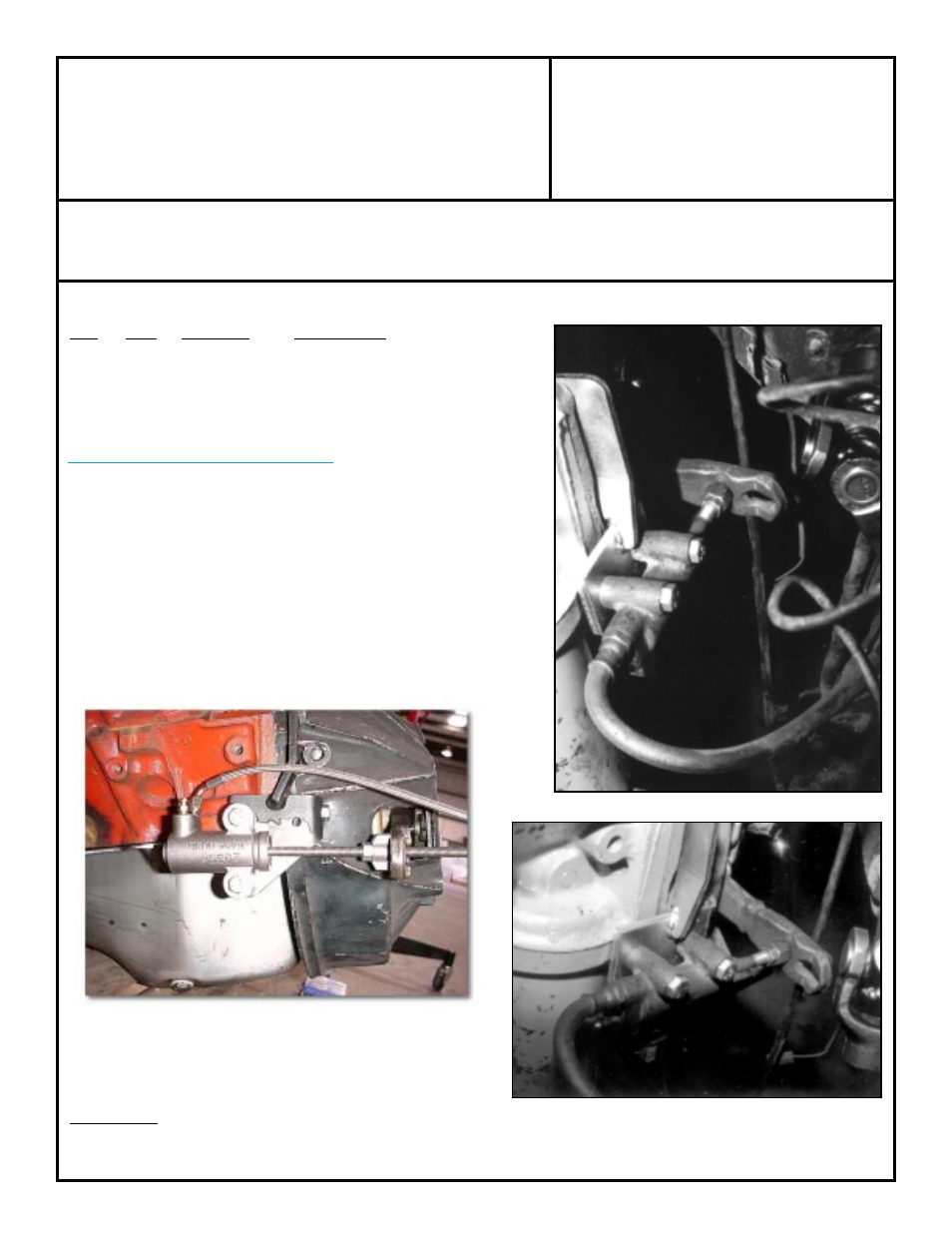

P/N 716116 Installed
Land Cruiser Slave Cylinder (AA P/N 716119)
